Question

3. (15) When measuring the flow through a 6-in diameter pipe, a piezometer measures 20.0 psi and a pitot tube measures 20.5 p

pls help

engineering Civil-Engineering

Answer 1

Answer #1

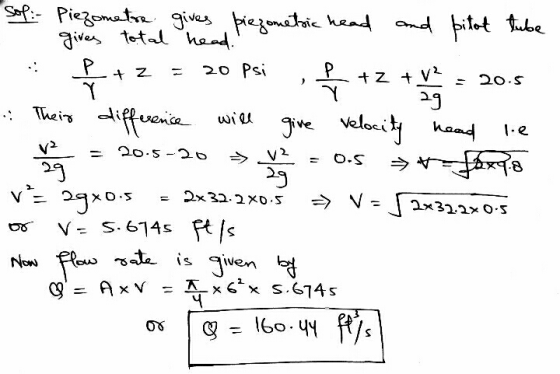

Sop: - Piezometre gives piezometric head and pitot tube I gives total head 3 +z = 20 psi ļ +2 + x = 20.5 . Their difference w

Answer 2

Similar Homework Help Questions

piezometer and a pitot tube are put in a 1 ft diameter pipe repectivley full of...

piezometer and a pitot tube are put in a 1 ft diameter pipe repectivley full of water. there is a pressure diffence of 0.4 ft increase. what is the Q
Find the velocity of the flow of an oil through pipe when the difference of mercury...

Find the velocity of the flow of an oil through pipe when the difference of mercury level in a differential U - tube manometer connected to the two tapping of the pitot tube is 100 mm. The coefficient of the pitot tube = 0.98, the specific gravity of oil and mercury are 0.8 and 13.6 respectively. Density of water 1000 kg/m3 Select one: O a. 5.62 m/s O b.5.49 m/s O c.5.22 m/s O d. 4.88 m/s O e. 4.98...
Problem #6 Water flows upward through a vertically positioned pipe measuring 3 cm in diameter. Wall...

Problem #6 Water flows upward through a vertically positioned pipe measuring 3 cm in diameter. Wall shear stress on the pipe is 2 N/m2 . Calculate the pressure drop across 1 m length of the pipe.

Water flows through the pipe contraction shown in Figure 1. For the given difference in piezometer...

Water flows through the pipe contraction shown in Figure 1. For the given difference in piezometer levels, determine the flow rate in L/s. Assume that: H=0.80 m, DI = 8 cm, oil D2 = 5 cm & S.G. of oil = 0.7 -- --3 Figure 1
#3 BONUS is flowing upwards through a pipe system. The inside diameter of the narrow tube...

#3 BONUS is flowing upwards through a pipe system. The inside diameter of the narrow tube is flow rate in gpm of the 2 inches and of the larger tube is 4.25 inches. For this system, determine the luid 24 in Water
3. (a) For the flow of a real fluid (p, u) in a rough (e measures losses lead to a pressure gradient along the pipe - A...

3. (a) For the flow of a real fluid (p, u) in a rough (e measures losses lead to a pressure gradient along the pipe - Ap/L. Determine an expression for the pressure roughness) horizontal pipe energy Ap ( L pV2 gradient for a pipe of diameter - d, flowing with a mean velocity - V. pVd'd d (b) If for a 75mm diameter pipe flowing with water at 0.25m/s the measured pressure drop is 120Pa/m What will be the...

Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1....

Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1.0 m through a sudden expansion K, Note: For sudden expansion: Assess the pressure rise across this expansion. i. (9 marks) Explain how there can be a pressure rise across the expansion when i there is an energy loss (K, # 0) (2 marks) D2-1.0m Di-0.50 m Q= 15 m/s (1) (2) Figure 6:...
flow in 6 inch diameter pipe is stagnated at the head of a very fine bore...

flow in 6 inch diameter pipe is stagnated at the head of a very fine bore tube as shown in the figure below. The water rises to a level 12 inches above the pipe. Another pressure tap in the side wall of the pipe records a water column 2 inch high.The flow rate in the pipe is most nearly(ft3/sec?)
Determine the mass flow rate of water through a pipe with a diameter of 3.3 cm...

Determine the mass flow rate of water through a pipe with a diameter of 3.3 cm when speed at which water travels through the pipe is 1.5 m/s. kg/s

Water flows through a Venturi meter with a pipe diameter of 10.0 cm and a constriction...

Water flows through a Venturi meter with a pipe diameter of 10.0 cm and a constriction diameter of 5.6 cm. The U-tube manometer is partially filled with mercury. Find the flow rate of the water in the pipe of 10.0 cm diameter if the difference in the mercury level in the U-tube is 3.0 cm. Answer in L/s
