Homework Answers

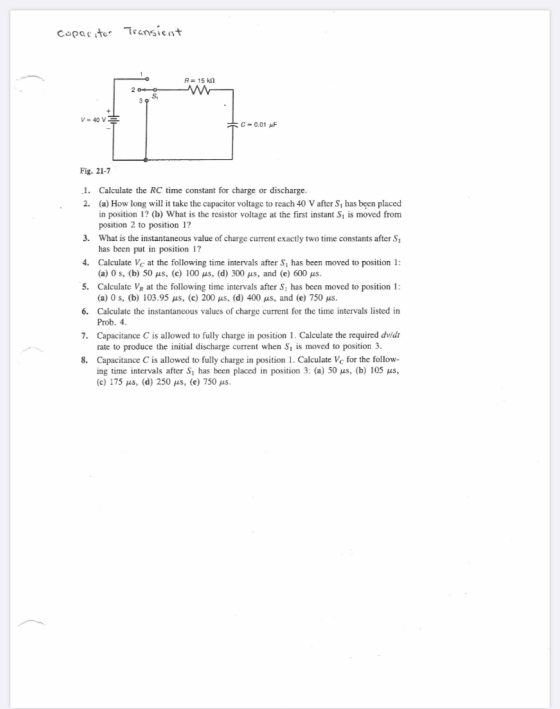

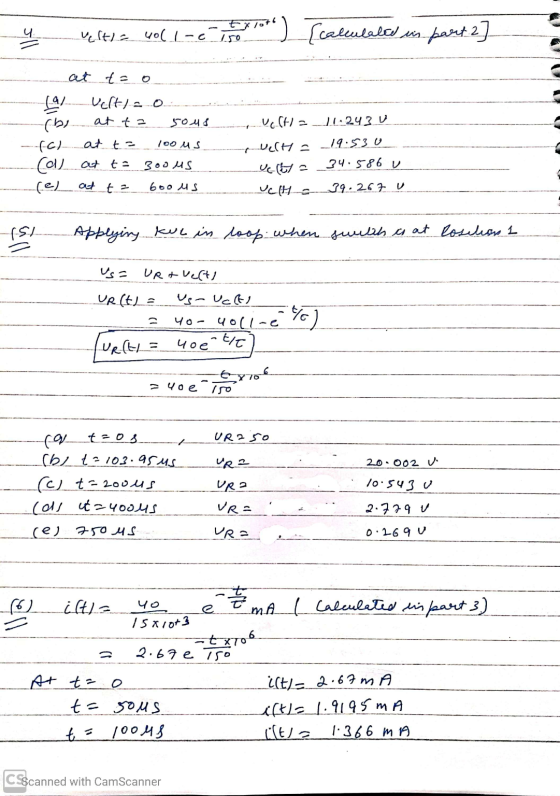

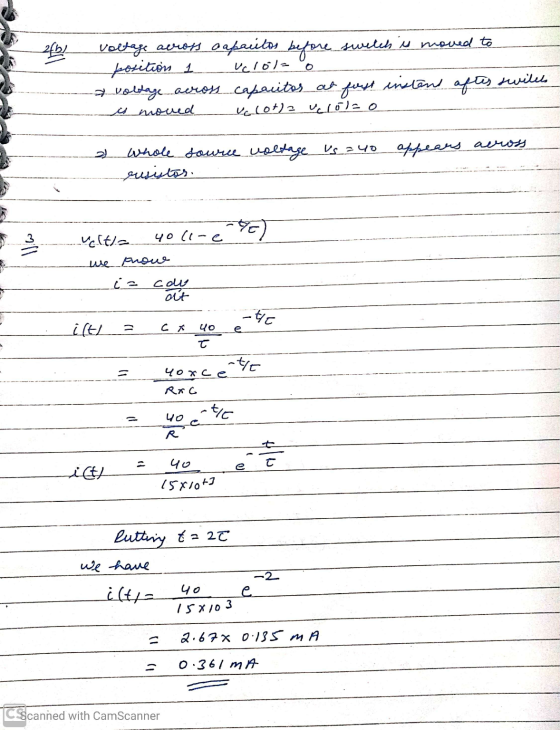

![EX/ u velty - vol 1-0 150 calculated in part 2] --_-at tao ------ 191_Veltl=0 (be at ta sous velti = 11.243 v fol at t= 10ous](http://img.homeworklib.com/questions/a223adb0-464e-11eb-9d7f-77bedda49aba.png?x-oss-process=image/resize,w_560)

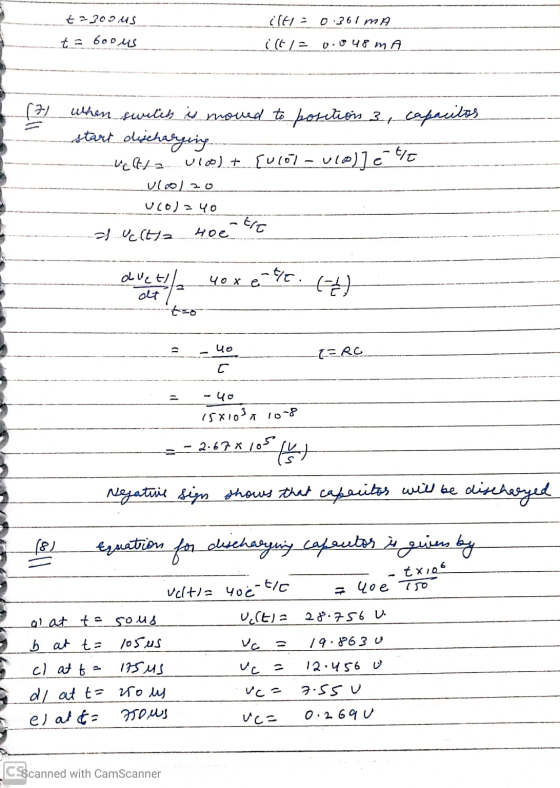

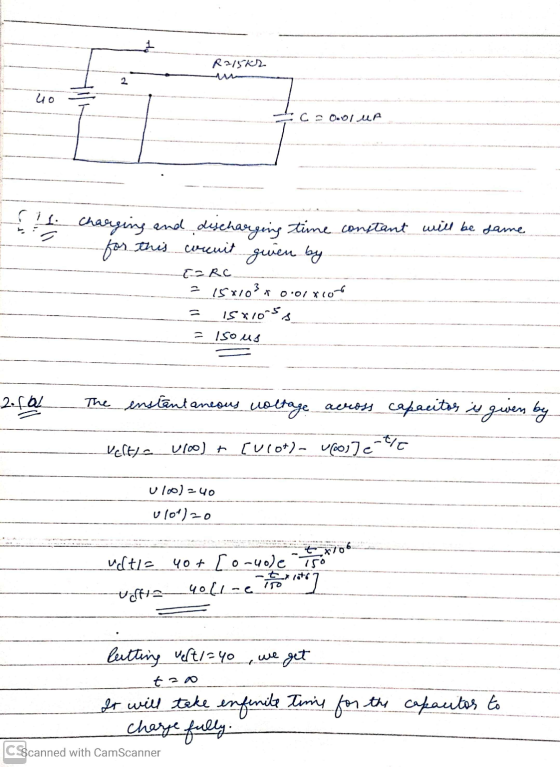

Exponential equation are obtained for charging and discharging circuit. Hence it will take infinite time for capacitor to charge or discharge
Any further query regarding any step can be resolved in the comment section
