Homework Answers
Add Answer to:

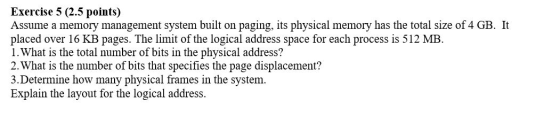

Exercise 5 (2.5 points) Assume a memory management system built on paging, its physical memory has...
Exercise 6.4.1: Parameters of paging and segmentation. A memory system employs both paging and segmentation: The...
Exercise 6.4.1: Parameters of paging and segmentation. A memory system employs both paging and segmentation: The logical address size is 32 bits. Page size is 512 words. The segment table contains 213 entries. (a) What is the size of w? (b) What is the maximum number of pages per segment?
Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size...
Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size of 210 bytes; 216 pages of logical address space. How many bits are in a logical address? How many bytes in a frame? How many bits in the physical address specify the frame? How many entries in the page table?
Consider a computer system that uses a paging system. The memory contains 16 frames, each frame...
Consider a computer system that uses a paging system. The memory contains 16 frames, each frame can accommodate 512 memory locations (size of frame = 512). The page table is as follows: Page Number 0 1 2 3 4 5 6 7 Frame Number 5 3 10 0 2 9 11 14 What are the physical addresses for the following logical addresses? Show your work Logical Address Physical Address 2345 1024 6780
Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size...
Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size of 210 bytes; 216 pages of logical address space. How many entries in the page table? How many bits in each page table entry? Assume each page table entry contains a valid/invalid bit.
1. Consider a simple paging system with the following parameters: 232 bytes of physical memory; page...
1. Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size of 210 bytes; 216 pages of logical address space. How many bits are in a logical address? How many bytes are in a frame! How many bits in the physical address specify the frame? How many entries are in the page table? How many bits are in each page table entry? Assume each page table entry contains a valid/invalid bit. 2. Consider a...
Consider a logical address space of 512 pages with a 4-KB page size, mapped onto a...
Consider a logical address space of 512 pages with a 4-KB page size, mapped onto a physical memory of 256 frames. How many bits are required in the logical address? How many bits are required in the physical address?
Given a virtual memory configuration with: • 4 TB virtual memory space • 32 GB physical...
Given a virtual memory configuration with: • 4 TB virtual memory space • 32 GB physical memory space • 16 KB page size How many bits are needed for the virtual address? Choose... How many bits are needed for the physical address? Choose... How many bits in the address correspond to page offset bits? Choose... - How many bits will the virtual page number (VPN) be? Choose... - How many bits will the physical page number (PPN) be? Choose... →...
Address Translation Question [8 points] Suppose a computing system uses paging with a logical add...
Address Translation Question
[8 points] Suppose a computing system uses paging with a logical
address of 24 bits and a
physical address of 32 bits. The page size is 4KB. Answer each of
the following. If an answer is a power of 2, you can leave it in
the form of a power of 2. ...
2. [20 points] Memory address translation and TLB performance [8 points] Suppose a computing system uses paging with a logical address of 24 bits...
OPERATING SYSTEMS 1. Given six memory partitions of 100 MB, 170 MB, 40 MB, 205 MB,...
OPERATING SYSTEMS 1. Given six memory partitions of 100 MB, 170 MB, 40 MB, 205 MB, 300 MB, and 185 MB (in order), how would the first‐fit, best‐fit, and worst‐fit algorithms place processes of size 200 MB, 15 MB, 185 MB, 75 MB, 175 MB, and 80 MB (in order)? Indicate which, if any, requests cannot be satisfied. Comment on how efficiently each of the algorithms manages memory in terms of fragmentation. 2. Consider a logical address space of 64...
Suppose that we have a computer system using 32-bit logical address and 46–bit physical address. It...
Suppose that we have a computer system using 32-bit logical address and 46–bit physical address. It also uses paging for memory management with a single-level page table organization. The page size is 4K bytes and each page table entry is 32 bits or 4 bytes in size. Calculate the number of bits in each field in the logical address, the size in bytes of the page table, and the number of frames.
Exercise 6.4.1: Parameters of paging and segmentation. A memory system employs both paging and segmentation: The logical address size is 32 bits. Page size is 512 words. The segment table contains 213 entries. (a) What is the size of w? (b) What is the maximum number of pages per segment?
Consider a computer system that uses a paging system. The memory contains 16 frames, each frame can accommodate 512 memory locations (size of frame = 512). The page table is as follows: Page Number 0 1 2 3 4 5 6 7 Frame Number 5 3 10 0 2 9 11 14 What are the physical addresses for the following logical addresses? Show your work Logical Address Physical Address 2345 1024 6780
1. Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size of 210 bytes; 216 pages of logical address space. How many bits are in a logical address? How many bytes are in a frame! How many bits in the physical address specify the frame? How many entries are in the page table? How many bits are in each page table entry? Assume each page table entry contains a valid/invalid bit. 2. Consider a...
Consider a logical address space of 512 pages with a 4-KB page size, mapped onto a physical memory of 256 frames. How many bits are required in the logical address? How many bits are required in the physical address?
Given a virtual memory configuration with: • 4 TB virtual memory space • 32 GB physical memory space • 16 KB page size How many bits are needed for the virtual address? Choose... How many bits are needed for the physical address? Choose... How many bits in the address correspond to page offset bits? Choose... - How many bits will the virtual page number (VPN) be? Choose... - How many bits will the physical page number (PPN) be? Choose... →...
Address Translation Question
[8 points] Suppose a computing system uses paging with a logical
address of 24 bits and a
physical address of 32 bits. The page size is 4KB. Answer each of
the following. If an answer is a power of 2, you can leave it in
the form of a power of 2. ...
2. [20 points] Memory address translation and TLB performance [8 points] Suppose a computing system uses paging with a logical address of 24 bits...
