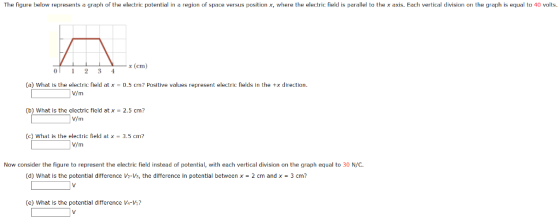

The figure below represents a graph o the electric potential in ㅀ region o space versus...

Question

Question

science physics

Answer 1

Answer #1

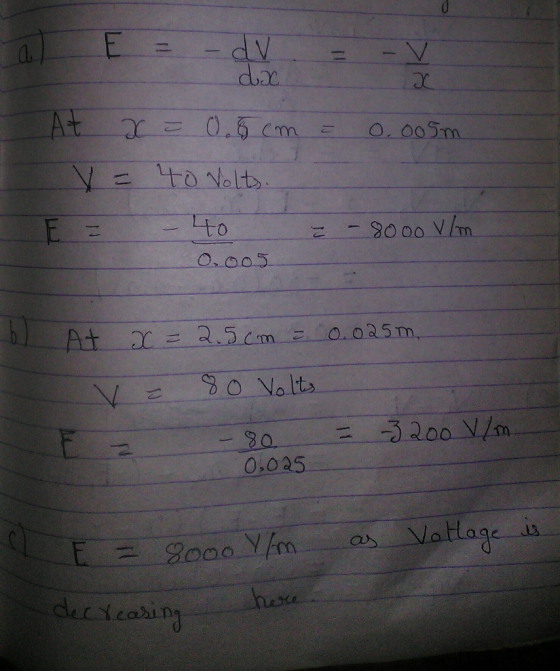

0 O,005 0,025 Matta: 2ooo.YAn--as

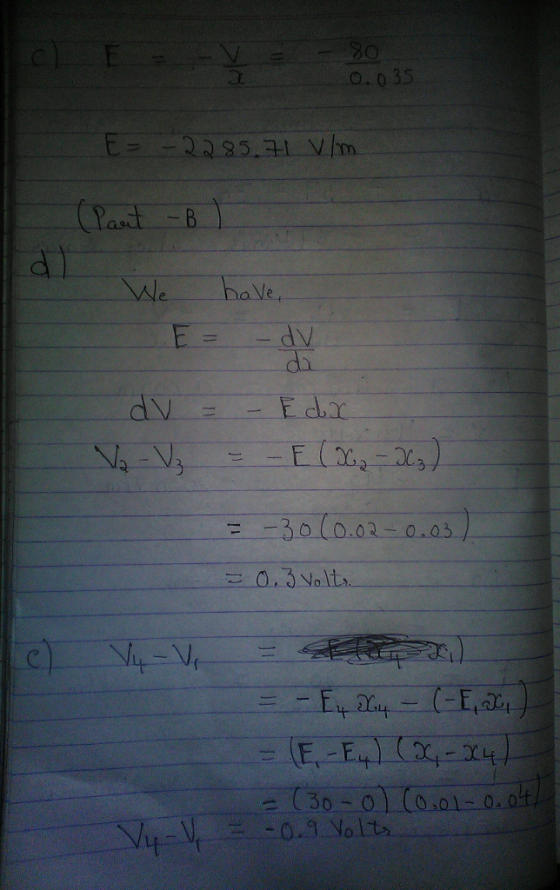

0.0 35 at

Answer 2

Similar Homework Help Questions

Please answer correctly and I will rate highly. I posted yesterday and the person had b,...

Please answer correctly and I will rate highly. I posted yesterday and the person had b, d, and e wrong. thanks The figure below represents a graph o the electric potential in ㅀ region o space versus position x, where the electric ied is paralle to the x axis Fach vertical division on the graph is equal to 40 volts. x (cm) 0 23 4 (a) What is the electric field at 0.5 cm? Positive values represent electric fields in...
The figure shows a graph of electric potential V (in Volts) versus position x (in cm)....

The figure shows a graph of electric potential V (in Volts) versus position x (in cm). If a proton (m = 1.67 x 10-27 kg, q = 1.6 x 10-19 C) is released from rest from X;= 1.5 cm, its speed at Xp= 2.5 cm will be: V (V) 2 3 4 * (cm) O O m/s 15 m/s O 7.2 x 106 m/s O 30 m/s 5.4 x 104 m/s
Problem 2. The picture shows a graph of the electric potential in a region of space...

Problem 2. The picture shows a graph of the electric potential in a region of space where the electric field is parallel to the x-axis. AV(x), Volts 200 a) Draw a graph of Ex versus x. 100 b) Label the maximum and minimum electric field on the y-axis of your graph (including units). .x, m 2 c) If an electron is placed at x = 4 m, what it would do? 3 4 5 6 7 8 -100H A. Stay...

(Figure 1) is a current-versus-potential-difference graph for a cylinder. The plot shows the current as a...

(Figure 1) is a current-versus-potential-difference graph for a cylinder. The plot shows the current as a function of the potential. The potential is measured from 0 to 100 volts on the x axis. The current is measured from 0 to 2 amperes on the y axis. The current increases linearly from the origin to 100 volts and 2 amperes. What is the cylinder's resistance? Part A What is the cylinder's resistance? 1 A) [ 0 / [ °0 50 AV...
Chapter 19 - Electric Potential and Electric Potential Energy 3. Two point charges are of -...

Chapter 19 - Electric Potential and Electric Potential Energy 3. Two point charges are of - 7 uC and - 4 uC are held at the corners of a rectangle as shown is The lengths of the sides of rectangle are 0.015 m and 0.05 m. Assume that the electric potential is defined to be zero at infinity. 3a. Determine the electric potential at point A. A) + 6.0 x 104 v B) - 1.14 x 106 V +7 uc...
The electric potential V in the space between two flat parallel plates 1 and 2 is...

The electric potential V in the space between two flat parallel plates 1 and 2 is given (in volts) by V = 2200x2, where x (in meters) is the perpendicular distance from plate 1. At x = 1.7 cm, (a) what is the magnitude of the electric field and (b) is the field directed toward or away from plate 1?

The electric potential V in the space between the plates of a given vacuum tube is...

The electric potential V in the space between the plates of a given vacuum tube is given by V = (4.50×102) x2, where V is in volts if x, the distance from one of the plates, is in meters. Calculate the magnitude and direction (sign) of the electric field at 2.880 cm.
HELP with last part!! Cant figure it out!! (a) Find the electric potential at points a...

HELP with last part!! Cant figure it out!! (a) Find the electric potential at points a and b for charges of +3.5 nC and -5.2 nC located as shown in the figure. (b) What is the potential difference N for a trip from a to b? (c) How much work must be done by an external agent to move a point charge of +2.50 nC fron a to b? 11.0 cm 11.0 cnm 15.0 cm dl 11.0 cm -5.0 cm...
Figure below gives the electric potential Vas function of x. In which region is the x-component...

Figure below gives the electric potential Vas function of x. In which region is the x-component of the electric field is zero? V 1 2 3 4 5 In regions 1.3 and 5 In regions 2 and 4 In region 3 only. In region 5 only. QUESTION 10 Two spherical conductors of radil, 8.00 cm and ) 4.00 cm are separated by a distance much greater than the radius of either sphere. The spheres are connected by a conducting wire...

Below is a graph of V versus x. Use it to create your own graph of...

Below is a graph of V versus x. Use it to create your own graph of electric field versus x. Make sure to properly label your graph. 100 D50 -50 -100 8 10 2 4 6 0 x (cm)
