Reinforced Concrete

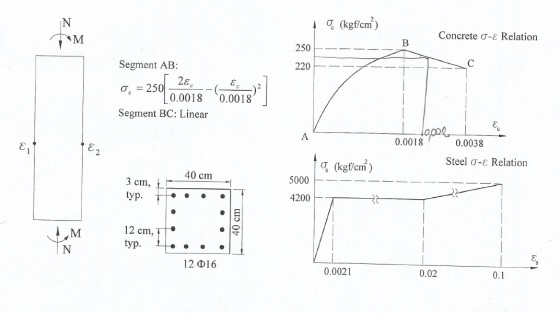

Strain measurements were being taken on two opposite faces of a column during a test.The column is pin supported at each end.At a particular load stage strains measured were,e1=0.002 and e2=0.0035, both being shortening.Compute the axial force,moment and curvature that is corresponding to this load stage.The material stress-strain relations are as given below.Neglect the second order effects.
Homework Answers
Request Answer!
We need at least 9 more requests to produce the answer.
1 / 10 have requested this problem solution
The more requests, the faster the answer.
