Homework Answers
Add Answer to:

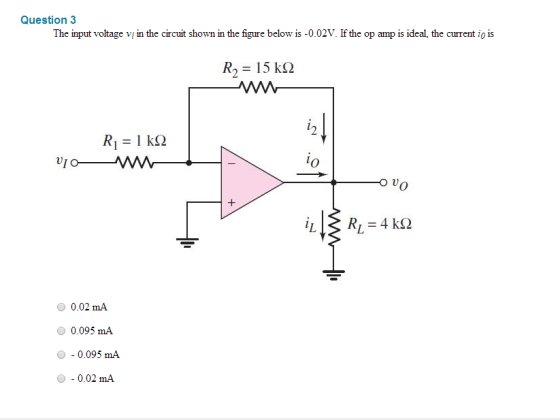

The input voltage v/in the circuit shown in the figure below is -0.02V. If the op...
For the circuit in Figure below, if the op amp is ideal and if the voltage...
For the circuit in Figure below, if the op amp is ideal and if the voltage vs-O current io is? 10 V (+ Us Select one: a. 10 mA O b. (10/12) mA C. -2.5 mA
A. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have o...
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
1. Find the ratio of the output voltage to the input voltage, Vo/Vin, in the circuit...
1. Find the ratio of the output voltage to the input voltage, Vo/Vin, in the circuit shown. State your assumptions in using the ideal op-amp model. 15 k2 Vin 2. Find the output voltage Vo in the circuit shown assuming an ideal op-amp. State your assumptions in using the ideal op-amp model 15 k12 Vo . Find the voltage Vx and the output voltage Vo in the circuit shown assuming ideal op-amp 3 k2 1 V 6 kn 12 k2
8.) In the OP amp circuit shown in Figure 8 , determine the value of resistor...
8.) In the OP amp circuit shown in Figure 8 , determine the
value of resistor R2 needed to establish an input trip point
voltage of 6.75 Volts ( i.e. when input signal voltage V in exceeds
6.75 V the OP amp’s output voltage changes state ) . ( 60 pts )
R2 = _______________
If the OP AMP in Figure 8 was biased by DC voltages of + / - 15
Volts , and the value of resistor R2...
12. The ideal op-amp circuit is shown in Figure. Find , and, respectively 2012 30k V+...
12. The ideal op-amp circuit is shown in Figure. Find , and, respectively 2012 30k V+ + Vo un V. 10ko | + 4V 12. The ideal op-amp circuit is shown in Figure. Find V+ ,V_ and vo, respectively. 2022 Vo 30k 2 V+ w V. w 10k2 4V
For the circuit shown below, determine the output voltage vo. Assume ideal op amp behavior. S...
For the circuit shown below, determine the output voltage vo. Assume ideal op amp behavior. S V to
V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it ha...
V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it has infinite power supplies (i.e. it won't clip) If VIN varies with time, like ViI(t). You can assume that at t-0, the capacitor is discharged and VIN(0)-OV. Find the following in terms of R, C, and VIn(t) for each circuit above. a Vourt) b The current into the capacitor Ic() from the V-...
3) Consider the op-amp circuit shown below: V, V. ZF Z, a) Determine the input-output relationship...
3) Consider the op-amp circuit shown below: V, V. ZF Z, a) Determine the input-output relationship in the frequency domain. Ri+ 1/(joC) b) Compute and simplify the voltage transfer function, Vo(o)/V(o) if Z and Zf= 1/(joCr)
The op amp circuit of the figure shown below will remove the DC portion of the...
The op amp circuit of the figure shown below will remove the DC portion of the input voltage, v1(t), while amplifying the AC portion. Let v1@-6 + 10-3 sin 400t V, RF= k2, and Vbatt 9 V. Fin Rs (in kQ) such that no DC voltage appears at the output. (Enter your answer as a number without the units.) RF ot) vi(t)
3. (imts) Determine the node voltage va, v, and ve for the circuit shown below. Assume...
3. (imts) Determine the node voltage va, v, and ve for the circuit shown below. Assume ideal OP Amp 10 ㏀ +)12 V 40 ㏀ 15 k2
For the circuit in Figure below, if the op amp is ideal and if the voltage vs-O current io is? 10 V (+ Us Select one: a. 10 mA O b. (10/12) mA C. -2.5 mA
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
1. Find the ratio of the output voltage to the input voltage, Vo/Vin, in the circuit shown. State your assumptions in using the ideal op-amp model. 15 k2 Vin 2. Find the output voltage Vo in the circuit shown assuming an ideal op-amp. State your assumptions in using the ideal op-amp model 15 k12 Vo . Find the voltage Vx and the output voltage Vo in the circuit shown assuming ideal op-amp 3 k2 1 V 6 kn 12 k2
8.) In the OP amp circuit shown in Figure 8 , determine the
value of resistor R2 needed to establish an input trip point
voltage of 6.75 Volts ( i.e. when input signal voltage V in exceeds
6.75 V the OP amp’s output voltage changes state ) . ( 60 pts )
R2 = _______________
If the OP AMP in Figure 8 was biased by DC voltages of + / - 15
Volts , and the value of resistor R2...
12. The ideal op-amp circuit is shown in Figure. Find , and, respectively 2012 30k V+ + Vo un V. 10ko | + 4V 12. The ideal op-amp circuit is shown in Figure. Find V+ ,V_ and vo, respectively. 2022 Vo 30k 2 V+ w V. w 10k2 4V
For the circuit shown below, determine the output voltage vo. Assume ideal op amp behavior. S V to
V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it has infinite power supplies (i.e. it won't clip) If VIN varies with time, like ViI(t). You can assume that at t-0, the capacitor is discharged and VIN(0)-OV. Find the following in terms of R, C, and VIn(t) for each circuit above. a Vourt) b The current into the capacitor Ic() from the V-...
3) Consider the op-amp circuit shown below: V, V. ZF Z, a) Determine the input-output relationship in the frequency domain. Ri+ 1/(joC) b) Compute and simplify the voltage transfer function, Vo(o)/V(o) if Z and Zf= 1/(joCr)
The op amp circuit of the figure shown below will remove the DC portion of the input voltage, v1(t), while amplifying the AC portion. Let v1@-6 + 10-3 sin 400t V, RF= k2, and Vbatt 9 V. Fin Rs (in kQ) such that no DC voltage appears at the output. (Enter your answer as a number without the units.) RF ot) vi(t)
3. (imts) Determine the node voltage va, v, and ve for the circuit shown below. Assume ideal OP Amp 10 ㏀ +)12 V 40 ㏀ 15 k2
