Homework Answers
Add Answer to:

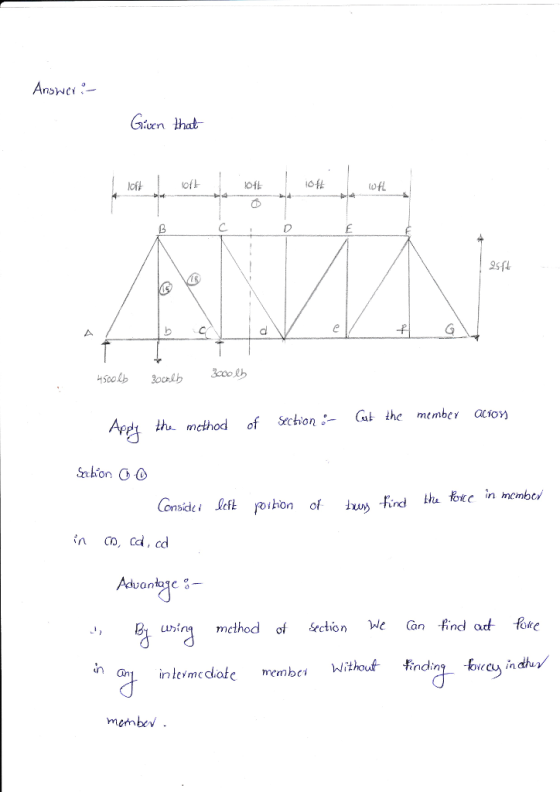

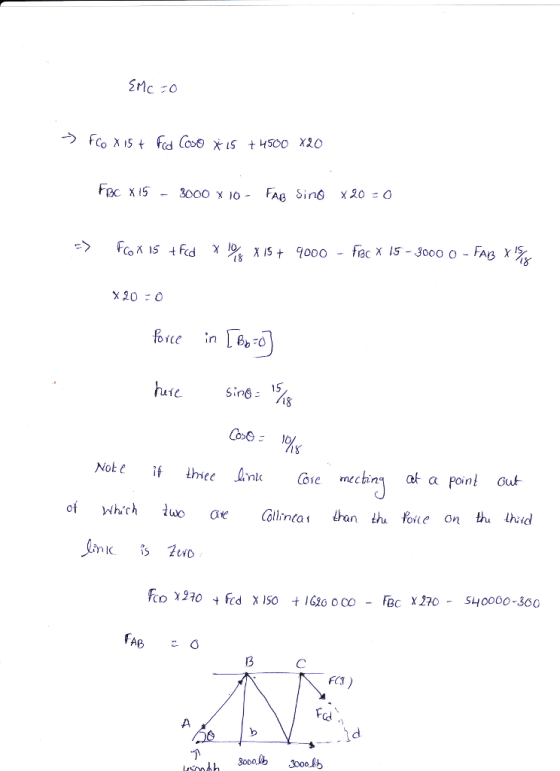

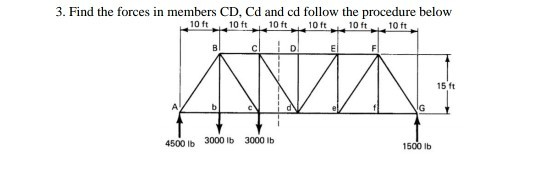

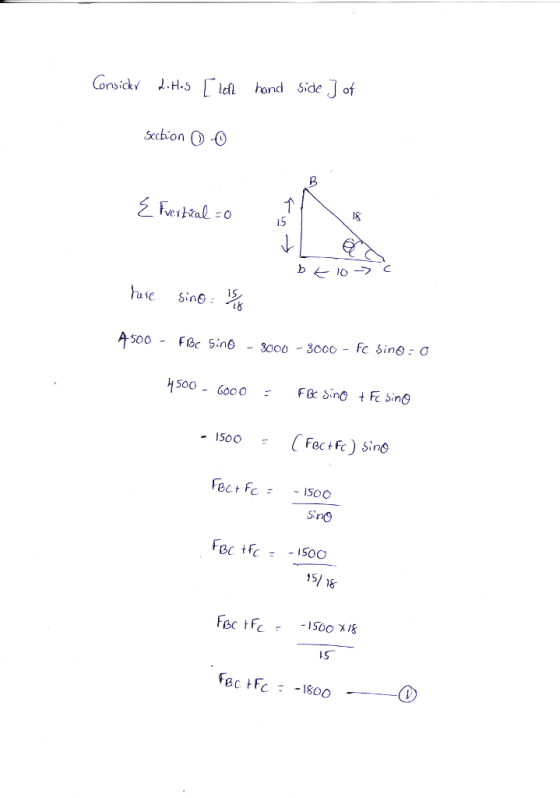

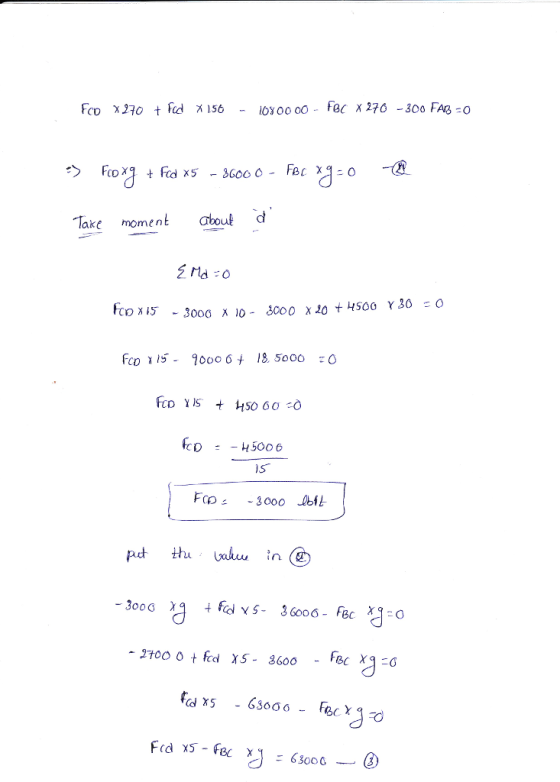

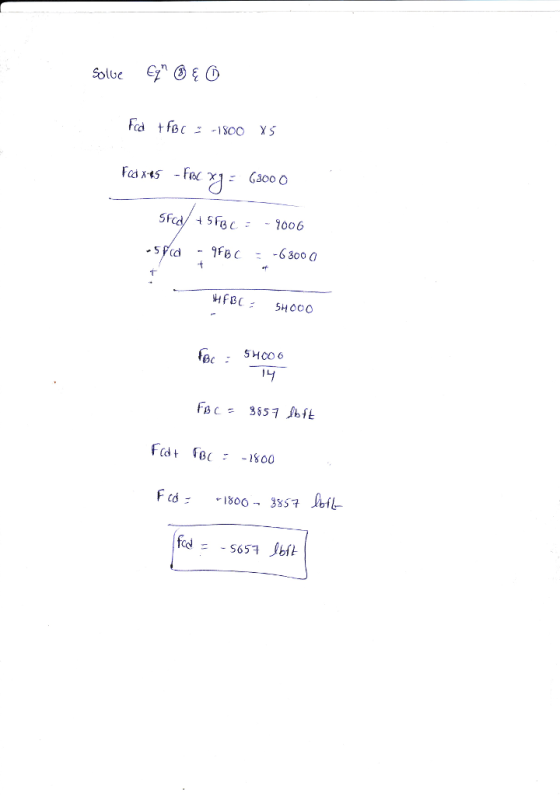

3. Find the forces in members CD, Cd and cd follow the procedure below Dl 15...
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are...
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15 ft A, ; 4500 lb A-0 lb G, 1500 lb 3000 lb 3000Ib Determine the forces in members BC, CD and C. State whether they are in compression or tension.
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15...
2. Determine the force in members CD, HI, and CH of the truss, and state if...
2. Determine the force in members CD, HI, and CH of the truss, and state if the members are in tension or compression. (15 points) K H G - 8 ft N B C D E F ---6ft +-6ft --6 ft--6 ft 6 ft 900 lb 1500 lb 900 lb 1500 lb 900 lb
2. Determine the force in members CD, HI, and CH of the truss, and state if...
2. Determine the force in members CD, HI, and CH of the truss, and state if the members are in tension or compression. (15 points) K J H G 8 ft Α. B C D E F -6 ft 6 ft 6 ft 6 ft 6 ft 900 lb 1500 lb 900 lb 1500 lb 900 lb
2. Determine the force in members CD, HI, and CH of the truss, and state if...
2. Determine the force in members CD, HI, and CH of the truss, and state if the members are in tension or compression. (15 points) K J H G 8 ft Α. B C D E F -6 ft 6 ft 6 ft 6 ft 6 ft 900 lb 1500 lb 900 lb 1500 lb 900 lb
CASIO 6. Find the force in members AB, BD, and CD. Be sure to indicate if...
CASIO 6. Find the force in members AB, BD, and CD. Be sure to indicate if the member is in tension or compression. (15 points) 300 lb 5 3 3 3 ft 4 1000 lb 4 n 3 ft
Determine force in CD, JD, JI using method of sections. ed by members CD, JD and...
Determine force in CD, JD, JI using method of
sections.
ed by members CD, JD and JI in the trus is required. Write the truss loads on the diagram with C & Ld 2000 lb 0 → 1500 lb ЗА 3f4 3 Ft SP4 Sp
Determine the reactions at supports and the forces in members CD, DG, and GH of the...
Determine the reactions at supports and the forces in members CD, DG, and GH of the truss shown by method of sections. (20 pts) 30k 30k 30k 20 15 k 12 ft А. 4 at 16 ft=64f
Problem 3.5 Determine the forces in all members of the below structure using the method of joints...
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft 3 ft
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft...
Determine the forces in members AB, AC and (additionally) CD? State whether it is compression or...
Determine the forces in members AB, AC and (additionally) CD?
State whether it is compression or tension. THANK YOU!!!
Determine the forces in members AB and AC. 150 lb 100 lb Αό- D B 7 3' C brod 4' 4-
2. Determine the forces in members BC, CD, and DE of the truss shown below by...
2. Determine the forces in members BC, CD, and DE of the truss shown below by the method of sections. State if the members are in tension or compression. 10 kN 15 kN
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15 ft A, ; 4500 lb A-0 lb G, 1500 lb 3000 lb 3000Ib Determine the forces in members BC, CD and C. State whether they are in compression or tension.
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15...
2. Determine the force in members CD, HI, and CH of the truss, and state if the members are in tension or compression. (15 points) K H G - 8 ft N B C D E F ---6ft +-6ft --6 ft--6 ft 6 ft 900 lb 1500 lb 900 lb 1500 lb 900 lb
2. Determine the force in members CD, HI, and CH of the truss, and state if the members are in tension or compression. (15 points) K J H G 8 ft Α. B C D E F -6 ft 6 ft 6 ft 6 ft 6 ft 900 lb 1500 lb 900 lb 1500 lb 900 lb
2. Determine the force in members CD, HI, and CH of the truss, and state if the members are in tension or compression. (15 points) K J H G 8 ft Α. B C D E F -6 ft 6 ft 6 ft 6 ft 6 ft 900 lb 1500 lb 900 lb 1500 lb 900 lb
CASIO 6. Find the force in members AB, BD, and CD. Be sure to indicate if the member is in tension or compression. (15 points) 300 lb 5 3 3 3 ft 4 1000 lb 4 n 3 ft
Determine force in CD, JD, JI using method of
sections.
ed by members CD, JD and JI in the trus is required. Write the truss loads on the diagram with C & Ld 2000 lb 0 → 1500 lb ЗА 3f4 3 Ft SP4 Sp
Determine the reactions at supports and the forces in members CD, DG, and GH of the truss shown by method of sections. (20 pts) 30k 30k 30k 20 15 k 12 ft А. 4 at 16 ft=64f
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft 3 ft
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft...
Determine the forces in members AB, AC and (additionally) CD?
State whether it is compression or tension. THANK YOU!!!
Determine the forces in members AB and AC. 150 lb 100 lb Αό- D B 7 3' C brod 4' 4-
2. Determine the forces in members BC, CD, and DE of the truss shown below by the method of sections. State if the members are in tension or compression. 10 kN 15 kN
