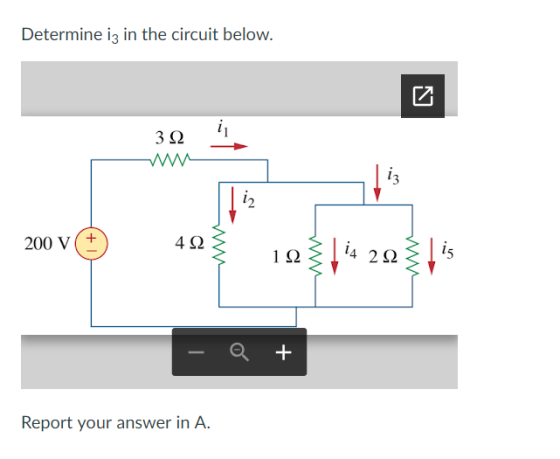

Determine i3 in the circuit below. 312 200 V+ 14 2S2 112 a + Report your answer in A

, current divider.My answer is 57A, but the answer is 47.9

engineering Electrical-Engineering

Answer 1

Answer #1

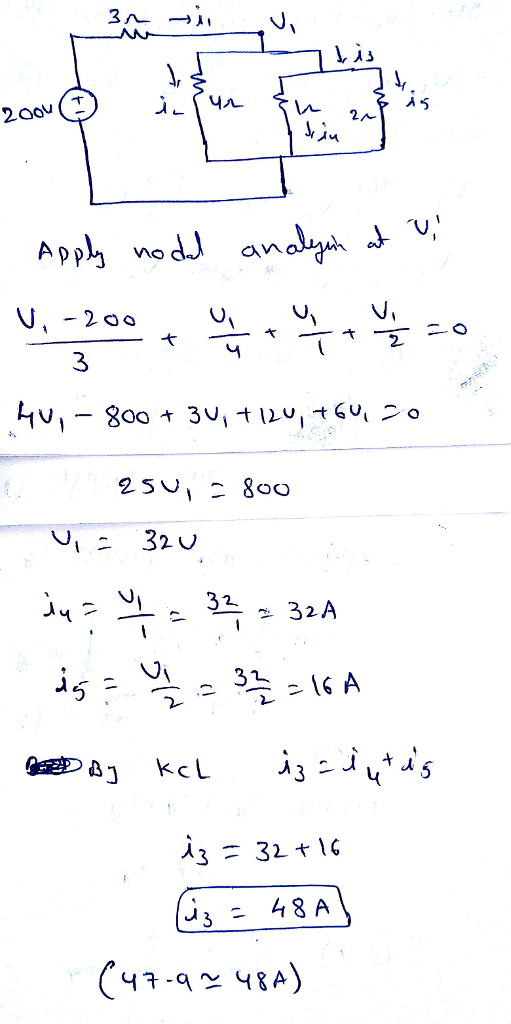

시 200u メ 2 3 32A J3 - 48A

48A is the exact answer

If you have any doubt please make a comment. Thank you
