As shown in the figure, a rectangular loop with a length of 20.0 cm and a...

Question

Question

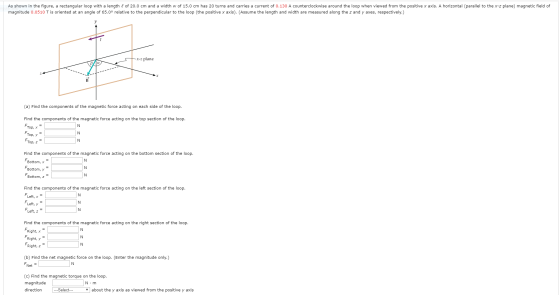

As shown in the figure, a rectangular loop with a length of 20.0 cm and a width w of 15.0 cm has 20 turns and carries a curre

science physics

Answer 1

Answer #1

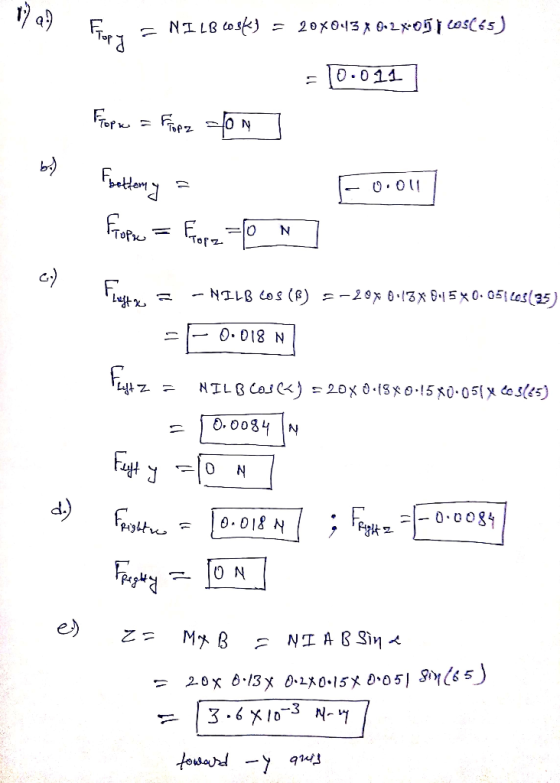

17 a7 42 For y = NI LB.CO3k} = 20X043 X 028.051 COSC65) Eropy ? = 10.011 Flop k = Fropzon bay Footlony = Flops = Fropz = 0 N

Answer 2

Similar Homework Help Questions

A current I = 4.00 A flows in the clockwise direction along a wire forming a...

A current I = 4.00 A flows in the clockwise direction along a wire forming a rectangular loop of side width W = 2.00 m and height = 3.00 m. The whole loop is embedded in a magnetic field B = 10.0 T, which is perpendicular to the plane of the loop, pointing into the page, as shown below. a) Find the magnitude and direction of the magnetic force F on each of the 4 segments of wire making the...
A rectangular loop of wire has a length 2a in the x direction and a width...

A rectangular loop of wire has a length 2a in the x direction and a width 2b in the y direction. The loop lies in the z = 0 plane and is centered at the origin. Assuming that the loop carries a current of I Amps counterclockwise, as viewed from the positive z axis, find the magnetic field vector H at the center of the loop. Hint: Consider how the contributions from opposite sides of the rectangle compare, to save...
A rectangular loop of wire with sides H = 28 cm and W = 67 cm is located in a region

A rectangular loop of wire with sides H = 28 cm and W = 67 cm is located in a region containing a constant magnetic field B = 1.15 T that is aligned with the positive y-axis as shown. The loop carries current I = 240 mA. The plane of the loop is inclined at an angle θ = 30° with respect to the x-axis. 1) What is ?x, the x-component of the magnetic moment vector of the loop? A-m22) What...

A rectangular loop of wire with sides H = 28 cm and W = 52 cm...

A rectangular loop of wire with sides H = 28 cm and W = 52 cm is located in a region containing a constant magnetic field B = 0.9 T that is aligned with the positive y-axis as shown. The loop carries current I = 177 mA. The plane of the loop is inclined at an angle θ = 35o with respect to the x-axis. 1) What is μx, the x-component of the magnetic moment vector of the loop? A-m2...
A rectangular loop of wire with sides H = 23 cm and W = 78 cm is located in a region

A rectangular loop of wire with sides H = 23 cm and W = 78 cm is located in a region containing a constant magnetic field B = 1.34 T that is aligned with the positive y-axis as shown. The loop carries current I = 227 mA. The plane of the loop is inclined at an angle θ = 21° with respect to the x-axis. 1) What is μx, the x-component of the magnetic moment vector of the loop? 2) What is...
Please help with #5 and #6!! Please show work if possible, thank you!! Current Carrying Wires:...

Please help with #5 and #6!! Please show work if possible, thank you!! Current Carrying Wires: Fields and Forces ---- ---- = 3A yo x =10 cm A long wire carrying is placed 10 cm away from the center of a loop carrying 3 A of current, clockwise as seem from above. The loop itself has a diameter of 4 cm. 1. What is the magnitude of the magnetic field, Bloop, created by the loop at its center? 2. What...

A rectangular loop of wire that is 58 cm wide and 12 cm long is placed...

A rectangular loop of wire that is 58 cm wide and 12 cm long is placed in a region where the magnetic field is B = 1.1 T. Suppose the wire loop lies in the x–y plane and that the magnetic field makes an angle of 70° with the z axis. Find the magnitude of the magnetic flux.
Problem 27.69 3 of 15 The rectangular loop of wire shown in the figure (Figure 1)...

Problem 27.69 3 of 15 The rectangular loop of wire shown in the figure (Figure 1) has a mass of 0.11 g per centimeter of length and is pivoted about side ab on a frictionless axis. The current in the wire is 8.1 A in the direction shown Part A Find the magnitude of the magnetic field parallel to the y-axis that will cause the loop to swing up until its plane makes an angle of 30.0° with the yz-plane...
The rectangular loop of wire shown in the figure (Figure 1) has a mass of 0.17 g per centimeter of length

The rectangular loop of wire shown in the figure (Figure 1) has a mass of 0.17 g per centimeter of length and is pivoted about side ab on a frictionless axis. The current in the wire is 8.3 A in the direction shown. Part A Find the magnitude of the magnetic field parallel to the y-axis that will cause the loop to swing up until its plane makes an angle of 30.0° with the yz-plane. Part B Find the direction of the magnetic field...

A rectanglular loop consists of 6 turns of wire carrying a current of 2.4 A. The...

A rectanglular loop consists of 6 turns of wire carrying a current of 2.4 A. The loop is in the x-y plane, and the direction of flow of the current is shown in the figure. The loop has dimensions a = 2 cm and b = 7 cm. Consider a uniform magnetic field of strength 3.9 x 10-4 T in x, y, or z directions. 1) If the uniform field of 3.9 x 10-4 T is along the +x axis,...
