A rectangular loop of wire has a length 2a in the x direction and a width...
A rectangular loop of wire has a length 2a in the x direction and a width 2b in the y direction. The loop lies in the z = 0 plane and is centered at the origin. Assuming that the loop carries a current of I Amps counterclockwise, as viewed from the positive z axis, find the magnetic field vector H at the center of the loop.
Hint: Consider how the contributions from opposite sides of the rectangle compare, to save yourself some time.

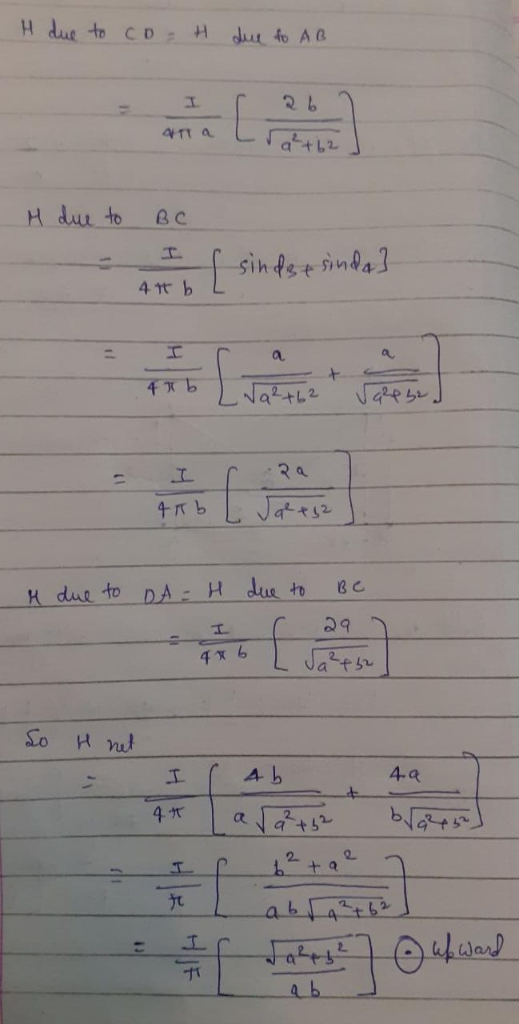

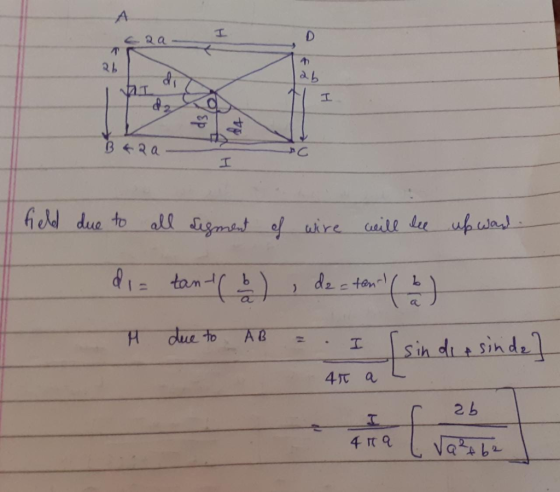

Homework Answers
Add Answer to:
A rectangular loop of wire has a length 2a in the x direction
and a width...
A rectangular loop of wire lies in the xy-plane. One corner of the loop is at...
A rectangular loop of wire lies in the xy-plane. One corner of the loop is at the origin. The loop is 3.0 cm × 2.0 cm so the opposite corner is at x = 3.0 cm, y = 2.0 cm. The magnetic field in this region is non-uniform. The magnetic field for x < 2.0 cm is 3.0 T in the positive z-direction and the magnetic field for x ≥ 2.0 cm is 2.0 T in the negative z-direction. Find...
Rectangular current loop A current I flows in a square current loop of wire placed on...
Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. (b) For za, b, what does your expression simplify to? (c) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop radius.
3. Rectangular current loop A current I flows in a square current loop of wire placed...
3. Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. b) For z a, b, what does your expression simplify to? (e) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop...
A rectangular loop has dimensions 0.505 m by 0.260 m. The loop is hinged along the...
A rectangular loop has dimensions 0.505 m by 0.260 m. The loop
is hinged along the x-axis and lies in the xy-plane (see the figure
below). A uniform magnetic field of 1.45 T is directed at an angle
of 40.0° with respect to the positive y-axis and lies parallel
everywhere to the yz-plane. The loop carries a current of 0.855 A
in the direction shown. (Ignore gravitation.)
(a) In what direction is magnetic force exerted on wire segment
ab?
direction...
A rectangular wire loop located in the plane of the page has a width L, and its length. X
A rectangular wire loop located in the plane of the page has a width L, and its length. X. is determined by the position a movable rail that forms the fourth side of the rectangle, as shown. The total electrical resistance of the wire loop is R, and an externally applied magnetic field, B, is directed out of the page. The rail is moving towards the right with speed v. Assume that the x direction is towards the right of...
A square loop with side dimensions l lies in the xy plane of a rectangular coordinate...
A square loop with side dimensions l lies in the xy plane of a rectangular coordinate system and is centered about the origin. The loop carries a current I that circulates counter clock-wise. Determine an expression for the magnetic flux density vector.
As shown in the figure, a rectangular loop with a length of 20.0 cm and a...
As shown in the figure, a rectangular loop with a length of 20.0 cm and a width w of 15.0 cm has 20 turns and carries a current of 0.130 A counterclockwise around the loop when viewed from the positive x axis. A horizontal (parallel to the x-z plane) magnetic field of magnitude 0.0510 T is oriented at an angle of 65.0° relative to the perpendicular to the loop (the positive x axis). (Assume the length and width are measured...
A single, rectangular current-carrying wire is bent on two sides at 90° so that one end lies along the xy plane and the other lies along the xz plane as shown in the figure The length o fa= 1.00 cm
A single, rectangular current-carrying wire is bent on two sides at 90° so that one end lies along the xy plane and the other lies along the xz plane as shown in the figure The length of a= 1.00 cm, and the length of b = 14.0 cm. A current of I-480 amps flows through the loop in the direction shown by the arrows. If the wire is put into a uniform magnetic field of B- 2 50 Tesla oriented...
Acurrent-carrying rectangular wire loop with width a = 0.115 m and length b = 0.205 m...
Acurrent-carrying rectangular wire loop with width a = 0.115 m and length b = 0.205 m is in the xy-plane, supported by a nonconducting, frictionless axle of negligible weight. A current of I = 2.75 A travels counterclockwise in the circuit (see the figure below). Calculate the magnitude and direction of the force exerted on the left, right, top, and bottom segments of wire (in N) by a uniform magnetic field of 0.300 T that points in the positive x-direction....
A rectangular loop of current carrying wire lies in the xy-plane. The rectangle measures 0.597 m...
A rectangular loop of current carrying wire lies in the xy-plane. The rectangle measures 0.597 m by 0.575 m and carries a current of 0.402 A. The loop is in an external magnetic field. The loop has 25.8 J of potential energy and feels a torque of magnitude 6.59 Nm. What is the magnitude of the external magnetic field?
Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. (b) For za, b, what does your expression simplify to? (c) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop radius.
3. Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. b) For z a, b, what does your expression simplify to? (e) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop...
A rectangular loop has dimensions 0.505 m by 0.260 m. The loop
is hinged along the x-axis and lies in the xy-plane (see the figure
below). A uniform magnetic field of 1.45 T is directed at an angle
of 40.0° with respect to the positive y-axis and lies parallel
everywhere to the yz-plane. The loop carries a current of 0.855 A
in the direction shown. (Ignore gravitation.)
(a) In what direction is magnetic force exerted on wire segment
ab?
direction...
As shown in the figure, a rectangular loop with a length of 20.0 cm and a width w of 15.0 cm has 20 turns and carries a current of 0.130 A counterclockwise around the loop when viewed from the positive x axis. A horizontal (parallel to the x-z plane) magnetic field of magnitude 0.0510 T is oriented at an angle of 65.0° relative to the perpendicular to the loop (the positive x axis). (Assume the length and width are measured...
