Acurrent-carrying rectangular wire loop with width a = 0.115 m and length b = 0.205 m...

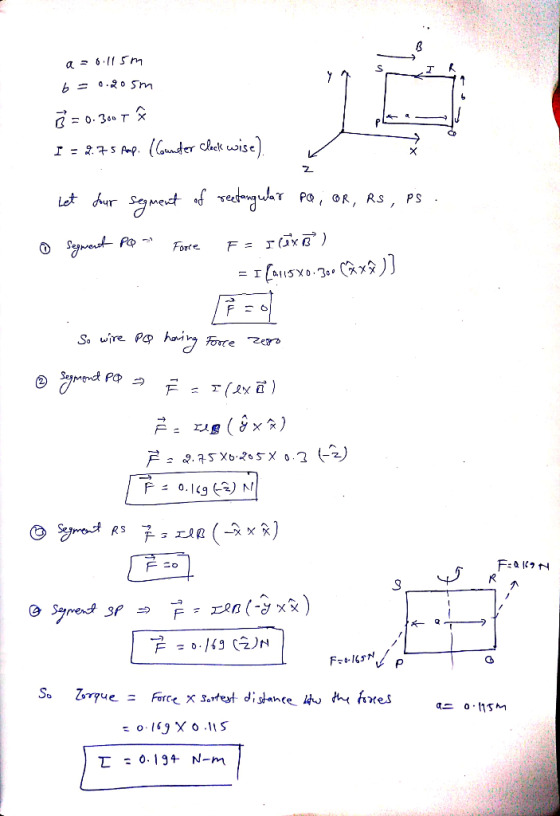

Acurrent-carrying rectangular wire loop with width a = 0.115 m and length b = 0.205 m is in the xy-plane, supported by a nonconducting, frictionless axle of negligible weight. A current of I = 2.75 A travels counterclockwise in the circuit (see the figure below). Calculate the magnitude and direction of the force exerted on the left, right, top, and bottom segments of wire (in N) by a uniform magnetic field of 0.300 T that points in the positive x-direction. Find the magnitude of the net torque (in N · m) on the loop about the axle.
answer e only Find the magnitude of the net torque (in N · m) on the loop about the axle.
Homework Answers
Add Answer to:
Acurrent-carrying rectangular wire loop with width a = 0.115 m
and length b = 0.205 m...
A rectangular loop has dimensions 0.505 m by 0.260 m. The loop is hinged along the...
A rectangular loop has dimensions 0.505 m by 0.260 m. The loop
is hinged along the x-axis and lies in the xy-plane (see the figure
below). A uniform magnetic field of 1.45 T is directed at an angle
of 40.0° with respect to the positive y-axis and lies parallel
everywhere to the yz-plane. The loop carries a current of 0.855 A
in the direction shown. (Ignore gravitation.)
(a) In what direction is magnetic force exerted on wire segment
ab?
direction...
A rectangular loop of current carrying wire lies in the xy-plane. The rectangle measures 0.597 m...
A rectangular loop of current carrying wire lies in the xy-plane. The rectangle measures 0.597 m by 0.575 m and carries a current of 0.402 A. The loop is in an external magnetic field. The loop has 25.8 J of potential energy and feels a torque of magnitude 6.59 Nm. What is the magnitude of the external magnetic field?
will rate, thanks! A rectangular coil of wire consisting of 25.0 loops, each with length 0.200...
will rate, thanks!
A rectangular coil of wire consisting of 25.0 loops, each with length 0.200 m and width 0.300 m, lies in the xy-plane. If the coil carries a current of 2.15 A, what is the magnitude of the torque exerted by a magnetic field of magnitude 0.0100 T directed at an angle of 25.0° with respect to the positive 2-axis? N.m
The plane of a rectangular loop of wire with a width of 5.0 cm and a...
The plane of a rectangular loop of wire with a width of 5.0 cm and a height of 8.0 cm is parallel to a magnetic field of magnitude 0.25 T . The loop carries a current of 6.7 A . What torque acts on the loop? Express your answer using two significant figures. τ = What is the magnetic moment of the loop? Express your answer using two significant figures. μ = A⋅m^2 What is the maximum torque that can...
A long straight wire and rectangular thin wire loop shown in the figure below are in...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
A rectangular wire loop with sides of length w =1.6 m and h = 0.50 m...
A rectangular wire loop with sides of length w =1.6 m and h = 0.50 m and net resistance R lies in the xy-plane. It is placed in a region which is occupied by a spatially-uniform but time-varying magnetic field B = B_0[1 - [t^2/t_0^2]] k where B_) = 0.70 T and t_0 = 3.0 s. A graph of the B-field's t-dependence is given below. What is the direction of the current induced around the wire loop at time t...
A rectangular loop of wire is placed next to a straight wire. There is a current of 3.5A in both ...
A rectangular loop of wire is placed next to a straight wire. There is a current of 3.5A in both wires. Please find the magnitude and direction of the net force on the loop. 1) What is the direction of magnetic field produced by long wire? 2) What is the force on segment AB due to this magnetic field (magnitude and direction) 3) What is the force on segment CD due to this magnetic field (magnitude and direction) 4) What...
Q4. (25 pts) A rectangular loop of wire is placed next to the long straight wire...
Q4. (25 pts) A rectangular loop of wire is placed next to the long straight wire sce fig a) b) Determine the direction of force exerted to each side of loop. What is the magnitude and direction of the net force on the loop. 巩:
A rectangular loop of wire (0.10 m by 0.20 m) carries a current of 5.0 A...
A rectangular loop of wire (0.10 m by 0.20 m) carries a current of 5.0 A in a counterclockwise direction. The loop is oriented as shown in a uniform magnetic field of 1.5 T. Calculate the resultant (net) force acting on the coil.
A rectangular loop of wire has a length 2a in the x direction and a width...
A rectangular loop of wire has a length 2a in the x direction and a width 2b in the y direction. The loop lies in the z = 0 plane and is centered at the origin. Assuming that the loop carries a current of I Amps counterclockwise, as viewed from the positive z axis, find the magnetic field vector H at the center of the loop. Hint: Consider how the contributions from opposite sides of the rectangle compare, to save...
A rectangular loop has dimensions 0.505 m by 0.260 m. The loop
is hinged along the x-axis and lies in the xy-plane (see the figure
below). A uniform magnetic field of 1.45 T is directed at an angle
of 40.0° with respect to the positive y-axis and lies parallel
everywhere to the yz-plane. The loop carries a current of 0.855 A
in the direction shown. (Ignore gravitation.)
(a) In what direction is magnetic force exerted on wire segment
ab?
direction...
will rate, thanks!
A rectangular coil of wire consisting of 25.0 loops, each with length 0.200 m and width 0.300 m, lies in the xy-plane. If the coil carries a current of 2.15 A, what is the magnitude of the torque exerted by a magnetic field of magnitude 0.0100 T directed at an angle of 25.0° with respect to the positive 2-axis? N.m
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
A rectangular wire loop with sides of length w =1.6 m and h = 0.50 m and net resistance R lies in the xy-plane. It is placed in a region which is occupied by a spatially-uniform but time-varying magnetic field B = B_0[1 - [t^2/t_0^2]] k where B_) = 0.70 T and t_0 = 3.0 s. A graph of the B-field's t-dependence is given below. What is the direction of the current induced around the wire loop at time t...
A rectangular loop of wire is placed next to a straight wire. There is a current of 3.5A in both wires. Please find the magnitude and direction of the net force on the loop. 1) What is the direction of magnetic field produced by long wire? 2) What is the force on segment AB due to this magnetic field (magnitude and direction) 3) What is the force on segment CD due to this magnetic field (magnitude and direction) 4) What...
Q4. (25 pts) A rectangular loop of wire is placed next to the long straight wire sce fig a) b) Determine the direction of force exerted to each side of loop. What is the magnitude and direction of the net force on the loop. 巩:
A rectangular loop of wire (0.10 m by 0.20 m) carries a current of 5.0 A in a counterclockwise direction. The loop is oriented as shown in a uniform magnetic field of 1.5 T. Calculate the resultant (net) force acting on the coil.
