Given the three capacitors of the strengths, 3F, 5F and 7F, draw the configuration which would...

Question

Question

Given the three capacitors of the strengths, 3F, 5F and 7F, draw the configuration which would...

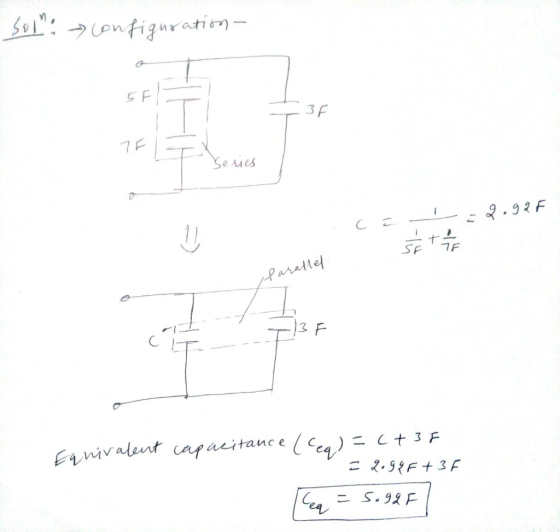

Given the three capacitors of the strengths, 3F, 5F and 7F, draw the configuration which would yield an equivalent capacitance BETWEEN 5F and 7F. What is the equivalence capacitance? Please give reasoning.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

Given the three capacitors of the strengths, 3F, 5F and 7F, draw the configuration which would...

Given the three capacitors of the strengths, 3F, 5F and 7F, draw the configuration which would yield an equivalent capacitance between 5F and 7F. What is the equivalence capacitance?
