A rectangular loop of wire lies in the xy-plane. One corner of the loop is at...

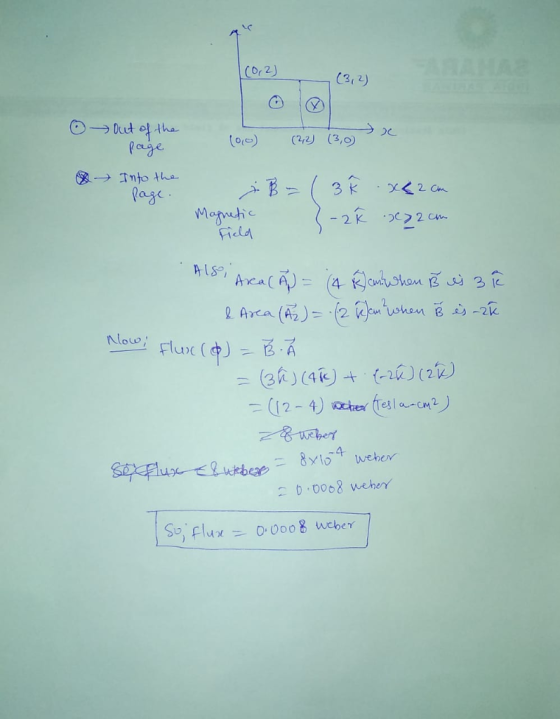

A rectangular loop of wire lies in the xy-plane. One corner of the loop is at the origin. The loop is 3.0 cm × 2.0 cm so the opposite corner is at x = 3.0 cm, y = 2.0 cm. The magnetic field in this region is non-uniform. The magnetic field for x < 2.0 cm is 3.0 T in the positive z-direction and the magnetic field for x ≥ 2.0 cm is 2.0 T in the negative z-direction. Find the magnetic flux through the loop?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A rectangular loop of wire lies in the xy-plane. One corner of the loop is at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A single, rectangular current-carrying wire is bent on two sides at 90° so that one end lies along the xy plane and the other lies along the xz plane as shown in the figure The length o fa= 1.00 cm

    A single, rectangular current-carrying wire is bent on two sides at 90° so that one end lies along the xy plane and the other lies along the xz plane as shown in the figure The length of a= 1.00 cm, and the length of b = 14.0 cm. A current of I-480 amps flows through the loop in the direction shown by the arrows. If the wire is put into a uniform magnetic field of B- 2 50 Tesla oriented...

  • A circular loop of wire with area A lies in the xy-plane. As viewed along the...

    A circular loop of wire with area A lies in the xy-plane. As viewed along the z-axis looking in the −z-direction toward the origin, a current I is circulating clockwise around the loop. The torque produced by an external magnetic field B⃗  is given by τ⃗ =D(3i^−3j^), where D is a positive constant, and for this orientation of the loop the magnetic potential energy U=−μ⃗ ⋅B⃗  is negative. The magnitude of the magnetic field is B0=15D/IA. Determine the component Bx of B⃗...

  • A loop of wire with radius R lies in the xy-plane and carries a time varying...

    A loop of wire with radius R lies in the xy-plane and carries a time varying current I(t) I, sin(ot). A smaller loop of wire with radius a lies in the xy-plane at the center of the larger loop. Assume that radius of the smaller loop is much smaller that the radius of the larger loop, a<<lR a) (10 points) At the center of the large loop calculate the magnitude and direction of the magnetic field B(t) due to the...

  • A rectangular loop of wire that is 58 cm wide and 12 cm long is placed...

    A rectangular loop of wire that is 58 cm wide and 12 cm long is placed in a region where the magnetic field is B = 1.1 T. Suppose the wire loop lies in the x–y plane and that the magnetic field makes an angle of 70° with the z axis. Find the magnitude of the magnetic flux.

  • A square loop has side lengths of 24.0 cm and lies in the xy-plane, with its...

    A square loop has side lengths of 24.0 cm and lies in the xy-plane, with its bottom left corner at the origin. A magnetic field is acting parallel to the z-axis represented by the equation B = 0.300(y^2)t. If the resistance in the loop is 0.700 ?, what is the induced current in the loop at t = 0.300 s? A square loop has side lengths of 24.0 cm and lies in the xy-plane, with its bottom left corner at...

  • A rectangular loop of wire that is 38 cm wide and 25 cm long lies in...

    A rectangular loop of wire that is 38 cm wide and 25 cm long lies in the x–yplane in a region where the magnetic field is B = 1.1 T and directed at an angle of 55° with the z axis. Find the magnitude of the magnetic flux. Wb

  • A circular area with a radius of 6.5 cm lies in the xy plane...

    A circular area with a radius of 6.5 cm lies in the xy plane. What is the magnitude of the magnetic flux through this circle due to a uniform magnetic field B=0.230 T:(A) in the +z direction;(B) at an angle of 53.1 degrees from the +z direction;(C) in the +y direction?

  • A rectangular loop of wire has a length 2a in the x direction and a width...

    A rectangular loop of wire has a length 2a in the x direction and a width 2b in the y direction. The loop lies in the z = 0 plane and is centered at the origin. Assuming that the loop carries a current of I Amps counterclockwise, as viewed from the positive z axis, find the magnetic field vector H at the center of the loop. Hint: Consider how the contributions from opposite sides of the rectangle compare, to save...

  • A circular loop of wire with area A lies in the xy-plane. As viewed along the...

    A circular loop of wire with area A lies in the xy-plane. As viewed along the z-axis looking in the −z-direction toward the origin, a current I is circulating clockwise around the loop. The torque produced by an external magnetic field B⃗ is given by τ⃗ =D(5i^−2j^), where D is a positive constant, and for this orientation of the loop the magnetic potential energy U=−μ⃗ ⋅B⃗ is negative. The magnitude of the magnetic field is B0=14D/IA. A) Determine the vector...

  • A 17.0 cm × 17.0 cm square loop of wire lies in the xy-plane with its...

    A 17.0 cm × 17.0 cm square loop of wire lies in the xy-plane with its bottom edge on the x-axis. The resistance of the loop is 0.540 Ω . A magnetic field parallel to the z-axis is given by B = 0.820 y2t, where B is in tesla, y is in meters, and t is in seconds. What is the size of the induced current in the loop at t = 0.520 s ?
