A 34 cm long Silver wire ( = 1.47 x 10-8 /m) has a resistance of...

Question

Question

A 34 cm long Silver wire ( = 1.47 x 10-8 /m) has a resistance of 4.42 x 10-3 2. What is the diameter of this wire? mm If you

science physics

Answer 1

Answer #1

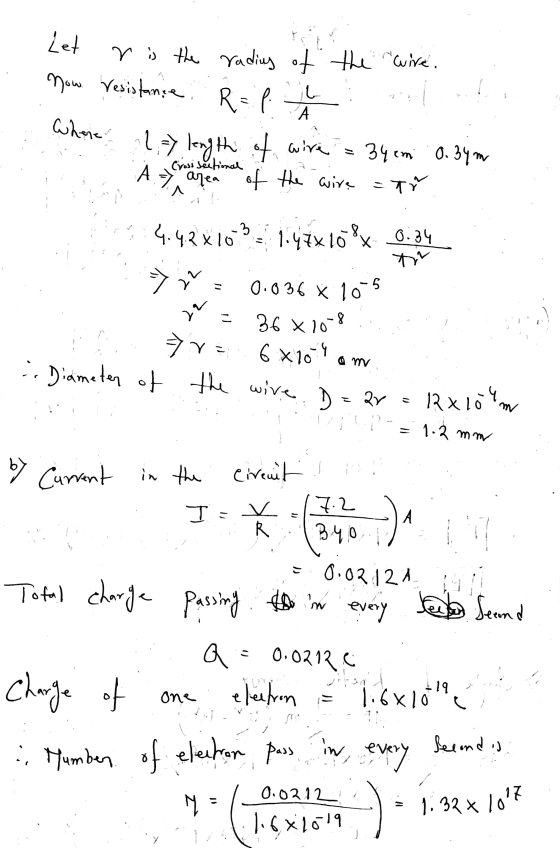

Let r is the radius of the wire. now. Vesistance R= p i А Where al length of wire im 0 0.34m 34 en Cross sectional A => area
