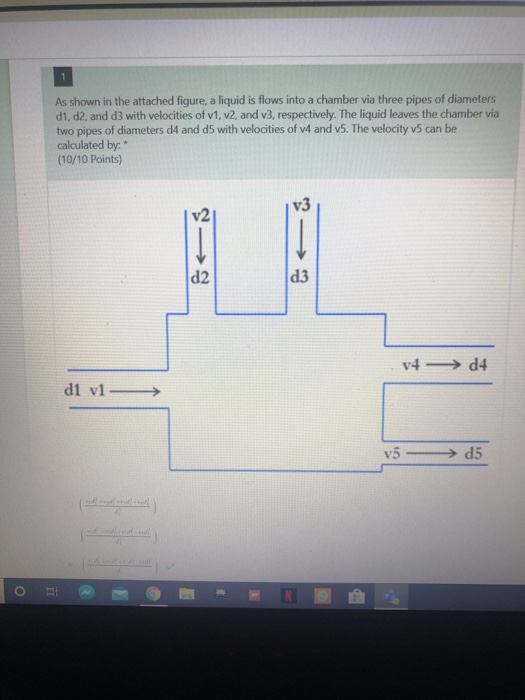

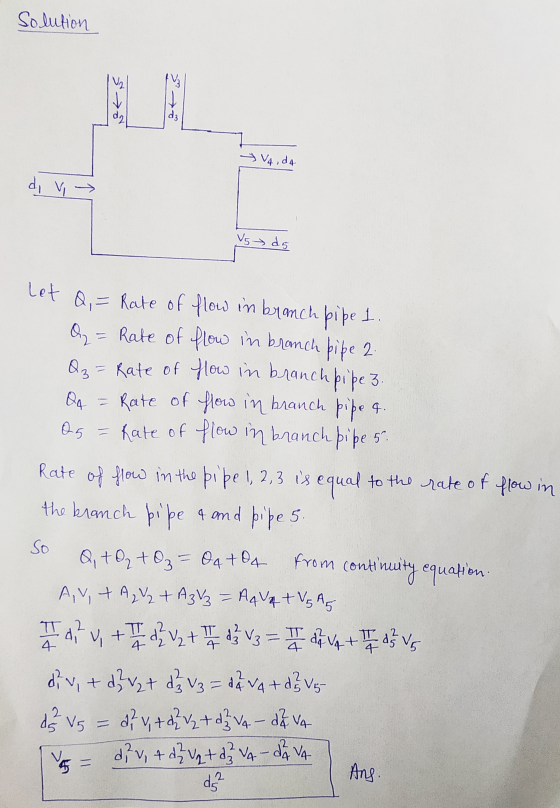

As shown in the attached figure, a liquid is flows into a chamber via three pipes...
(4) Two pipes merge into a single pipe the upstream pipes have diameters D1-10 cm and...
(4) Two pipes merge into a single pipe the upstream pipes have diameters D1-10 cm and D2-5 cm with flow velocities U1- 2m/s and U2-3 m/s respectively. The downstream pipe has a diameter D3-20 cm. Calculate the velocity in the downstream pipe. D1 U1 D3 U2 D2
2. Find the flow velocities v1, v2, v3 in the pipeline as shown in Figure 5.25....
2.
Find the flow velocities v1, v2, v3 in the pipeline as shown in
Figure 5.25. However, the flow rate is Q=800 l/min, and the pipe
diameters d1, d2, and d3 in the cross sections 1, 2, and 3 are
d1=50 mm, d2=65 mm, and d3=100 mm.
3. Water is flowing in the pipeline shown in Figure 5.25. When
the pressure in section 1 is p1=24.5kPa (0.25kgf/cm2), what are the
pressures p2 and p3 in sections 2 and 3?
with...
2. Find the flow velocities v1, V2, v3 in the pipeline as shown in Figure 5.25....
2. Find the flow velocities v1, V2, v3 in the pipeline as shown in Figure 5.25. However, the flow rate is Q=800 l/min, and the pipe diameters d1, d2, and d3 in the cross sections 1, 2, and 3 are d1=50 mm, d265 mm, and d3=100 mm. 3. Water is flowing in the pipeline shown in Figure 5.25. When the pressure in section 1 is p1=24.5kPa (0.25kgf/cm2), what are the pressures p2 and p3 in sections 2 and 3? with...
3. (15 marks) As shown in the figure, a chamber has two pipe inlets (indicated using...
3. (15 marks) As shown in the figure, a chamber has two pipe inlets (indicated using 1 and 2) and a nozzle outlet (indicated using 3). Helium gas flows through the system, and can be treated as an ideal gas with constant specific heats. The pressure of the helium at the two inlets and outlet is P, = 10 MPa, P2-15 MPa and P3-8 MPa, and the corresponding velocity of the helium gas is V - 10 m/s, V,- 15...
Water (ρ =1000 kg/m3 and ν =10-6 m2/s) flows through a conduit with a velocity of...
Water (ρ =1000 kg/m3 and ν =10-6
m2/s) flows through a conduit with a velocity of 4.72
m/s at section 2 shown in figure. If the diameters D1, D2 and D3,
are 50 mm, 60 mm and 100 mm respectively, the Reynolds number at
section 3 is:
The Reynolds number =___________________
Air at 20 C flows through the tube shown in (Figure 1). Assume that air is...
Air at 20 C flows through the tube shown in (Figure 1). Assume
that air is an ideal fluid. The density of air is 1.20
kg/m3, the density of mercury is 13600 kg/m3.
Suppose that d1 = 2 mm and
d2 = 1.4 cm.
(A) What is the air speed of v1 at point 1? = 149
m/s
(B) What is the air speed v2 at point 2? =
????
(C) What is the volume flow rate? = 4.7*10-4
m3/s...
