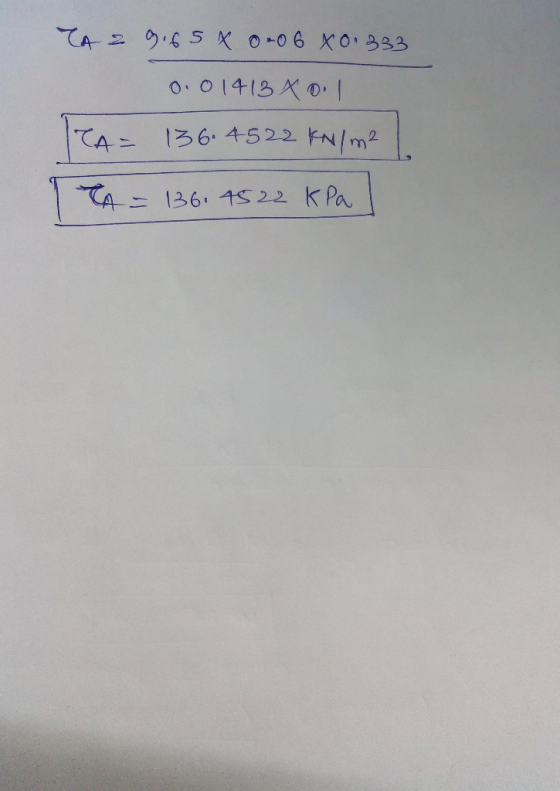

![A = 9.658 0-0 6801333 0.01413 Xol TRA= 136.4522 kN/m² A = 136.4522 kPa]](http://img.homeworklib.com/questions/e46cc460-51e2-11eb-8717-3f0478fcdca4.png?x-oss-process=image/resize,w_560)
Add Answer to:

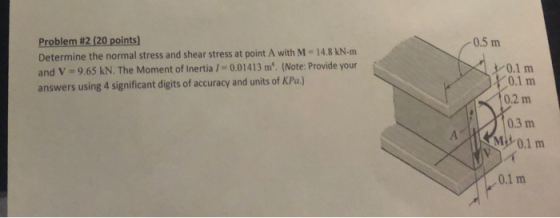

-0.5 m Problem #2 (20 points) Determine the normal stress and shear stress at point A...
Learning Goal: To calculate the normal and shear stresses at a point on the cross section...
Learning Goal: To calculate the normal and shear stresses at a point on the cross section of a column. The state of stress at a point is a description of the normal and shear stresses at that point. The normal stresses are generally due to both internal normal force and internal bending moment. The net result can be obtained using the principle of superposition as long as the deflections remain small and the response is elastic. Figure < 1 of...
Problem #2 (20 points) The section has -35 KN and /-165.625 x 10 stress 30 mm...
Problem #2 (20 points) The section has -35 KN and /-165.625 x 10 stress 30 mm down from the top of the section. (Note: Provide your answer in units of MPa using 4 significapt digits of accuracy) 2 Va 150 mm mm'. Determine the shear WAA $2.5 m 20 mm Z5N A T 117.5 m esoo Te5625.6 .o y.655 honld have 20 mm A O.002 m s65 660.38 P.02
<Assignment#7 Problem 9.5 1 of 3 Review Determine the normal stress and shear stress acting on...
<Assignment#7 Problem 9.5 1 of 3 Review Determine the normal stress and shear stress acting on the inclined plane AB. Solve the problem using the stress transformation equations. Suppose that T = 7 ksi (Figure 1) v Part A Determine the normal stress acting on plane AB. Express your answer to three significant figures and include the appropriate units. TH MÅ ? Figure 1 of 1 > Value Units 15 ksi Submit Request Answer x' B Part B 60° Determine...
P7-1. In each case, calculate the value of Q and that used in the shear formula...
P7-1. In each case, calculate the value of Q and that used in the shear formula for finding the shear stress at A. Also, show how the shear stress acts on a differential volume element located are 0.2 m point A. at 0.2 m 0.2 m 02 m 0.3 m 02 m 0.2 m 02m 0.1 m 2 10.1 m (d) 0.1 m 02 m (a) 0.1 m 0.3 m fa. 0.1 m 0.2 m 0.3 m 7 0.3 m...
1) For the loading of the beam shown below, determine the maximum normal and shear stress...
1) For the loading of the beam shown below, determine the maximum normal and shear stress at the wall if Kt for bending is 2.7 and K, for torsion is 2.3 If we use a steel with an Sy 600 MPa, what is the "safety factor" if we only consider the maximum normal stress? Notice the bending moment, start with a cross product to determine the moment at the wall. The vector R-[0.25,0,0.3] in meters 200 mm 25-mm-dia. round rod...
The wood has an allowable normal stress of allow = 15 MPa and an allowable shear...
The wood has an allowable normal stress of allow = 15 MPa and an allowable shear stress of Tallow = 1.29 MPa (Figure 1) Part A Determine the minimum dimension h of the beam's cross section to safely support the load. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 μΑ ? 25 kN/m h = Value Units Submit Request Answer A 2 m < Return to Assignment Provide Feedback 100 mm
Determine the shear stress at points A and B on the beam if it is subjected...
Determine the shear stress at points A and B on the beam if it is subjected to a shear force of V cann 600 kN. 100 mim 00 m 100 mm 100 mm 5) 100 mm 100 mm
Problem 3. (38% ) Determine the internal normal force, shear force, and moment at points A...
Problem 3. (38% ) Determine the internal normal force, shear force, and moment at points A and B in the frame. The supports at C and D are both pins. Present a F.B.D. for each analysis performed. KN 4(3)-12KN 4 kN/m Cak Cy 2 m 12, KN A 1.5 1-5m 1m- 1 m m. Crt (タニP× 1Z k Thar EMC-0 -12 (1.5) P (2) =o Bh-C=O Dry. -9KN FrD A-(121-6 EMc-o (e.6) M
Problem 3. (38% ) Determine the internal...
Learning Goal: To use the superposition principle to find the state of stress on a beam...
Learning Goal: To use the superposition principle to find the state of stress on a beam under multiple loadings. The beam shown below is subjected to a horizontal force P via the rope wound around the pulley. The state of stress at point A is to be determined. P 1d4 di dz d2 20 mm T 100 mm 200 mm 15 mm 20 mm 150 mm The dimensions are di = 1.85 m, d2 = 0.5 m, dz = 0.9...
Problem 3: Shear and moment at a point Determine the internal shear and moment half-way between...
Problem 3: Shear and moment at a point Determine the internal shear and moment half-way between point A and B. Support A is a roller and B is a pin. | M = 12 kN: m w = 3 kN/m " | | | 6 m
Learning Goal: To calculate the normal and shear stresses at a point on the cross section of a column. The state of stress at a point is a description of the normal and shear stresses at that point. The normal stresses are generally due to both internal normal force and internal bending moment. The net result can be obtained using the principle of superposition as long as the deflections remain small and the response is elastic. Figure < 1 of...
Problem #2 (20 points) The section has -35 KN and /-165.625 x 10 stress 30 mm down from the top of the section. (Note: Provide your answer in units of MPa using 4 significapt digits of accuracy) 2 Va 150 mm mm'. Determine the shear WAA $2.5 m 20 mm Z5N A T 117.5 m esoo Te5625.6 .o y.655 honld have 20 mm A O.002 m s65 660.38 P.02
<Assignment#7 Problem 9.5 1 of 3 Review Determine the normal stress and shear stress acting on the inclined plane AB. Solve the problem using the stress transformation equations. Suppose that T = 7 ksi (Figure 1) v Part A Determine the normal stress acting on plane AB. Express your answer to three significant figures and include the appropriate units. TH MÅ ? Figure 1 of 1 > Value Units 15 ksi Submit Request Answer x' B Part B 60° Determine...
P7-1. In each case, calculate the value of Q and that used in the shear formula for finding the shear stress at A. Also, show how the shear stress acts on a differential volume element located are 0.2 m point A. at 0.2 m 0.2 m 02 m 0.3 m 02 m 0.2 m 02m 0.1 m 2 10.1 m (d) 0.1 m 02 m (a) 0.1 m 0.3 m fa. 0.1 m 0.2 m 0.3 m 7 0.3 m...
1) For the loading of the beam shown below, determine the maximum normal and shear stress at the wall if Kt for bending is 2.7 and K, for torsion is 2.3 If we use a steel with an Sy 600 MPa, what is the "safety factor" if we only consider the maximum normal stress? Notice the bending moment, start with a cross product to determine the moment at the wall. The vector R-[0.25,0,0.3] in meters 200 mm 25-mm-dia. round rod...
The wood has an allowable normal stress of allow = 15 MPa and an allowable shear stress of Tallow = 1.29 MPa (Figure 1) Part A Determine the minimum dimension h of the beam's cross section to safely support the load. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 μΑ ? 25 kN/m h = Value Units Submit Request Answer A 2 m < Return to Assignment Provide Feedback 100 mm
Determine the shear stress at points A and B on the beam if it is subjected to a shear force of V cann 600 kN. 100 mim 00 m 100 mm 100 mm 5) 100 mm 100 mm
Problem 3. (38% ) Determine the internal normal force, shear force, and moment at points A and B in the frame. The supports at C and D are both pins. Present a F.B.D. for each analysis performed. KN 4(3)-12KN 4 kN/m Cak Cy 2 m 12, KN A 1.5 1-5m 1m- 1 m m. Crt (タニP× 1Z k Thar EMC-0 -12 (1.5) P (2) =o Bh-C=O Dry. -9KN FrD A-(121-6 EMc-o (e.6) M
Problem 3. (38% ) Determine the internal...
Learning Goal: To use the superposition principle to find the state of stress on a beam under multiple loadings. The beam shown below is subjected to a horizontal force P via the rope wound around the pulley. The state of stress at point A is to be determined. P 1d4 di dz d2 20 mm T 100 mm 200 mm 15 mm 20 mm 150 mm The dimensions are di = 1.85 m, d2 = 0.5 m, dz = 0.9...
Problem 3: Shear and moment at a point Determine the internal shear and moment half-way between point A and B. Support A is a roller and B is a pin. | M = 12 kN: m w = 3 kN/m " | | | 6 m
