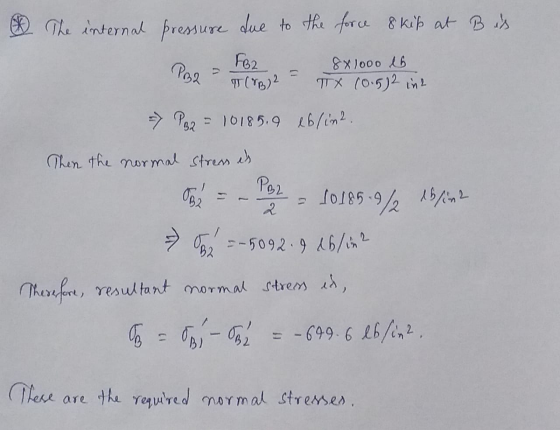

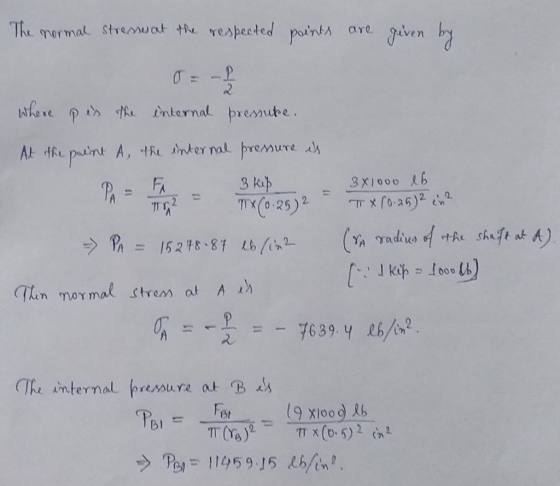

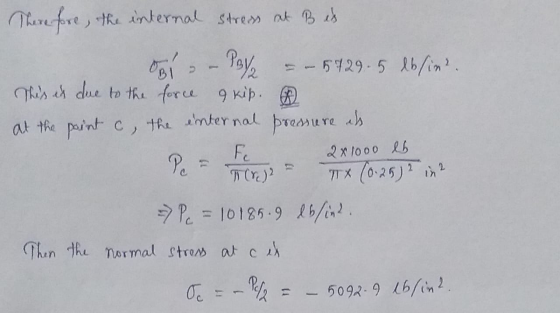

1. The circular shaft is subjected axial forces as shown below. Calculate the average normal stress...
14-2. The copper shaft is subjected to the axial loads shown. Determine the displacement of end A with respect to end D if the diameters of each segment are dal = 0.75 in., dec=1 in., and dcp=0.5 in. Take Ecu = 18(109) ksi. -80 in.-- 5 kip 150 in.- +-100 in.--- 8 kip 2 kip 6 kip D 5 kip B C 2 kip Prob. 4-2
Question # 3 A shaft is subjected to the shown axial loads. The Modulus of Elasticity is 18 x 10 psi. The diameters of rod sections are: das 0.75in,. dac-1 in., and de- 0.5 in. Determine the displacement of end A with respect to end D 80in.. ㅡ 150 in.. 100in. 5 kip 2 kip 6 kip A 5 kipB С 2kip l,
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Tmax (Tresca) and...
Problem 1 The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. Determine the displacement of end A with respect to end D and the normal stress in each section. The cross- sectional area and modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at B and C. Aluminum Copper 18(00)ksi E-29(10') ksi Steel -1010') ksi AB-0,09 in AcD 0.06 in Авс 0.1 2 i 2...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Cuau (Tresca) and...
A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute tmax (Tresca) and om (von...
Problem 3 (17 points) The two static forces are applied to a circular 1-in diameter shaft as shown. The shaft is made from 1045 CD Steel with a yield strength of 77 ksi. 8 in 1000 lbf 1 in dia. Cross section at the wall 800 lbf (2) a) Identify the location of the most critical stress element. (A. E, F or D?) (10) b) Determine the stresses and draw the stresses on the critical element identified in part a)....
a solid circular shaft of radius a is subjected to the
combined axial load P, bending moment M, and torsional moment T
shown. Assume that M = Pa/2 and T = Pa/2. The axial load is
constant while the moments M and T are completely reversed cyclic
(recall, completely reversed cyclic means having the same amplitude
in positive and negative sense in a cycle). The material of the
shaft has the yield stress of 300 MPa and endurance limit of...
The copper shaft is subjected to the axial loads shown in (Figure 1). Figure < 1 of 1 Part A Determine the displacement of end A with respect to end D if the diameters of each segment are d AB = 19 mm, dec = 27 mm, dcp = 14 mm Take Ecu = 126 GPa. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of contraction and positive value in...
A circular column segment, shown in Figure 2, is subjected to a concentric 1,000 kN compression force, and 100 kNm torsional forces. For this column segment: a Calculate the normal stress at point A, due to the axial load b) Calculate the shear stress at point A, due to the applied torque c Determine the major and minor principal stresses, the maximum shear stress, and the angle to the principal axes at point A. d) Draw a diagram illustrating the...
