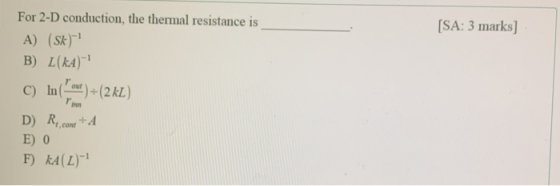

![[SA: 3 marks] For 2-D conduction, the thermal resistance is A) (Sk) B) L(ka) C) In ( ) + (2 KL) D) R..come + A E) 0 F) kA(L)](http://img.homeworklib.com/questions/b54febb0-5822-11eb-8208-57a2fbc1f3c3.png?x-oss-process=image/resize,w_560)
Homework Answers
Q = T1 - T2 / R
where,
R is thermal resistance
Q = T1 - T2 / (L / KA)
R = L / KA
R = L (KA)-1
Ans B
Please rate my answer. Thank You.
