Question

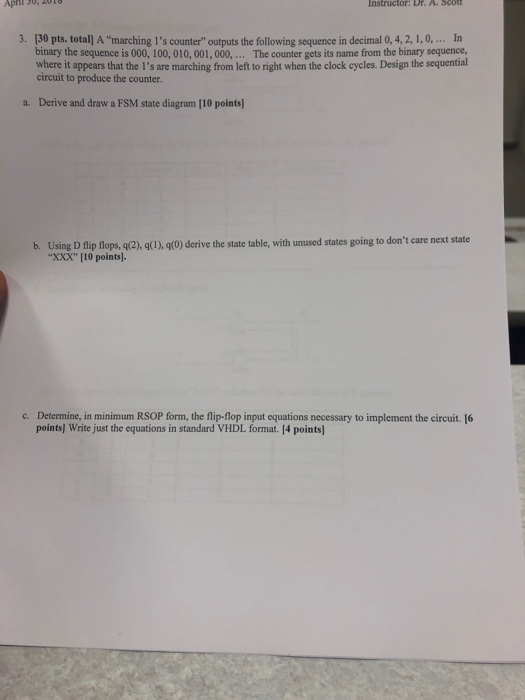

Instructor: Dr. A,Sctt 3. 130 pts. totall A marching Is counter outputs the following sequence in decimal 0, 4,2, 1,0,... In The counter gets its name from the binary sequence, binary the sequence is 000, 100, 010, 001, 000, where it appears that the Is are marching from left to right when the clock cycles. Design the sequential circuit to produce the counter. Derive and draw a FSM state diagram [10 points) a. b. Using D fip lops,(), g(1), (o) derive the state table, with unused states going to dont care next state XXX [10 points)- c. Determine, in minimum RSOP form, the flip-flop input equations necessary to implement the circuit.6 points) Write just the equations in standard VHDL format. [4 points)
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Instructor: Dr. A,Sctt 3. 130 pts. totall A "marching I's counter" outputs the following sequence in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Design a 3-bit down counter FSM with no inputs and three outputs. Do this using a...

    Design a 3-bit down counter FSM with no inputs and three outputs. Do this using a T flip flop. a. Draw a state diagram and the corresponding state table. b. Derive the equations for output functions and flip-flop input functions c. Draw the logic circuit diagram

  • Circuit : Custom up/down counter P3.    Count Sequence          Generate a random sequence of 8 distinct...

    Circuit : Custom up/down counter P3.    Count Sequence          Generate a random sequence of 8 distinct numbers between 0 and 7.          Start at any number, and not “in order”,13576420          Document your count sequence in the Lab Notebook. P4.    State Diagram          Create an FSM state diagram to cycle through your count sequence.          Implement forward and backward counting, based on X (1 = forward, 0 = backward).          Include a diagram. Create it with software or very neatly...

  • 3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop.

     3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop. 4. Design a counter to count with T flip-flops that goes through the following binary repeated sequence: 0,1,3,7,6,4. Find out the counter response towards the unused state. Illustrate the response with a state diagram. 5. Design a mod-7 counter (repeat binary sequence: 0,1,2,3,4,5,6) use JK flip-flop.

  • (4 pts) Write a behavioral Verilog module to implement a counter that counts in the following seq...

    Verilog! NOT VHDL Please (4 pts) Write a behavioral Verilog module to implement a counter that counts in the following sequence: 000, 010, 100, 110, 001, 011, 101, 111, (repeat) 000, etc. Use a ROM and D flip-flops. Create a test bench for your counter design and run functional simulation in ModelSim. (4 pts) Write a behavioral Verilog module to implement a counter that counts in the following sequence: 000, 010, 100, 110, 001, 011, 101, 111, (repeat) 000, etc....

  • 1. Consider the following 7-bit binary sequence "1010001" a. Assuming the sequence is 7-bit unsigned binary,...

    1. Consider the following 7-bit binary sequence "1010001" a. Assuming the sequence is 7-bit unsigned binary, convert it to decimal. [5 points] b. Assuming the sequence is 7-bit 2's complement format, convert it to decimal. (5 points c. What is the range of numbers (in decimal) that can be represented using 7-bit binary, signed 2's complement format? [5 points 2. Consider the following Boolean function: F(x, y, z) = (x + y)z'+xy! a. Implement the circuit for the function using...

  • 14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal...

    14? 14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...

  • Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3,...

    Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. - Show the circuit's state table with the present-state entries in ascending order, which should have the present state (t), next state (t+1), and flip-flop inputs. - Find the flip-flop input equations for RC, RB, and RA in Product of Sums form.

  • Finite state machine (FSM) counter design: Gray codes have a useful property in that consecutive numbers differ in only a single bit position. Table 1 lists a 3-bit modulo 8 Gray code representing the...

    Finite state machine (FSM) counter design: Gray codes have a useful property in that consecutive numbers differ in only a single bit position. Table 1 lists a 3-bit modulo 8 Gray code representing the numbers 0 to 7. Design a 3-bit modulo 8 Gray code counter FSM. a) First design and sketch a 3-bit modulo 8 Gray code counter FSM with no inputs and three outputs, the 3-bit signal Q2:0. (A modulo N counter counts from 0 to N −...

  • Question 4 State Machines (25 marks) a. (5 marks) A 3-bit Gray code counter advances on...

    Question 4 State Machines (25 marks) a. (5 marks) A 3-bit Gray code counter advances on positive clock edges and generates outputs in the sequence: 000, 001, 011, 010, 110, 111, 101, 100. Draw the assigned state table for a state machine implementing this counter. b. (10 marks) For the Gray code counter in part a, derive (unoptimised) equations for the next state as a function of the current state. c. (10 marks) Consider the following sequence detector. In each...

  • As we discussed in the lecture, you need to design the sequence recognizers in slide 24...

    As we discussed in the lecture, you need to design the sequence recognizers in slide 24 and slide 25 by using: a. D-FF b. JK-FF c. T-FF d. combination of D & JK & T Flip-flop these are the slides he talking about. Sequence recognizer (Moore) • A sequence recognizer is a special kind of sequential circuit that looks for a special bit pattern in some input • The recognizer circuit has only one input, X - One bit of...
