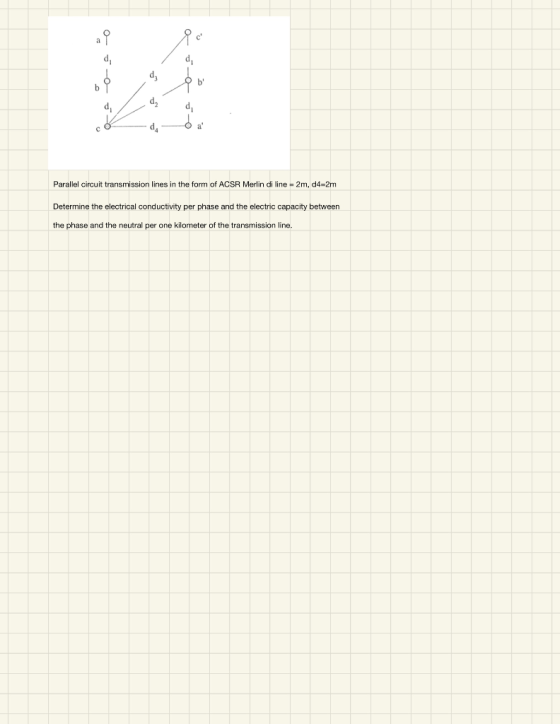

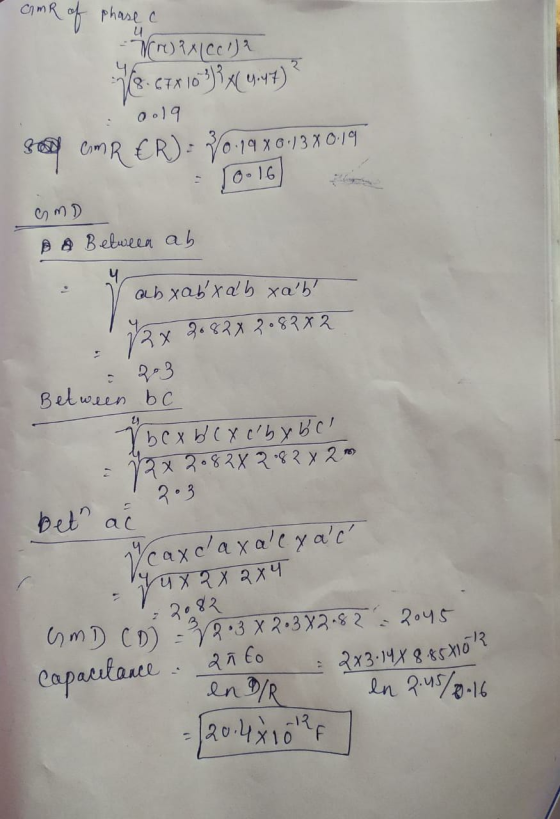

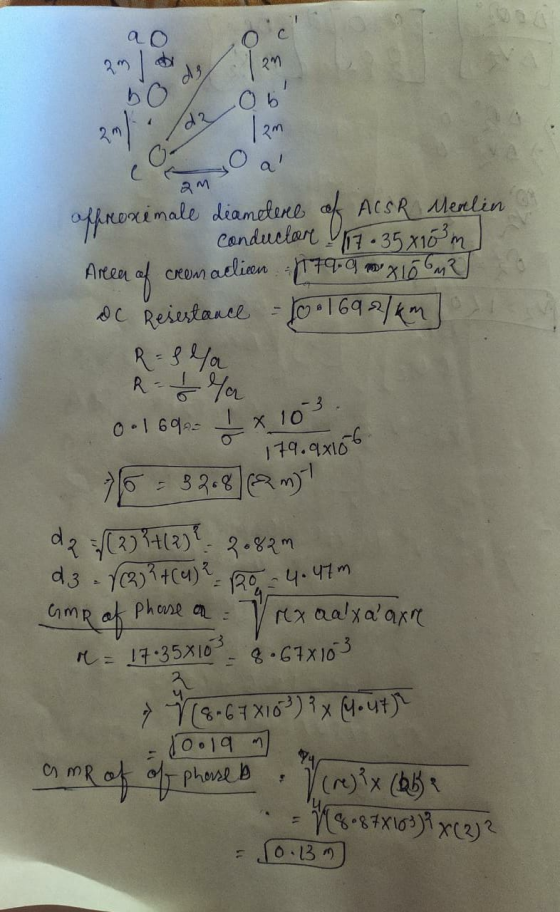

Parallel circuit transmission lines in the form of ACSR Merlin di line = 2m, d4-2m Determine...
A 3-phase, 60-Hz transmission line consisting of one ACSR Bluejay conductor per phase has a spacing...
A 3-phase, 60-Hz transmission line consisting of one ACSR Bluejay conductor per phase has a spacing of 9 m between conductors. The transmission line is 100 miles long and delivers 40 MW at 220 kV with a 0.9 pf lagging. Determine Voltage, current, and power factor at the sending end Voltage regulation and efficiency
Problem 4 (10 points) A three-phase, 60 Hz, completely transposed overhead transmission line has one Redwing...
Problem 4 (10 points) A three-phase, 60 Hz, completely transposed overhead transmission line has one Redwing ACSR conductor per phase. The conductors are oriented in a flat, horizontal configuration with 5 meter spacings between A and B, 5 meter spacing between B and C, and 10 meters between A and C. What is the inductive reactance for a 10 mile length of this transmission line? Problem 5 (10 points) a.) Calculate the capacitance-to-neutral (F/m) for the transmission line of problem...
Problem #1 Part I (50 points) Consider the following one-line diagram of a three-phase power system. Assume that the system has the following base quantities: S3 100 MVA, and VbaselL 38 kV at the...
Problem #1 Part I (50 points) Consider the following one-line diagram of a three-phase power system. Assume that the system has the following base quantities: S3 100 MVA, and VbaselL 38 kV at the generator side. The rated line-to-line terminal voltage of the generator (BUS 1) is 38 kV. A single-circuit three-phase transposed overhead line composed by one ACSR Partridge conductor per phase with vertical configuration. The transmission line length is 50 km and the distance between phases a-b, b-c...
I need help to solve this questions about Generator Governor Droop and Transmission Line. A complete...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
Fig Qshows the one-line diagram of a three-phase power system. As shown in Fig. Q3. the...
Fig Qshows the one-line diagram of a three-phase power system.
As shown in Fig. Q3. the two zones are connected by a 400 MVA,
240-kV/24-kV, Ý-A three phase transformer. The Y-A three phase
transfonmer has an equivalent series impedance of ZTH - 1.2 + j1.6n
per phase referred to the high voltage side (primary side). The
three-phase power system can be studied with per unit quantities
using base values of S-500 MVA and 240 kV in zone 1.
By using...
solve no: 3.14 , 3.16, 3.19 please show each step and solve for beginners 120 Power...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
Bob places a neutrally charged conducting ball next to a large, charged plate. The conducting ball...
Bob places a neutrally charged conducting ball next to a large, charged plate. The conducting ball is weakly attracted to the plate. What is the net charge on the plate? 1. a) Positive b) Negative c) Neutral (i.e., zero charge) d) Either positive or negative, but it is impossible to tell which A +1 C charge is at the origin, and a second +1 C charge is at position (x,y)-(2 m, 0). How much work is required to move the...
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
Write down your analysis of this case on factors like the interests involved, context and power...
Write down your analysis of this case on factors like the interests involved, context and power PACIFIC OIL COMPANY (A)* "Look, you asked for my advice, and I gave it to you," Frank Kelsey said. "If I were you, I wouldn't make any more concessions! I really don't think you ought to agree to their last demand! But you're the one who has to live with the contract, not me!" Static on the transatlantic telephone connection obscured Jean Fontaine's reply....
A 3-phase, 60-Hz transmission line consisting of one ACSR Bluejay conductor per phase has a spacing of 9 m between conductors. The transmission line is 100 miles long and delivers 40 MW at 220 kV with a 0.9 pf lagging. Determine Voltage, current, and power factor at the sending end Voltage regulation and efficiency
Problem 4 (10 points) A three-phase, 60 Hz, completely transposed overhead transmission line has one Redwing ACSR conductor per phase. The conductors are oriented in a flat, horizontal configuration with 5 meter spacings between A and B, 5 meter spacing between B and C, and 10 meters between A and C. What is the inductive reactance for a 10 mile length of this transmission line? Problem 5 (10 points) a.) Calculate the capacitance-to-neutral (F/m) for the transmission line of problem...
Problem #1 Part I (50 points) Consider the following one-line diagram of a three-phase power system. Assume that the system has the following base quantities: S3 100 MVA, and VbaselL 38 kV at the generator side. The rated line-to-line terminal voltage of the generator (BUS 1) is 38 kV. A single-circuit three-phase transposed overhead line composed by one ACSR Partridge conductor per phase with vertical configuration. The transmission line length is 50 km and the distance between phases a-b, b-c...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
Fig Qshows the one-line diagram of a three-phase power system.
As shown in Fig. Q3. the two zones are connected by a 400 MVA,
240-kV/24-kV, Ý-A three phase transformer. The Y-A three phase
transfonmer has an equivalent series impedance of ZTH - 1.2 + j1.6n
per phase referred to the high voltage side (primary side). The
three-phase power system can be studied with per unit quantities
using base values of S-500 MVA and 240 kV in zone 1.
By using...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
Bob places a neutrally charged conducting ball next to a large, charged plate. The conducting ball is weakly attracted to the plate. What is the net charge on the plate? 1. a) Positive b) Negative c) Neutral (i.e., zero charge) d) Either positive or negative, but it is impossible to tell which A +1 C charge is at the origin, and a second +1 C charge is at position (x,y)-(2 m, 0). How much work is required to move the...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
