Question

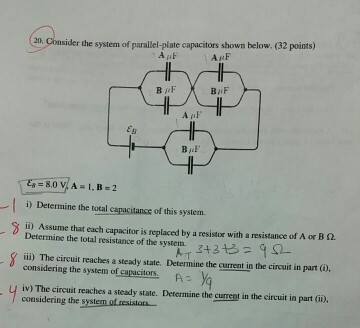

Consider the system of parallel-plane capacitor sh


please help

0 0
Add a comment Improve this question Transcribed image text
Answer #1

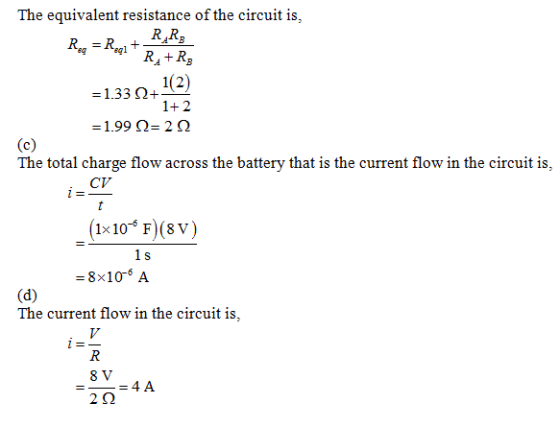

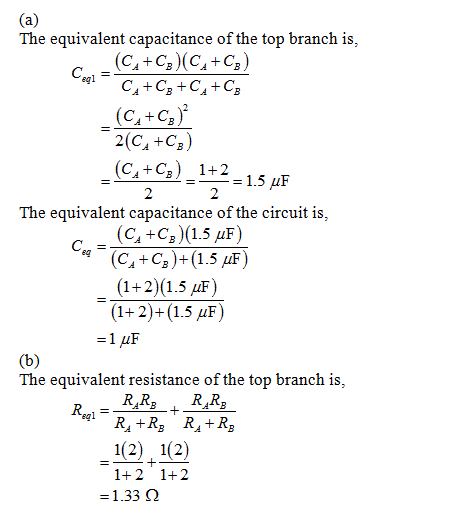

The equivalent resistance of the circuit is, R Ra 1(2) The total charge flow across the battery that is the current flow in t

Add a comment
Know the answer?
Add Answer to:
please help Consider the system of parallel-plane capacitor shown below Determine the total capacitance of this...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Consider a capacitor of capacitance C initially charged with charge Q. A second initially uncharged capacitor,...

    Consider a capacitor of capacitance C initially charged with charge Q. A second initially uncharged capacitor, also of capacitance C, is subsequently connected in parallel to the first capacitor. It is straight forward to show that charge state of the combined system, when it reaches equilibrium, is one where the charge divides between the capacitors, so that each capacitor now carries charge Q=2. However, it is interesting to note that the energy stored in the capacitors has changed between the...

  • Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance.

    Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)A Immediately after the switch is closed, what is the voltage across the capacitor?B Complete previous part(s) C Immediately after the switch is closed, what is the direction of the current in the circuit? E Eventually,...

  • Consider the circuit shown in the figure below. (Assume R = 10.5.2, R2 = 2.852, and...

    Consider the circuit shown in the figure below. (Assume R = 10.5.2, R2 = 2.852, and V = 7.60 V.) R 4.00 12 5.00 12 3.00 12 w (a) Calculate the equivalent resistance of the R. and 5.00-12 resistors connected in parallel. (b) Using the result of part (a), calculate the combined resistance of the Ry, 5.00-12 and 4.00-12 resistors. (c) Calculate the equivalent resistance of the combined resistance found in part (b) and the parallel 3.00-12 resistor. (d) Combine...

  • Help me please :) Consider two parallel plate capacitors.   The plates on Capacitor B have twice...

    Help me please :) Consider two parallel plate capacitors.   The plates on Capacitor B have twice the area as the plates on Capacitor A, but the plates in both Capacitor B and Capacitor A are separated by 100~ \mu \text{m}100 μm of air. If Capacitor A has a capacitance of C_A = 30.4 nFC​A​​=30.4nF, what is the capacitance of Capacitor B? Show work please!

  • number 7 please 1. Find the capacitance of a conductive sphere of radius 1.0fm charged with...

    number 7 please 1. Find the capacitance of a conductive sphere of radius 1.0fm charged with 1.60 10-19C. 2. Now a conductive sphere of charge -1.60 10-1°C and radius of -1.0 10-10m is placed concentric to the sphere of the problem 1. Find the combined capacitance of the two together 3. Find the capacitance of two spherical capacitors of the type in problem two placed in 4. Find the time constant for charging the configuration in problem 3 if the...

  • (a) In the capacitor circuit shown below, what is the total capacitance of the circuit (10...

    (a) In the capacitor circuit shown below, what is the total capacitance of the circuit (10 pt). (b) What is the time constant (T) for the circuit (5 pt)? (c) After the switch is closed, how long will it take for the capacitors to charge to 90% of their final charge (10 pt)? 2uF 4uF 750092 5 V switch

  • Answer a, b, c, d A circuit consists of a resistor R connected in series with a capacitor C, as shown in Fig.1 EL Eo Fig 1. The capacitor C is connected in series with the resistor R The equation...

    Answer a, b, c, d A circuit consists of a resistor R connected in series with a capacitor C, as shown in Fig.1 EL Eo Fig 1. The capacitor C is connected in series with the resistor R The equation which describes this circuit when subject to a step function is given below di 0.3.21-9 dt a) What is the time constant r of this system? b) Assume zero initial condition (0 when r0), find the solution i() of the...

  • Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

    Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...

  • Answer: 96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch...

    Answer: 96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch is closed and after a long time the capacitor is fully charged. (a) What is the current through each resistor a long time after the switch is closed? (b) What is the voltage across each resistor a long time after the switch is closed? (c) What is the voltage across the capacitor a long time after the switch is closed? (d) What is the...

  • please help Problem 4 a) Calculate the equivalent capacitance in the circuit that is shown here....

    please help Problem 4 a) Calculate the equivalent capacitance in the circuit that is shown here. All capacitors are identical and have a capacitance of 10 uF. b) The potential difference (or voltage) between the two plates of G is 5 V. What is the potential difference between point A and point B? (Assume that all the wires are ideal conductors, that means they do not cause a drop in potential as resistors do). Explain your answer.
