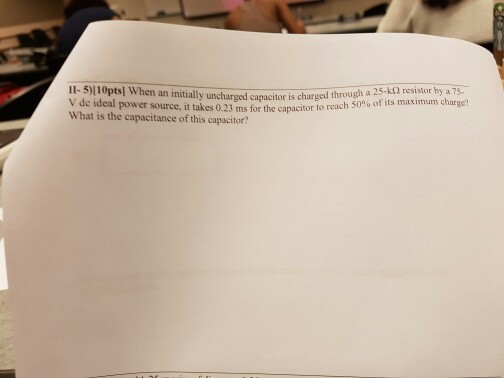

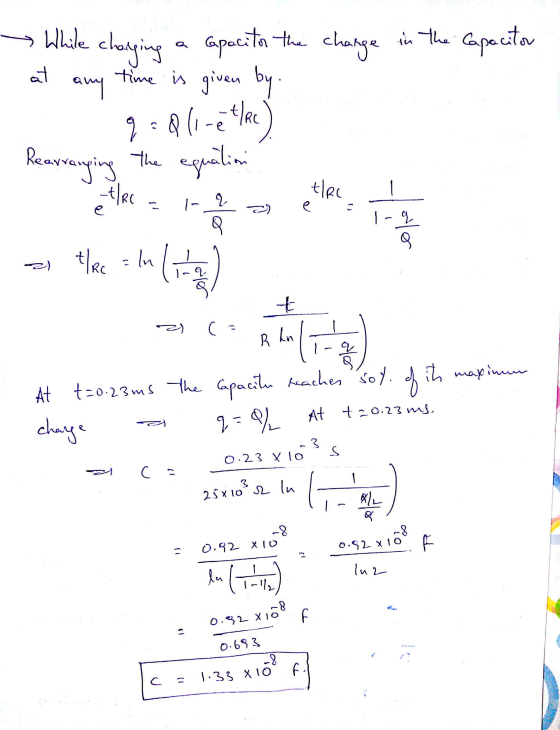

When an initially uncharged capacitor is charged through a 25 - k omega resistor by a...
a 50 μF capacitor initially uncharged is connected through a 300 resistor to a 12V battery....
a 50 μF capacitor initially uncharged is connected through a
300 resistor to a
12V battery. FInd the final charge on the capacitor. How long does
it take the capacitor to reach half its final charge?
Problem 26.84 A resistor with 760 omega is connected to the plates of a charged capacitor...
Problem 26.84 A resistor with 760 omega is connected to the plates of a charged capacitor with capacitance 4.76 muF . Just before the connection is made, the charge on the capacitor is 9.00 mC.What is the energy initially stored in the capacitor? Part B What is the electrical power dissipated in the resistor just after the connection is made?Part C What is the electrical power dissipated in the resistor at the instant when the energy stored in the capacitor...
A capacitor that is initially uncharged is connected in series with a resistor and an emf...
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500 resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d....
A capacitor that is initially uncharged is connected in series with a resistor and a 407.1...
A capacitor that is initially uncharged is connected in series with a resistor and a 407.1 Vemf source with negligible internal resistance. Just after the circuit is completed, the current through the resistor is 0.850 mAand the time constant for the circuit is 6.20 s. Part A: What is the resistance of the resistor? Part B: What is the capacitance of the capacitor
You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does...
You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does it take to charge the capacitor to 80% of its maximum voltage through a 1.5-M2 resistor? Assume its maximum voltage is the same as the battery. 2b. If initially fully charged, how long would it take to discharge the capacitor to 30% of its maximum voltage through a 2.4-MΩ resistor?
An uncharged capacitor and a resistor are connected in series to a source of emf. If...
An uncharged capacitor and a resistor are connected in series to a source of emf. If emf=9.00 V, capacitance=21.5 ?F, and resistance=127Ω, find (a) the time constant of the circuit. After 1.30 ms, find (b) the charge on the capacitor, (c) the voltage drop across the capacitor, (d) the voltage drop across the resistor, and (e) the current.
A 2.36-uF capacitor that is initially uncharged is connected in series with a 5.86-2 resistor and...
A 2.36-uF capacitor that is initially uncharged is connected in series with a 5.86-2 resistor and an emf source with E = 120 V and negligible internal resistance. (a) Just after the connection is made, what are (i) the rate at which electrical energy is being dissipated in the resistor; () the rate at which the electrical energy stored in the capacitor is increasing: (ii) the electrical power output of the source? How do the answers to parts (i), (),...
THQ-1 (5-points) An initially charged capacitor is discharged through a resistor: C a) Will the capacitor...
THQ-1 (5-points) An initially charged capacitor is discharged through a resistor: C a) Will the capacitor discharge faster or slower if the resistance is increased (using the same amount of initial charge)? b) Will the capacitor discharge faster or slower if the capacitance is increased (using the same amount of initial charge)? c) As the capacitor discharges, does the magnitude of the current through the resistor increase or decrease in time? d) As the capacitor discharges, what is the magnitude...
A battery, a resistor of resistance R, and an initially uncharged capacitor of capacitance C are...
A battery, a resistor of resistance R, and an initially uncharged capacitor of capacitance C are connected in series. At what time does the capacitor voltage reach 90% of the battery voltage? Assume that the battery has no internal resistance.
a 50 μF capacitor initially uncharged is connected through a
300 resistor to a
12V battery. FInd the final charge on the capacitor. How long does
it take the capacitor to reach half its final charge?
Problem 26.84 A resistor with 760 omega is connected to the plates of a charged capacitor with capacitance 4.76 muF . Just before the connection is made, the charge on the capacitor is 9.00 mC.What is the energy initially stored in the capacitor? Part B What is the electrical power dissipated in the resistor just after the connection is made?Part C What is the electrical power dissipated in the resistor at the instant when the energy stored in the capacitor...
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does it take to charge the capacitor to 80% of its maximum voltage through a 1.5-M2 resistor? Assume its maximum voltage is the same as the battery. 2b. If initially fully charged, how long would it take to discharge the capacitor to 30% of its maximum voltage through a 2.4-MΩ resistor?
A 2.36-uF capacitor that is initially uncharged is connected in series with a 5.86-2 resistor and an emf source with E = 120 V and negligible internal resistance. (a) Just after the connection is made, what are (i) the rate at which electrical energy is being dissipated in the resistor; () the rate at which the electrical energy stored in the capacitor is increasing: (ii) the electrical power output of the source? How do the answers to parts (i), (),...
THQ-1 (5-points) An initially charged capacitor is discharged through a resistor: C a) Will the capacitor discharge faster or slower if the resistance is increased (using the same amount of initial charge)? b) Will the capacitor discharge faster or slower if the capacitance is increased (using the same amount of initial charge)? c) As the capacitor discharges, does the magnitude of the current through the resistor increase or decrease in time? d) As the capacitor discharges, what is the magnitude...
