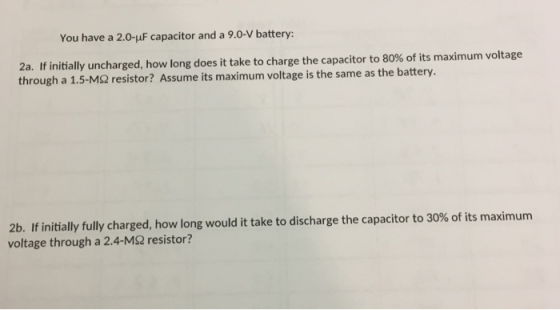

You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does...

Question

Question

science physics

Answer 1

Answer #1

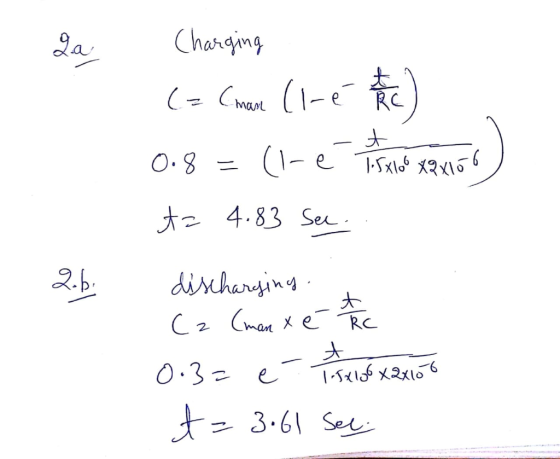

Chergyng た4.83 Ser

Answer 2

Similar Homework Help Questions

A 2.0 uF capacitor in a circuit in series with a resistance of 1.9 MΩ is...

A 2.0 uF capacitor in a circuit in series with a resistance of 1.9 MΩ is charged with a 6.0-V battery. How long would it take to charge the capacitor to three-fourths of its maximum voltage?
A 11.8 uF capacitor is fully charged across a 12.0 V battery. The capacitor is then...

A 11.8 uF capacitor is fully charged across a 12.0 V battery. The capacitor is then disconnected from the battery and connected across an initially uncharged capacitor, C. The resulting voltage across each capacitor is 2.66 V. What is the capacitance C?
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a...

A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a switch (initially open) are all connected in series, forming a loop. At t = 0 the switch is closed. (a) Find the initial current in the loop. (b) Find the charge on the capacitor at t = 0.100 s. (c) At what point in time will the voltage across the resistor equal 5.0 V? (d) What will be the maximum energy stored in the...

A 2.0 uf capacitor in a circuit in series with a resistance of 1.0 MOhms is...

A 2.0 uf capacitor in a circuit in series with a resistance of 1.0 MOhms is charged with a 6.0 V battery. How long would it take to charge the capacitor to 3/4 of its maximum voltage?
a 50 μF capacitor initially uncharged is connected through a 300 resistor to a 12V battery....

a 50 μF capacitor initially uncharged is connected through a 300 resistor to a 12V battery. FInd the final charge on the capacitor. How long does it take the capacitor to reach half its final charge?
A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery...

A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery and a 5 kΩ resistor. (a) What is the charge on the capacitor after a very long time? ( b) Derive expressions describing the evolution of the electric charge and of the current in time (Q(t) and I(t)). (c) How long does it take the capacitor to reach 95% of its final charge?

7)How long does it take (in sec) to charge a 127 uF capacitor to 1.2 V...

7)How long does it take (in sec) to charge a 127 uF capacitor to 1.2 V in an RC circuit with a 29 V battery and R = 9.6 kOhm ? 8) A 3427 nF capacitor charged to 10 V is connected to a 723 Ohm resistor. How long (in seconds) does it take to lose half of its stored charge?
A 12 μF capacitor is charged using a 7.0 v battery. The battery is then removed...

A 12 μF capacitor is charged using a 7.0 v battery. The battery is then removed and a 1.5 MΩ resistor is connected to the capacitor. How many seconds pass before the voltage across the resistor is 3.0 volts?
A 12 μF capacitor is charged using a 7.0 v battery. The battery is then removed...

A 12 μF capacitor is charged using a 7.0 v battery. The battery is then removed and a 1.5 MΩ resistor is connected to the capacitor. How many seconds pass before the voltage across the resistor is 3.0 volts?

A capacitor of 4 μF initially uncharged is connected with a battery of 12 V and...

A capacitor of 4 μF initially uncharged is connected with a battery of 12 V and a 10 MW resistor. a) The maximum charge on the capacitor is? b) The maximum current is? c) The capacitive time constant is?
