A 2.0 uF capacitor in a circuit in series with a resistance of 1.9 MΩ is...

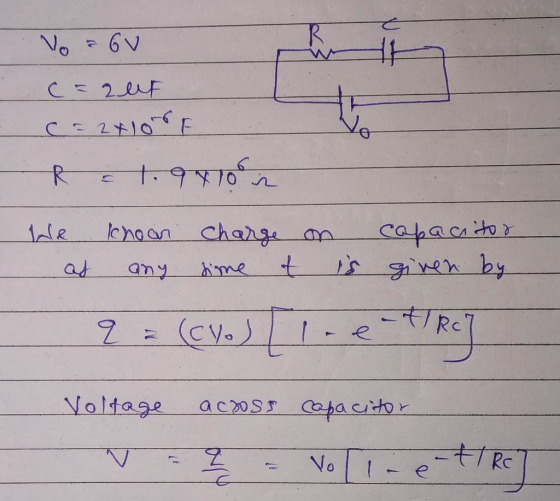

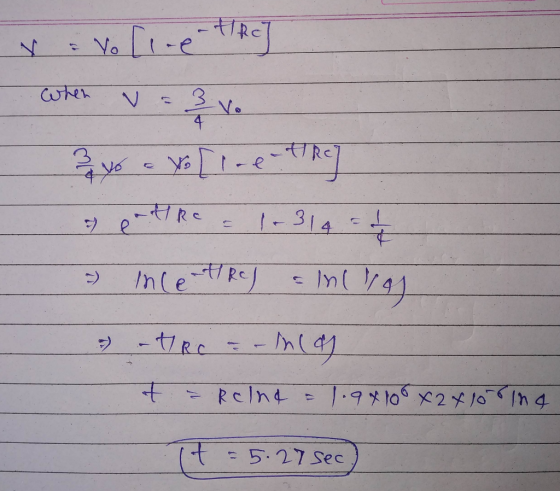

A 2.0 uF capacitor in a circuit in series with a resistance of 1.9 MΩ is charged with a 6.0-V battery. How long would it take to charge the capacitor to three-fourths of its maximum voltage?
Homework Answers
Add Answer to:
A 2.0 uF capacitor in a circuit in series with a resistance of
1.9 MΩ is...
A 2.0 uf capacitor in a circuit in series with a resistance of 1.0 MOhms is...
A 2.0 uf capacitor in a circuit in series with a resistance of 1.0 MOhms is charged with a 6.0 V battery. How long would it take to charge the capacitor to 3/4 of its maximum voltage?
A 2.0 uf capacitor in a circuit in series with a resistance of 1.0 MO is...
A 2.0 uf capacitor in a circuit in series with a resistance of 1.0 MO is charged with a 6.0 Volts vatery. How long would it take to charge the capacitor to 3/4 of its maximum voltage?
You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does...
You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does it take to charge the capacitor to 80% of its maximum voltage through a 1.5-M2 resistor? Assume its maximum voltage is the same as the battery. 2b. If initially fully charged, how long would it take to discharge the capacitor to 30% of its maximum voltage through a 2.4-MΩ resistor?
A 4.0-uF parallel-plate capacitor is charged to 6.0-volts. A series RC circuit is then formed using...
A 4.0-uF parallel-plate capacitor is charged to 6.0-volts. A series RC circuit is then formed using this capacitor, a 3.0-MS resistor, and a 12-V battery. After making the connection to the battery, how much time will it take for the capacitor reach 9.0 volts between its plates? Enter your answer in seconds to 2 sig fig without a unit.
In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C =...
In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C = 2.13 µF. (a) Calculate the time constant. (b) Find the maximum charge that will appear on the capacitor during charging. (c) How long does it take for the charge to build up to 17.7 µC?
A series circuit consisting of an uncharged 2.0-µF capacitor and a 10-MΩ resistor is connected across...
A series circuit consisting of an uncharged 2.0-µF capacitor and a 10-MΩ resistor is connected across a 100-V power source. What are the current in the circuit and the charge on the capacitor (a) after one time constant, and (b) when the capacitor has acquired 90 percent of its final charge? A- (a) 10.0 µA, 0.2 mC (b) 9.0 µA, 45.0 mC B- (a) 27.0 µA, 0.54 mC (b) 4.0 µA, 18.0 nC C-(a) 3.7 µA, 0.13 mC (b) 1.0...
7)How long does it take (in sec) to charge a 127 uF capacitor to 1.2 V...
7)How long does it take (in sec) to charge a 127 uF capacitor to 1.2 V in an RC circuit with a 29 V battery and R = 9.6 kOhm ? 8) A 3427 nF capacitor charged to 10 V is connected to a 723 Ohm resistor. How long (in seconds) does it take to lose half of its stored charge?
The capacitance in the circuit is 0.45 uF, the total resistance is 28 k? and the...
The capacitance in the circuit is 0.45 uF, the total resistance is 28 k? and the battery emf is 15V. Calculate (a) the time constant, (b) the maximum charge the capacitor could acquire, (c) the time it takes for the charge to reach 90% of this value, (d) the maximum current and (e) how much time will elapse until the voltage drops to 25% of its original max value?
helpppp 5. A 250 Q resistor is in series with 200 uF capacitor. These are connected...
helpppp
5. A 250 Q resistor is in series with 200 uF capacitor. These are connected across a 20 V battery. The switch is turned on, and the capacitor begins to fill. After the capacitor is completely filled the battery is taken out of the circuit and the leads to the battery are shorted together. (a) (6 pts) What is the time constant, the maximum current, and the maximum charge on the capacitor? (b) (6 pts) When t = 0.04...
A 1.20 uF capacitor is charged to 30.0 V and then discharged through a 1.70 MΩ...
A 1.20 uF capacitor is charged to 30.0 V and then discharged through a 1.70 MΩ resistor. Find the charge on the capacitor (in uC) after 5.20 s have passed.
You have a 2.0-uF capacitor and a 9.0-V battery: 2a. If initially uncharged, how long does it take to charge the capacitor to 80% of its maximum voltage through a 1.5-M2 resistor? Assume its maximum voltage is the same as the battery. 2b. If initially fully charged, how long would it take to discharge the capacitor to 30% of its maximum voltage through a 2.4-MΩ resistor?
A 4.0-uF parallel-plate capacitor is charged to 6.0-volts. A series RC circuit is then formed using this capacitor, a 3.0-MS resistor, and a 12-V battery. After making the connection to the battery, how much time will it take for the capacitor reach 9.0 volts between its plates? Enter your answer in seconds to 2 sig fig without a unit.
helpppp
5. A 250 Q resistor is in series with 200 uF capacitor. These are connected across a 20 V battery. The switch is turned on, and the capacitor begins to fill. After the capacitor is completely filled the battery is taken out of the circuit and the leads to the battery are shorted together. (a) (6 pts) What is the time constant, the maximum current, and the maximum charge on the capacitor? (b) (6 pts) When t = 0.04...
