7. Give an example or prove that there are none: (a)A simple graph with degree sequence...

Question

Question

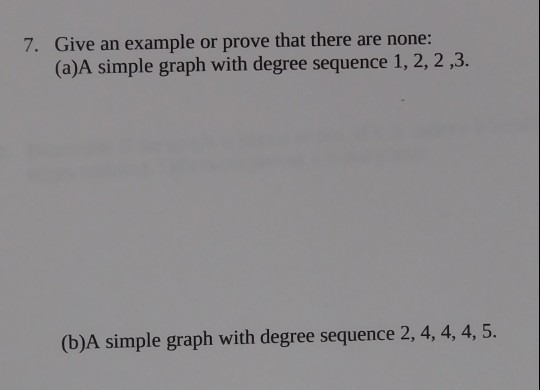

7. Give an example or prove that there are none: (a)A simple graph with degree sequence 1,2,2,3. (b)A simple graph with degre

math Advanced-Math

Answer 1

Answer #1

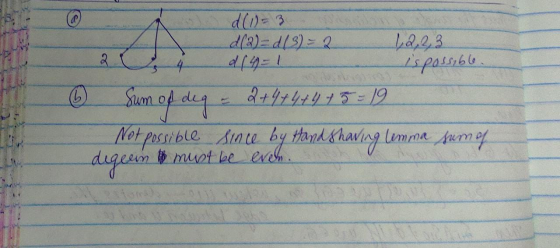

6 d(a)=/3)=2 is possible Sum of dig = 2+4+4+4 +5 = 19 Not possible since by Handshaving lemma sum of degelin must be even.
