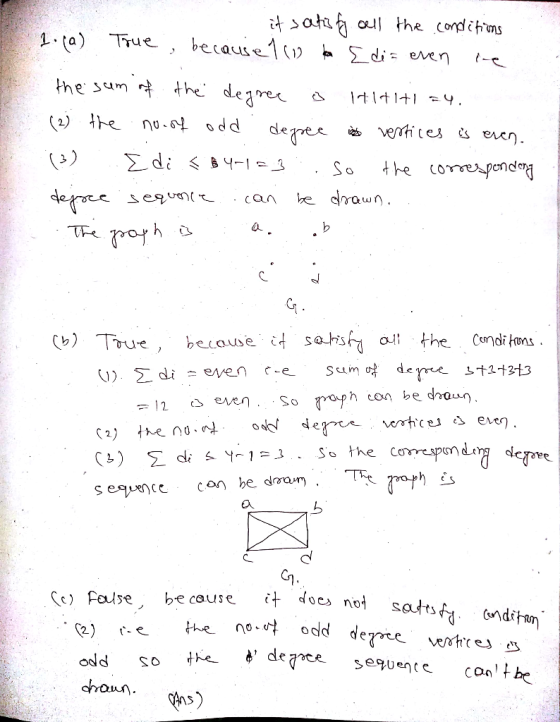

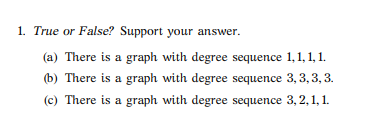

1. True or False? Support your answer. (a) There is a graph with degree sequence 1,1,1,1....
2. For each of the following, draw a (simple) graph with the corresponding degree sequence, or explain why no such graph exists. (a) A graph with degree sequence 1, 1, 1, 1. (b) A graph with degree sequence 3, 3, 2, 2, 1, 1, 1. (c) A graph with degree sequence 4, 4, 4, 4, 4, 4. (d) A graph with degree sequence 6, 5, 4, 3, 2, 1
2. (Graphs, degree sequence) If G is a simple graph with n vertices, then the degree sequence of G is a list a1, a2, a3, . . . , an of the degrees of all of the vertices of G in decreasing order. For instance, the degree sequence of the graph G drawn here is 3, 2, 2, 2, 2, 2, 1, 0. (a) Sketch a graph with the degree sequence 4, 3, 2, 2, 2, 1, and a graph...
Can the sequence 6, 5, 4, 3, 2, 1 be the degree sequence of a simple graph? Select an answer and submit. For keyboard navigation, use the up/down arrow keys to select an answer. a Yes b No Can the sequence 2, 2, 2, 2, 2, 2 be the degree sequence of a simple graph? Select an answer and submit. For keyboard navigation, use the up/down arrow keys to select an answer. a Yes Selv b No Can the sequence...
Answer True or False. Briefly explain your answer and use the proper diagram when needed. No credit without explanation. b (15 points) True or False: Under sticky prices, an increase in the money supply cause an increase in the interest rate to preserve the money market equilibrium. Support your answer with a graph of the money market and with the money market equilibrium equation.
Question 3 A graph has degree sequence 8,6,5,5,4,4,3,3. How many edges does it have? Input your answer as a single number. Selected Answer: [None Given]
The degree sequence of the simple graph G is 17, 7, 5, 4, 4, 2, 2,1 (a) How many edges does G have? (Briefly explain your answer.) (b) What is the degree sequence of G (Briefly explain your answer.)
Choose the true statement. There exists a graph with 7 vertices of degree 1, 2, 2, 3, 4, 4 and 5, respectively. the four other possible answers are false There exists a bipartite graph with 14 vertices and 13 edges. There exists a planar and connected graph with 5 vertices, 6 edges and 4 faces. There exists a graph with 5 vertices of degree 2, 3, 4, 5 and 6, respectively.
Give an example of a graph with two components that has degree sequence (1, 1, 1, 1, 1, 3, 3, 3). Discrete MathematicS
7. Give an example or prove that there are none: (a)A simple graph with degree sequence 1,2,2,3. (b)A simple graph with degree sequence 2,4,4,4,5.
Indicate whether you think the following statements are true, false or uncertain. Support your answer by giving all necessary reasoning and calculations: b) According to the quantity theory of money, “inflation is always and everywhere a monetary phenomenon.”
