Question

Can someone break this down and explain to me why the answers are the way they are? I can’t seem to get those answers.

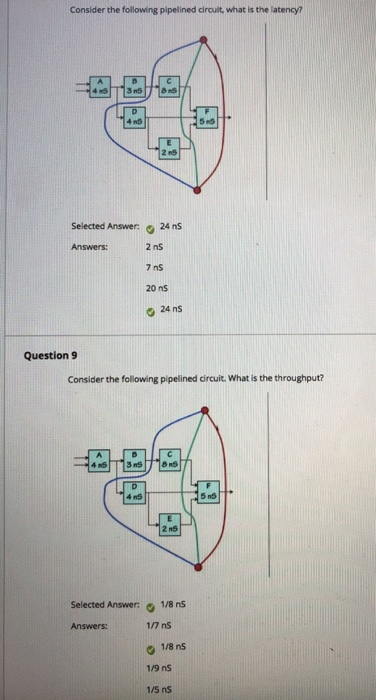

Consider the following pipelined circuit, what is the latency? Selected Answer: 24ns 2 ns 7 ns 20 ns G 24 ns Answers: Question 9 Consider the following pipelined circuit. What is the throughput? 4 ns 5 nS Selected Answer:1/8 ns Answers: 1/7 ns 1/8 ns 1/9 nS 1/5 ns

Answer 1

8)

For pipelining we select the maximum stage time/ slowest stage time (step of each instruction) as one step of pipeline

Number of pipeline stage = 3

Latency = 8 x 3 = 24 ns

So, latency is 24 ns

9) Throughput = 1/max pipeline stage delay

= 1/8 ns
