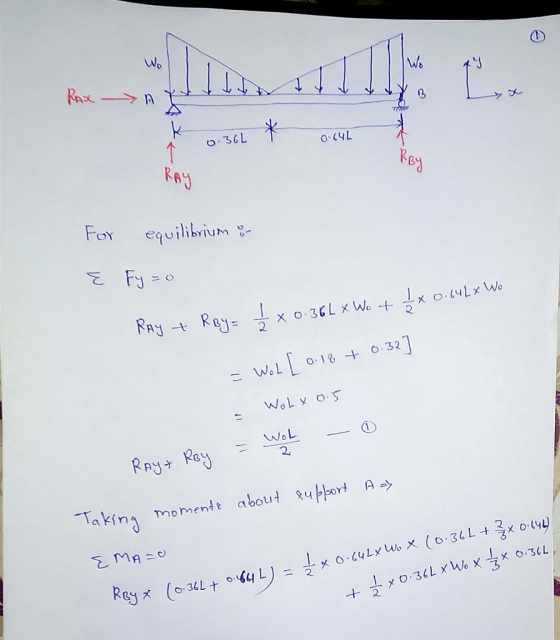

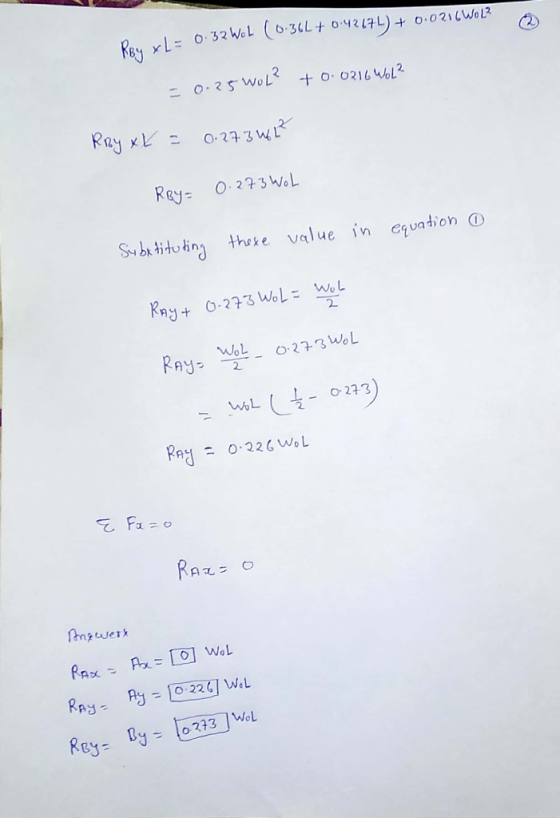

![x 0.646 ↑ 0.36L * For equilibrium & E Fy zo Ray + Roy = x 0.36L x Wot 1 x 0.64L x Wo = WoL [ 0.18 + 0.32] Wolx 0.5 - 0 = WOL](http://img.homeworklib.com/questions/dac4c0d0-65ae-11eb-a862-1fd3985e23bc.png?x-oss-process=image/resize,w_560)
Add Answer to:
(Statics)
Please explain step by step

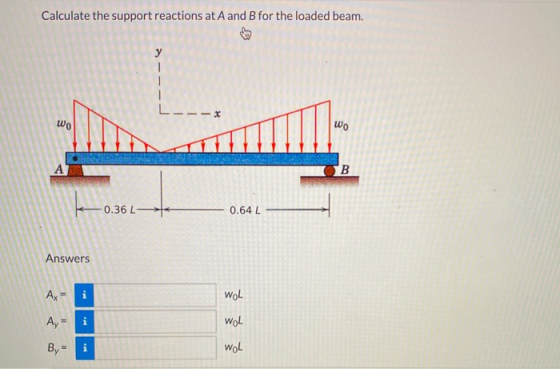

Calculate the support reactions at A and B for the...
Statics For the beam shown below. determine the support reactions ay and y. Given the following...
Statics
For the beam shown below. determine the support reactions ay and y. Given the following beam details ow-m-10 cm.xyom.mx25m w B cmc X1 X1 X2 X2 - Select the closest choice to your solution and ONLY TYPE THE LETTER IN THE BLANK (A, B, C, D, E). (upward direction is positive. Il downward direction is negative) (01) The reaction force Ay in N is equal to: A Ay - 389.2 KN B. Ay *-780.8 KN C Ay - 1284.4...
Solve the following problems: (25 pts. each) Problem 1 Determine the support reactions then draw the...
Solve the following problems: (25 pts. each) Problem 1 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below P !!K LR4 Problem 2 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below 구K 4.5 ,81 7 Problem 3 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below. Ptok Problem 4...
a 16' span beam is loaded as shown. determine: support reactions at b & c Shear...
a 16' span beam is loaded as shown. determine:
support reactions at b & c
Shear diagram & peak points
Momet diagram
Max bending stress
6k (1) 3k/ft Ab C 4 4
statics need asap clear answers please solve for the unknown reactions. 0.3 m x A 0.4m...
statics
need asap
clear answers please
solve for the unknown reactions.
0.3 m x A 0.4m 0.2m B F
0.3 m x A 0.4m 0.2m B F
Statics 5- The beam shown below has an internal hinge at point C. Support A is...
Statics
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b- solve for the reaction forces at support A and D (5 point) Ay (5 points) A- (5 point) Am (5 points) D- SOK 3K/A B 10.17 10 ft 10 ft *
Support Reactions for a point – loaded, Simply Supported Beam lab write Objective only
Support Reactions for a point – loaded, Simply Supported Beam lab write Objective only
1) Determine the reactions at the supports for the structures shown. The support at A is...
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
please answer correctly!! 12 KN 3 kN/m Fixed support B А Roller support 3 m 3...
please answer correctly!!
12 KN 3 kN/m Fixed support B А Roller support 3 m 3 m A beam is fixed at A and supported by a roller at B. The beam has E = 100 GPa and I 1.0 x 10-5 m4. For the loading shown, complete the following: 1. Calculate the magnitude and direction of all reactions at A. 2. Calculate the magnitude and direction of all reactions at B. 3. Calculate the magnitude and direction of the...
Please explain each step. Thank you in advance. 24. Give the following step reactions: Reaction AH...
Please explain each step. Thank you in advance.
24. Give the following step reactions: Reaction AH (KJ) 2C - A+B -127.6 D+ E- C 29.4 Calculate the AHæn for the reaction: A+B →D + 2 E
Statics Answer ASAP Make sure the work is clear Thank you 2. The beam shown is...
Statics
Answer ASAP
Make sure the work is clear
Thank you
2. The beam shown is supported by a pin at point A and a roller at point B. Draw the free-body diagram and determine the reactions at each support. 5 kips 4 kips 6 kips 3'-0" 7-0 6'-0 4'-0" L = 20-0"
Statics
For the beam shown below. determine the support reactions ay and y. Given the following beam details ow-m-10 cm.xyom.mx25m w B cmc X1 X1 X2 X2 - Select the closest choice to your solution and ONLY TYPE THE LETTER IN THE BLANK (A, B, C, D, E). (upward direction is positive. Il downward direction is negative) (01) The reaction force Ay in N is equal to: A Ay - 389.2 KN B. Ay *-780.8 KN C Ay - 1284.4...
Solve the following problems: (25 pts. each) Problem 1 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below P !!K LR4 Problem 2 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below 구K 4.5 ,81 7 Problem 3 Determine the support reactions then draw the shear and bending moment diagrams for the beam loaded as shown below. Ptok Problem 4...
a 16' span beam is loaded as shown. determine:
support reactions at b & c
Shear diagram & peak points
Momet diagram
Max bending stress
6k (1) 3k/ft Ab C 4 4
statics
need asap
clear answers please
solve for the unknown reactions.
0.3 m x A 0.4m 0.2m B F
0.3 m x A 0.4m 0.2m B F
Statics
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b- solve for the reaction forces at support A and D (5 point) Ay (5 points) A- (5 point) Am (5 points) D- SOK 3K/A B 10.17 10 ft 10 ft *
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
please answer correctly!!
12 KN 3 kN/m Fixed support B А Roller support 3 m 3 m A beam is fixed at A and supported by a roller at B. The beam has E = 100 GPa and I 1.0 x 10-5 m4. For the loading shown, complete the following: 1. Calculate the magnitude and direction of all reactions at A. 2. Calculate the magnitude and direction of all reactions at B. 3. Calculate the magnitude and direction of the...
Please explain each step. Thank you in advance.
24. Give the following step reactions: Reaction AH (KJ) 2C - A+B -127.6 D+ E- C 29.4 Calculate the AHæn for the reaction: A+B →D + 2 E
Statics
Answer ASAP
Make sure the work is clear
Thank you
2. The beam shown is supported by a pin at point A and a roller at point B. Draw the free-body diagram and determine the reactions at each support. 5 kips 4 kips 6 kips 3'-0" 7-0 6'-0 4'-0" L = 20-0"
