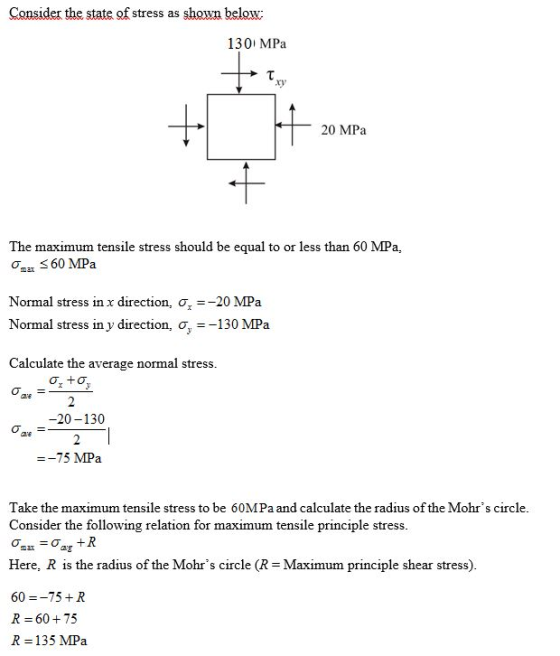

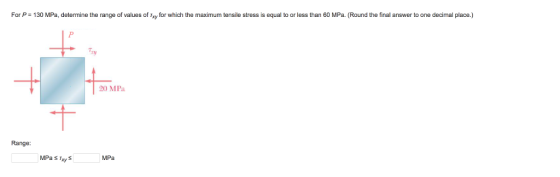

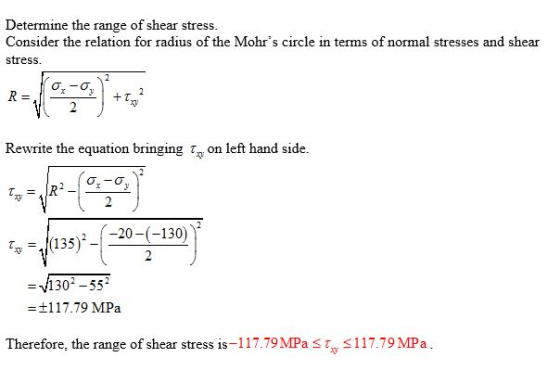

For P = 130 MPa, determine the
range of values of ?xy for which the maximum tensile stress is
equal to or less than 60 MPa. (Round the final answer to one
decimal place.)
Homework Answers
Add Answer to:
For P = 130 MPa, determine the
range of values of ?xy for which the maximum...
For P = 140 MPa, determine the range of values of τxy for which the maximum...
For P = 140 MPa, determine the range of values of τxy for which
the maximum tensile stress is equal to or less than 60 MPa. (Round
the final answer to one decimal place.)
For P= 140 MPa, determine the range of values of Txy for which the maximum tensile stress is equal to or less than 60 MPa. (Round the final answer to one decimal place.) 20 MPa Range: OMPa sıxys OMPa
Required information Solve the following problems using Mohr's circle Given: P 84 MPa P 50 MPa...
Required information Solve the following problems using Mohr's circle Given: P 84 MPa P 50 MPa Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through 25 clockwise. (Round the final answers to two decimal places.) Normal stresses: MPa (+ tensile; - compressive) Ox' Gy[ MPa (+tensile; - compressive) Shearing stress: Txy MPa (+CCW on the positive X-face)
Please use Mohr's circle to solve this problem. For the state of stress shown, determine the...
Please use Mohr's circle to solve this
problem.
For the state of stress shown, determine the value of Txy for which the maximum shearing stress is 79 MPa. (Round the final answer to two decimal places.) 70 MPa ty 120 MPa The value of w is ± MPa
Determine maximum tensile stress of the beam (Unit: MPa) Set M = 815 N.m; b =25 mm.
Determine maximum tensile stress of the beam (Unit:
MPa)
Set M = 815 N.m; b =25 mm.
Determine maximum tensile stress of the beam (Unit: MPa) Set M 815 N.m; b 25 mm. 2b Answer:
Determine maximum tensile stress of the beam (Unit: MPa) Set M 815 N.m; b 25 mm. 2b Answer:
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel...
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel shaft shown. - 30 mm References eBook & Resources Section Break Difficulty: Easy - 2. Required information 10.00 points Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. (Round the final answer to one decimal place.) The maximum shearing stress is MPa.
There is one force element in xy-axes, with Sigma (x) = 30 MPa, Sigma (y) =...
There is one force element in xy-axes, with Sigma (x) = 30 MPa, Sigma (y) = 60 MPa, and Tao (xy) = 40 MPa. (Sigma for normal stress and Tao for shear stress) (1) Draw a force element with all above stresses labeled in xy-axes and translate the information on a Mohr's circle; (2) Rotate the force element 30 degree (counterclockwise). Use Mohr's circle to derive the stresses in this new element; (3) Use Mohr's circle to determine the principal...
A copper strip (Ec 105 GPa) and an aluminum strip (Es 75 GPa) are bonded together...
A copper strip (Ec 105 GPa) and an aluminum strip (Es 75 GPa) are bonded together to form the composite beam shown. Knowing that the beam is bent about a horizontal axis by a couple of moment M 32 N-m determine the maximum stress in the aluminum strip and in the copper strip. (Round the final answer to one decimal place.) Aluminum 9 mm Copper 3 mm 24 mm The maximum compressive stress in the aluminum strip is The maximum...
Determine the largest permissible distributed load w for the beam shown, knowing that the allowable normal...
Determine the largest permissible distributed load w for the beam shown, knowing that the allowable normal stress is +80 MPa in tension and -100 MPa in compression. Round the final answer to one decimal place.) 60 mm t0 20 mm 02 m 0.2 m kN/m The largest permissible distributed load w for the beam shown is
The grain of a wooden member forms an angle 15° with the vertical. For Txy =...
The grain of a wooden member forms an angle 15° with the vertical. For Txy = 254 psi, determine the in- plane shearing stress parallel to the grain and the normal stress perpendicular to the grain. (Round the final answers to one decimal place.) Ty The in-plane shearing stress parallel to the grain is The normal stress perpendicular to the grain is 219.97/ psi (+ CCW on positive x-face). psi (+ tensile; - compressive).
Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maxim...
Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maximum distortional strain energy theory, and safety factor of 2.6 determine the number of cycles to failure ift-5 mm Assume ơy(yield stress)-350 MPa, NY (Number of cycles to yield)-10, ơ (endurance stress)-290 MPa, Ne (number ofcycles associated with endurance stress)-10
Problem 1 A thin-walled pressure vessel...
For P = 140 MPa, determine the range of values of τxy for which
the maximum tensile stress is equal to or less than 60 MPa. (Round
the final answer to one decimal place.)
For P= 140 MPa, determine the range of values of Txy for which the maximum tensile stress is equal to or less than 60 MPa. (Round the final answer to one decimal place.) 20 MPa Range: OMPa sıxys OMPa
Required information Solve the following problems using Mohr's circle Given: P 84 MPa P 50 MPa Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through 25 clockwise. (Round the final answers to two decimal places.) Normal stresses: MPa (+ tensile; - compressive) Ox' Gy[ MPa (+tensile; - compressive) Shearing stress: Txy MPa (+CCW on the positive X-face)
Please use Mohr's circle to solve this
problem.
For the state of stress shown, determine the value of Txy for which the maximum shearing stress is 79 MPa. (Round the final answer to two decimal places.) 70 MPa ty 120 MPa The value of w is ± MPa
Determine maximum tensile stress of the beam (Unit:
MPa)
Set M = 815 N.m; b =25 mm.
Determine maximum tensile stress of the beam (Unit: MPa) Set M 815 N.m; b 25 mm. 2b Answer:
Determine maximum tensile stress of the beam (Unit: MPa) Set M 815 N.m; b 25 mm. 2b Answer:
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel shaft shown. - 30 mm References eBook & Resources Section Break Difficulty: Easy - 2. Required information 10.00 points Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. (Round the final answer to one decimal place.) The maximum shearing stress is MPa.
There is one force element in xy-axes, with Sigma (x) = 30 MPa, Sigma (y) = 60 MPa, and Tao (xy) = 40 MPa. (Sigma for normal stress and Tao for shear stress) (1) Draw a force element with all above stresses labeled in xy-axes and translate the information on a Mohr's circle; (2) Rotate the force element 30 degree (counterclockwise). Use Mohr's circle to derive the stresses in this new element; (3) Use Mohr's circle to determine the principal...
A copper strip (Ec 105 GPa) and an aluminum strip (Es 75 GPa) are bonded together to form the composite beam shown. Knowing that the beam is bent about a horizontal axis by a couple of moment M 32 N-m determine the maximum stress in the aluminum strip and in the copper strip. (Round the final answer to one decimal place.) Aluminum 9 mm Copper 3 mm 24 mm The maximum compressive stress in the aluminum strip is The maximum...
Determine the largest permissible distributed load w for the beam shown, knowing that the allowable normal stress is +80 MPa in tension and -100 MPa in compression. Round the final answer to one decimal place.) 60 mm t0 20 mm 02 m 0.2 m kN/m The largest permissible distributed load w for the beam shown is
The grain of a wooden member forms an angle 15° with the vertical. For Txy = 254 psi, determine the in- plane shearing stress parallel to the grain and the normal stress perpendicular to the grain. (Round the final answers to one decimal place.) Ty The in-plane shearing stress parallel to the grain is The normal stress perpendicular to the grain is 219.97/ psi (+ CCW on positive x-face). psi (+ tensile; - compressive).
Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maximum distortional strain energy theory, and safety factor of 2.6 determine the number of cycles to failure ift-5 mm Assume ơy(yield stress)-350 MPa, NY (Number of cycles to yield)-10, ơ (endurance stress)-290 MPa, Ne (number ofcycles associated with endurance stress)-10
Problem 1 A thin-walled pressure vessel...
