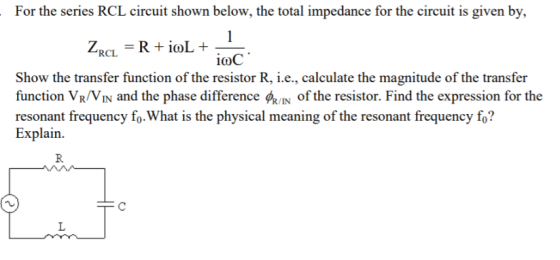

- For the series RCL circuit shown below, the total impedance for the circuit is given...
A RCL circuit has a 1.68 uF capacitor and a 11.14 mH inductor. The total impedance of the circuit is 6 ohms at a frequency of 1.2 kHz. A) What is the resistance fo the resistor? B) What is the phase angle between the current and voltage? C) What is the resonance frequency of this circuit? D) What will the toal impedance be at the resonance frequency?
The RCL series circuit shown below (R=0.04 2, L=5.00uH) is in resonance with a source that has a frequency of 2000 Hz and a 12.0-V ims potential. a.) what is the capacitance of the circuit? for parts (6)-(f), the circuit is now driven with the same potential but with a frequency of 1700th. b.) Determine the phase angle Ø between the potential across the RCL circuit and the current induced by the AC source, which leads the current or potential?...
Use the information given in the figure for the series RCL circuit to determine its total impedance.
The elements in a series RCL circuit are a 106 ohm resistor, a 3.30 uF capacitor, and a 0.0310 H inductor. The frequency is 609 Hz. What are (a) the impedance of the circuit (b) the phase angle between the current and the voltage of the generator (c) the average power consumed of the circuit if it is plugged into a standard household power outlet (120 V)?
Determine resonant frequency, amplitude, impedance,
and phase angle.
(b) Suppose the circuit parameters in a series RLC circuit are: L = 1.0 uH, C = 10.0 nF, R= 10092, and the source voltage is 220 V. Determine the resonant frequency of the circuit and the amplitude of the current at resonance. If the frequency of the input voltage source is 50 Hz, calculate the impedance and the phase angle. f = 1 / 2 x 5c = 1/2 X 511...
When the frequency is twice the resonant frequency, the impedance of a series RLC circuit is three times the value of the impedance at resonance. Obtain the ratios of the inductive and capacitive reactances to the resistance (XL/R and XC/R) when the frequency is twice the resonant frequency.
VI Series connected tuned circuit с и R a) Compute the total impedance Z of tuned parallel circuit shown in Fig. 3 b) Determine the expression for the current I c) Compute g) Compute the transfer function G( jø) V h) Evaluate magnitude responses of G( j@ at o =0,0- and =, i) Classify the filter as a band-pass or notch filter and justify
20 - 10 2020- -capacitive In a series RLC circuit, when the impedance of circuit is equal to the resistance of the resistor? when the frequency of the emf is less than the resonant frequency of the circuit. when the capacitive reactance is equal to the inductive reactance. مانعة & hp
For the circuit below, what is the total impedance as seen by the source at 140 Hz? Give your answer in terms of magnitude (ohms) and phase (degrees or radians), 1. Is the circuit more capacitive or inductive? What is the resonant frequency? what is the total current? Give both magnitude and phase-一一 R3 R1 140 Hz C1 V1 0° し1 100mH
Consider an RLC series circuit with R = 600 Ω, L = 3 H, C = 4μF, generator voltage V = 20 v, frequency= 60 hz. Find a) the inductive impedance XL, b) capacitive impedance Xc , c) Total impedance Z, d) Line current I , e) Voltage drops VR , VL, ,Vc f) combination voltage VRL , and VLc , g) phase angle φ , h) resonant frequency f0 , i) Power dissipated by circuit.
