Find the charge on each of the capacitors in the figure below. 1.0-?F capacitor ?C 5.0-?F...

Question

Question

Find the charge on each of the capacitors in the figure below.

1.0-?F capacitor ?C

5.0-?F capacitor ?C

8.0-?F capacitor ?C

4.0-?F capacitor ?C

science physics

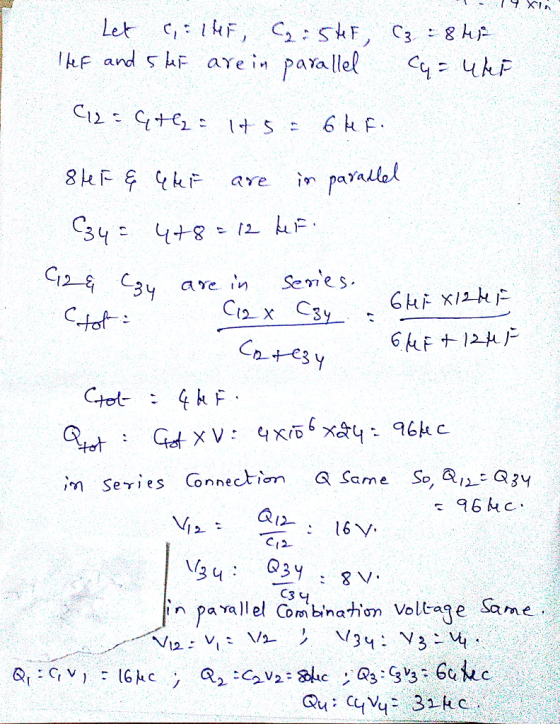

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Find the charge on each of the capacitors in the figure belo. 1.00 μF 24.0 V...

Find the charge on each of the capacitors in the figure belo. 1.00 μF 24.0 V 8.00 μ 4,00 μF 1.0-uF capacitor 5.0-uF capacitor 8.0-uF capacitor 4.0-uF capacitor
Find the charge on each of the capacitors in the figure below. A rectangular circuit contains...

Find the charge on each of the capacitors in the figure below. A rectangular circuit contains a battery and four capacitors. A 24.0 V battery is on its left side, where the positive terminal is above the negative terminal. Its right side splits into two parallel vertical branches below the top right corner of the circuit, where there is a 1.00 µF capacitor on the left branch and a 5.00 µF capacitor on the right branch. The branches recombine, the...
Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu...

Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu F, C_2 = 2.0 mu F, C_3 = 3.0 mu F, C_4 = 4.0 mu F, V= 6.0 V Find the charge on each capacitor: Q_1, Q_2, Q_3, Q_4, ?

1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F capacitor is connected...

1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F capacitor is connected in series to the first two. What is the equivalent capacitance? (a) 5.0 F (b) 15.0 F (c) 3.3 F (d) 6.7 F 2. Two capacitors, each with a capacitance of C, are connected in parallel. Those two are then connected in series to another capacitor with capacitance of C. What is the equivalent capacitance of this arrangement of capacitors? (a) C/3 (b) 2C/3 (c)...
(a) Find the charge (in C) stored on each capacitor in the figure below (C =...

(a) Find the charge (in C) stored on each capacitor in the figure below (C = 10.0 pF, C2 = 1.50 pF) when a 1.52 V battery is connected to the combination. CH C2 0.30 uF 066e-6 C1 C2 0.300 uF capacitor хс X C 374e-6 44e-6 с 다. (b) What energy (in )) is stored in each capacitor? C1 C2 ] 0.300 uF capacitor ] Three point charges 91, 92, and 43 are situated at three corners of a...
Part A Three capacitors, with capacitances C1 = 5.0 ?F, C2 = 2.4 ?F, and C3...

Part A Three capacitors, with capacitances C1 = 5.0 ?F, C2 = 2.4 ?F, and C3 = 6.0 ?F, are connected to a 19 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ? Part AThree capacitors, with capacitances C1 = 5.0 ?F, C2 = 2.4 ?F, and C3 = 6.0 ?F, are connected to a 19 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ?

Find the charge stored on each capacitor in Figure 18.24 (C_1 = 10.0 mu F, C_2...

Find the charge stored on each capacitor in Figure 18.24 (C_1 = 10.0 mu F, C_2 = 6.00 mu F) when a 1.54 V battery is connected to the combination. What energy is stored in each capactitor? What total energy is stored in the capacitors in Figure 18.25 (C_1 = 0.600mu F, C_2 = 22 0 mu F) if 1.80 Times 10^-4 J is stored in the 2.50 mu F capacitor?
(Figure 1)ln the figure are shown three capacitors with What is the charge Qi on capacitor...

(Figure 1)ln the figure are shown three capacitors with What is the charge Qi on capacitor Cr? View Available Hint(s) c, 6.00 ??, C-3.00 ??, C3 5.00 ?F. The network is connected to an applied potential Vab. After the charges on the capacitors have reached their final values, the charge Q2 on the second capacitor is 40.0 uC AC Submit PartB Figure 1 of 1 What is the charge on capacitor C3? Express your answer in microcoulombs to three significant...
Problem 6. In the following capacitor circuit, the capacitors have values C1 = 1.0 uF, C2...

Problem 6. In the following capacitor circuit, the capacitors have values C1 = 1.0 uF, C2 = 2.0 uF, C3 = 3.0 uF and C4 = 4.0 uF. There is also a battery supplying a voltage of 5.0 V across the circuit. = = 26. Find the total charge entering this circuit in units of uC. (A) 1.2 (B) 2.7 (C) 3.0 (D) 4.6 (E) 5.5 27. Find the voltage across the Cz capacitor in units of volts. (A) 1.3...

(a) Find the charge (in C) stored on each capacitor in the figure below (C1 =...

(a) Find the charge (in C) stored on each capacitor in the figure below (C1 = 12.0 µF, C2 = 4.50 µF) when a 1.53 V battery is connected to the combination. (b) What energy (in J) is stored in each capacitor?
