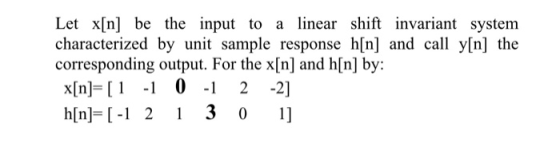

![Let x[n] be the input to a linear shift invariant system characterized by unit sample response h[n] and call y[n] the corresp](http://img.homeworklib.com/questions/76187640-6d73-11eb-9206-a7fcbef518db.png?x-oss-process=image/resize,w_560)
Homework Answers

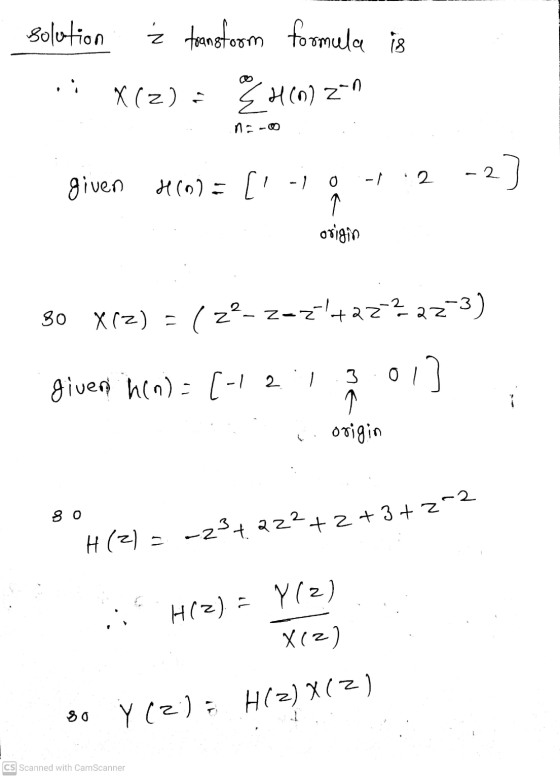

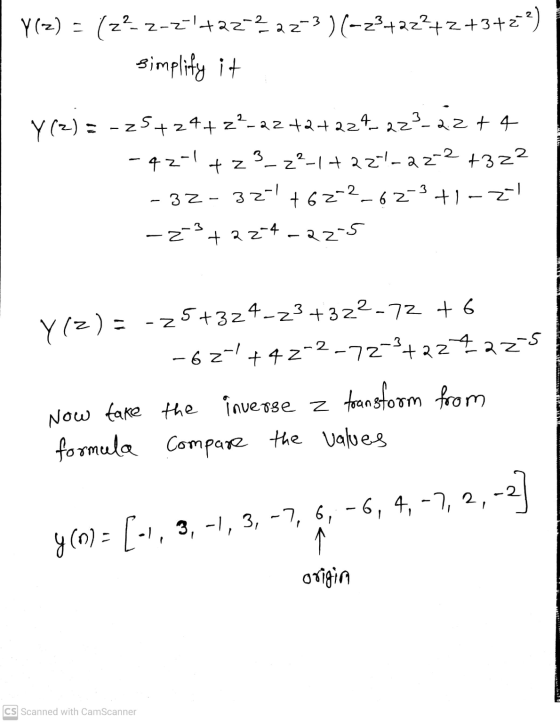

apply the basic formula of Z transform then compare with it for y(n)
here in left side of origin -1,-2 ....exist so put n=-1,-2 for left side values in basic formula
Add Answer to:
dont solve using tabular method
Let x[n] be the input to a linear shift invariant system...
