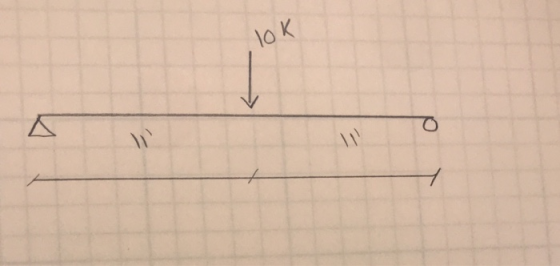

Draw the shea moment dearamo show ALL Clchtions 3- cigfanng- lo K

Question

Question

Draw the shea moment dearamo show ALL Clchtions 3- cigfanng-

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

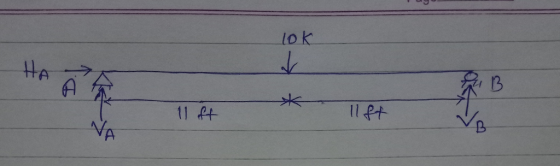

lok 11 A Due to symmetry, V_A = V_B = 10/2

V_A = V_B = 5 k

For iny sum H = 0;

H_A = 0

Shear forces:

Sign Convention

Upward ightarrow Positive

Downward ightarrow Negative

At Support 'A'

V_A = 5 k

At middle of beam (At 'C')

V_C = V_A

V_C = 5 k (Just left)

V_C = 5 - 10

V_C = -5 k (Just right)

V_B = -5+5 = 0

Bending Moments:

Sign Convention;

Clockwise ightarrow Positive

Anticlockwise ightarrow Negative

M_A = M_B = 0

M_C = V_B x 11

M_C = 5 x 11

M_C = 55 k-ft

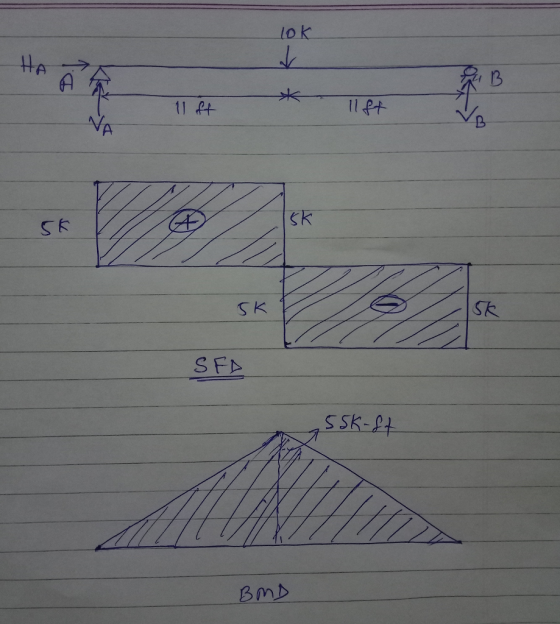

SFD & BMD:

lo k ラ. r B t1 Pt SK V Sk S K Sk SSK-24
