Label the six missing quantities.
Homework Answers

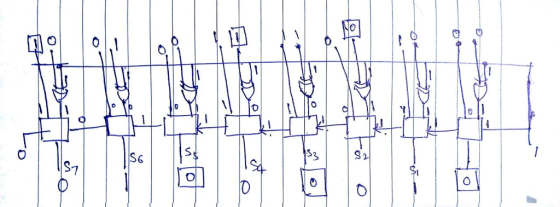

Please find solution in below image with missing values filled
However there seems a problem in question the last Cout should be 1 instead of 0.
Explanation -
input to XOR gate of last (Left most) FA are 0 and 1, so output must be 1 and missing bit has to be 1 in order to S7 be 0, hence Cout should be 1
