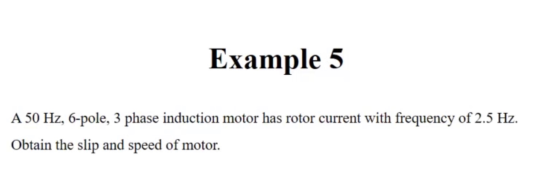

Example 5 A 50 Hz, 6-pole, 3 phase induction motor has rotor current with frequency of 2.5 Hz. Obtain the slip and speed of m

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Given,

Frequency of three phase induction motor, f=50Hz

Number of poles of the motor, P=6

Frequency of rotor current, f2=2.5Hz

Synchronous speed of motor, Ns=120f​​​/P

Ns=120•50/6=1000rpm

Motor slip, s=f2/f

=2.5/50=0.05

s=0.05

Motor slip, s=(Ns-Nr) /Ns

sNs=Ns-Nr

  Nr=Ns(1-s)

=1000(1-0.05) =950rpm

Therefore,

Slip of the three phase induction motor, s=0.05

Speed of the three phase induction motor, Nr=950rpm
