Starting with this equation dP/ dy = ρg (1) and this relationship P/ Po = ρ/...

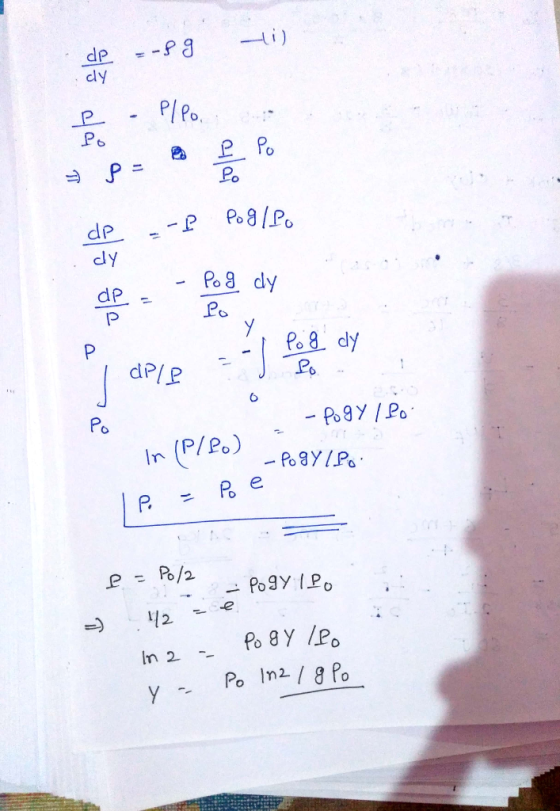

Starting with this equation dP/ dy = ρg (1) and this relationship P/ Po = ρ/ ρo (2) where Po and ρo are pressure and density at sea level. Assume g is constant and y = 0 at sea level. (a) Determine the variation in pressure in the earth’s atmosphere as a function of elevation y above the sea level. (b) At what elevation is the air pressure equal to half the pressure at sea level?
