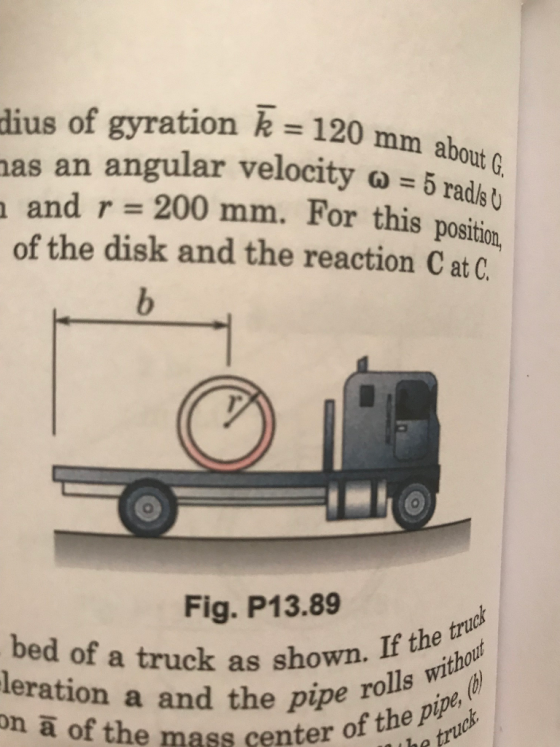

A pipe rest on the horizontal bed of the truck as shown. If the truck moves foward with a constant acceleration a and the pipe rolls without slipping, determine
(a) the accelertation a bar of the mass center of the pipe
(b) the distance xT which the truck will move before the pipe rolls off

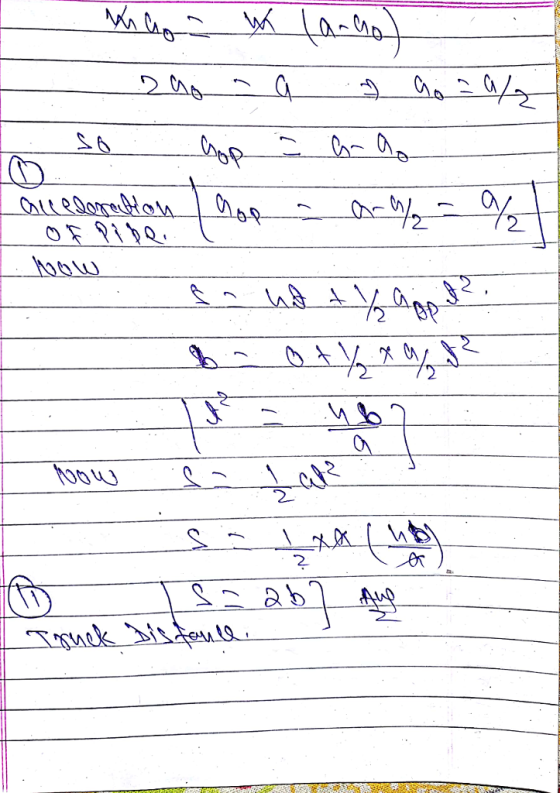

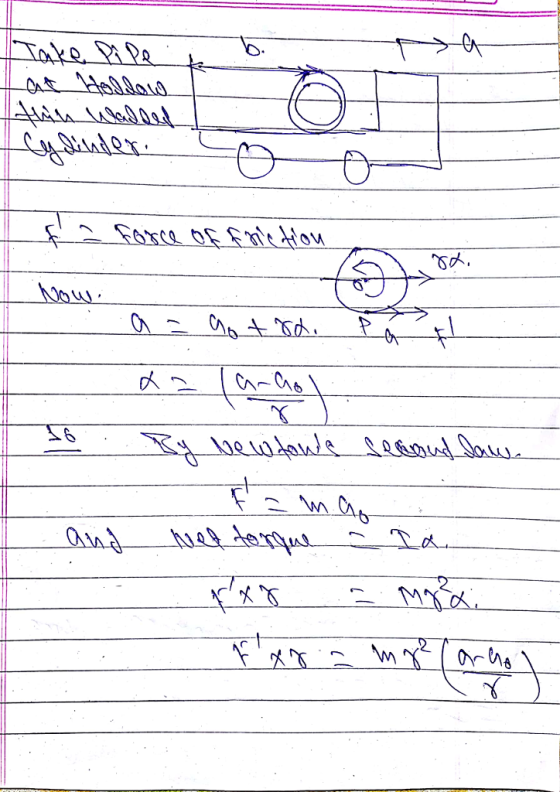

Homework Answers
Add Answer to:
A pipe rest on the horizontal bed of the truck as shown. If the
truck moves...
The truck, initially at rest with a roll of paper in the position shown, moves forward with a constant acceleration a = 5.0 m/s2. Find the distance s which the truck goes before the paper rolls off the edge of its horizontal bed. The distance d = 3.3 m, t
The truck, initially at rest with a roll of paper in the position shown, moves forward with a constant acceleration a = 5.0 m/s2. Find the distance s which the truck goes before the paper rolls off the edge of its horizontal bed. The distance d = 3.3 m, the radius of the roll is r = 920 mm, and the centroidal radius of gyration is k = 620 mm. Friction is sufficient to prevent slipping.
