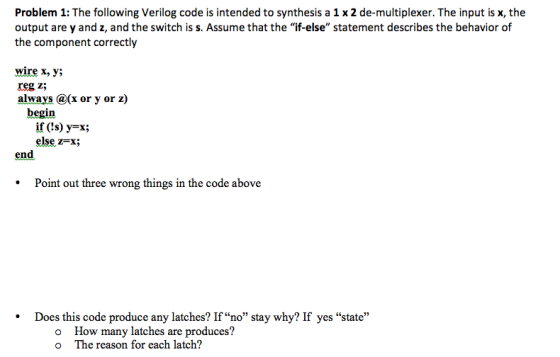

The following verilog code is intended to synthesia a 1 x 2 de-multiplexer the input is...

Question

Question

The following verilog code is intended to synthesi

engineering Computer-Science

Add a comment Improve this question Transcribed image text

Answer 1

Similar Homework Help Questions

Write a Verilog program to describe a sequential circuit that has input X and output Z....

Write a Verilog program to describe a sequential circuit that has input X and output Z. Z goes to 1 whenever the last four X inputs (in four clock cycles) are 1001 or 0110. Use a switch (SW1) on the DE1 board for X and a red LED for Z. Use a push button as the clock input. Use both the Moore and Mealy models to describe the circuit.
List the inputs/outputs and truth-table of Following Verilog codes module switch(A,B,X,Y,S); input[0:0] A,B,S; output[0:0] X,Y; alaways...

List the inputs/outputs and truth-table of Following Verilog codes module switch(A,B,X,Y,S); input[0:0] A,B,S; output[0:0] X,Y; alaways @(A,B,S) begin if S == 0 begin X <= A; Y <= B; end else begin X <= B; Y <= A; end end endmodule
Building and testing basic combinational circuits using Verilog HDL Description: Build and test the following circuits using gate-level modeling in Verilog HDL 1.3-input majority function 2.Condition...

Building and testing basic combinational circuits using Verilog HDL Description: Build and test the following circuits using gate-level modeling in Verilog HDL 1.3-input majority function 2.Conditional inverter (see the table below: x - control input, y -data input). Do NOT use XOR gates for the implementation. Output 3. Two-input multiplexer (see the table below: x.y -data inputs, z- control input) Output 4. 1-bit half adder. 5. 1-bit full adder by cascading two half adders 6.1-bit full adder directly (as in...

Write a Verilog module and testbench for a 3:1 multiplexer that implements the following function. You...

Write a Verilog module and testbench for a 3:1 multiplexer that implements the following function. You can use “case”, “if” or “assign” statements. Grades will be agnostic of your style of implementation (you can choose any of these three styles) and only on the correct functionality. Y = S0’S1’D0 + S0S1’D1+ S1D2 Here, S0 and S1 are the two select signals and D0, D1 and D2 are the three data signals. What does the following snippet of Verilog code do?...
Multiplexer Example Implement the following Boolean function using a 4x1 Mux;

Multiplexer Example Implement the following Boolean function using a 4x1 Mux; F(x,y,z) = Σ (1,2,6,7) Decoder Example Implement the following functions for a full adder using decoder; S(x,y,z) = Σ (1,2,4,7) C(x,y,z) = Σ (3,5,6,7) Implement the following Boolean function; F(x,y,z) = Σ (0,2,3,7): Using; 1. Two 2x4 decoders and logic gates 2. One 4x1 multiplexer Decoder . Draw the truth table for the function to be implemented. . Pick the terms for output. . Derive appropriate logic to combine terms. . Use two 2x4 decoders to make one3x8 decoder. . Pay attention to fact...
3. From the slides and the reference materials, we see that there are two methods for...

3. From the slides and the reference materials, we see that there are two methods for implementing logic in Verilog HDL. The circuit can be described using "Structural Verilog or "Behavioral Verilog." In Structural Verilog the structure of the circuit is defined using Boolean algebra statements. In Behavioral Verilog the circuit is defined by its behavior. Below are examples of a 2x1 multiplexer implemented using structural and behavioral Verilog. STRUCTRAL 2x1 MULTIPLEXER CODE: // Example 5a: 2-to-1 MUX using logic...

Q4) De-Multiplexer A demultiplexer is a device that forwards one single input signal to one of...

Q4) De-Multiplexer A demultiplexer is a device that forwards one single input signal to one of several analog or digital output lines. A multiplexer of 2n outputs has n select lines, which are used to select which output line are used to relay to the input signal. Please design the entity as well as the test bench for a 1-to-4 multiplexer. For this multiplexer, please use the following to refer to the inputs/outputs of the circuit: I0 as data input;...
Building and testing basic combinational circuits using Verilog HDL Description: Build and test t...

Building and testing basic combinational circuits using Verilog HDL Description: Build and test the following circuits using gate-level modeling in Verilog HDL. 1. 3-input majority function. 2. Conditional inverter (see the table below: x - control input, y - data input). Do NOT use XOR gates for the implementation. x y Output 0 y 1 y' 3. Two-input multiplexer (see the table below: x,y - data inputs, z - control input). z Output 0 x 1 y 4. 1-bit half...
Q3. Draw the circuit represented by this Verilog code Module system(A,B.C.Y) Input A,B.C: Output Y Assign...

Q3. Draw the circuit represented by this Verilog code Module system(A,B.C.Y) Input A,B.C: Output Y Assign Y (C1)?A: B Endmodule

a. Write a Verilog code that represents the following circuit in Figure Q4 in ANY coding...

a. Write a Verilog code that represents the following circuit in Figure Q4 in ANY coding style. Create a project on Quartus II and name it Q4_a and make sure the code compile successfully. (5 points) 0 s 2x1 MUX w х 0 5 So 0 0 1 4X1 MUX F 1 2 Z 3 Y Figure 04 b. Create a waveform file for the project. Run “Functional Simulation" given the following inputs and show the waveform for the output....

The following verilog code is intended to synthesia a 1 x 2 de-multiplexer the input is...
