Couples Engineering Question

Question

Question

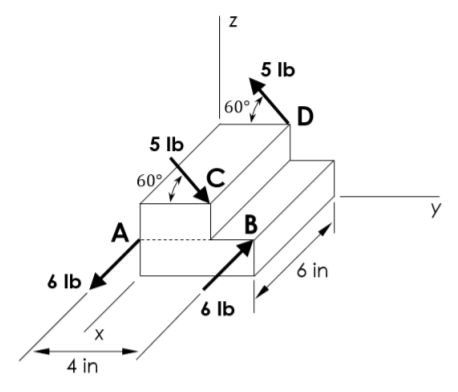

Two couples act on a block as shown. Replace these two couples by a resultant couple moment

Engineering-Statics

Answer 1

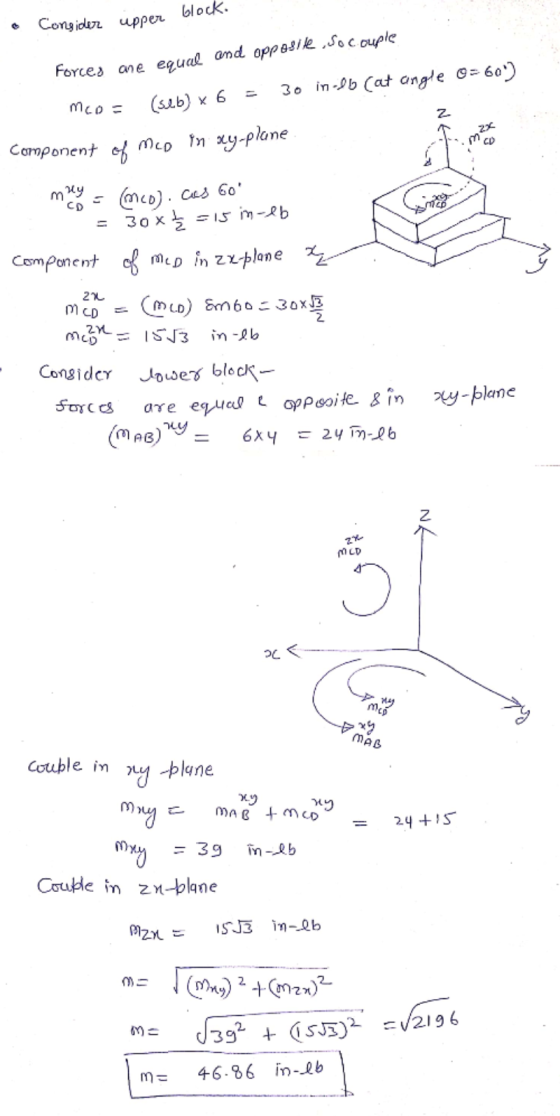

Answer #1

answered by: Wardon

Answer 2

Similar Homework Help Questions

Two couples act on the cantilevered beam as shown. Find the magnitude of F so that the resultant couple moment is 500 lb-ft.

Two couples act on the cantilevered beam as shown. Find the magnitude of F so that the resultant couple moment is 500 lb-ft.
How many couples are acting on the frame? Find each couple moment.

How many couples are acting on the frame? Find each couple moment. Determine the magnitude and direction of the resultant moment by adding couple moments found. Where does the resultant couple moment act on the frame? F is 200 lb. (Do not use vectors)
Find the resultant couple GROUP PROBLEM SOLVING I 2-3ft Given: Two couples act on the beam...

Find the resultant couple GROUP PROBLEM SOLVING I 2-3ft Given: Two couples act on the beam with the geometry shown and d 4 ft. Find: The resultant couple Sa lb 80 1b Plan: 3 1 80 tb 1) Resolve the forces in x and y-directions so they can be treated as couples. 2) Add these two couples to find the resultant couple

Force Couples and Moments

Two parallel 60Nforces are applied to a lever as shown. Determine the moment of the couple formed by the two forces:a) by resolving each force into horizontal and vertical components and adding the moments of the two resulting couples,b) by using the perpendicular distance between the two forces &c) by summing the moments of the two forces about point A.The answer for a, b and c is 12.39 Nm.
Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis. T...

Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis. The photo is at this link. imageshack.us/a/img22/5797/randomwz.jpg thanks!
The forces F1={−6i+4j−2k}kN and F2={5i−5j−2k}kN act on the endof the beam. Replace these forces by...

The forces F1={−6i+4j−2k}kN and F2={5i−5j−2k}kN act on the end of the beam. Replace these forces by an equivalent force and couple moment acting at point O.Determine the equivalent resultant couple moment about point O.

Replace the loading system shown by an equivalent resultant force and couple moment acting at point A.

Replace the loading system shown by an equivalent resultant force and couple moment acting at point A.
The forces F_1 = {-6i + 2j - 4k} kN and F_2 = {3i - 3j...

The forces F_1 = {-6i + 2j - 4k} kN and F_2 = {3i - 3j - 2k} kN act on the end of the beam. Replace these forces by an equivalent force and couple moment acting at point O (Figure 1) Determine the resultant force Enter the x, y, and z components of the force separated by commas using three significant figures. Determine the equivalent resultant couple moment about point O. Enter the x, y, and z components of...
Replace the loading system by an equivalent resultant force and couple moment at 0. X 2016...

Replace the loading system by an equivalent resultant force and couple moment at 0. X 2016 aft В F = (21-4j +56)1b -24 || 1-244t-aft Mo 10 16.67 Us So16 Replace the loading system by on equivalent resultant force and couple moment at o.
