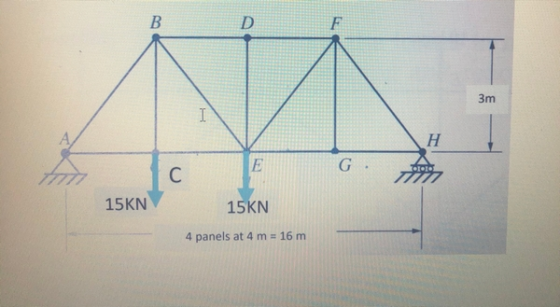

Determine the statical determinacy of the truss below and find the forces in all members of the truss due to the loading shown below. State if the member is in tension or compression.
Homework Answers

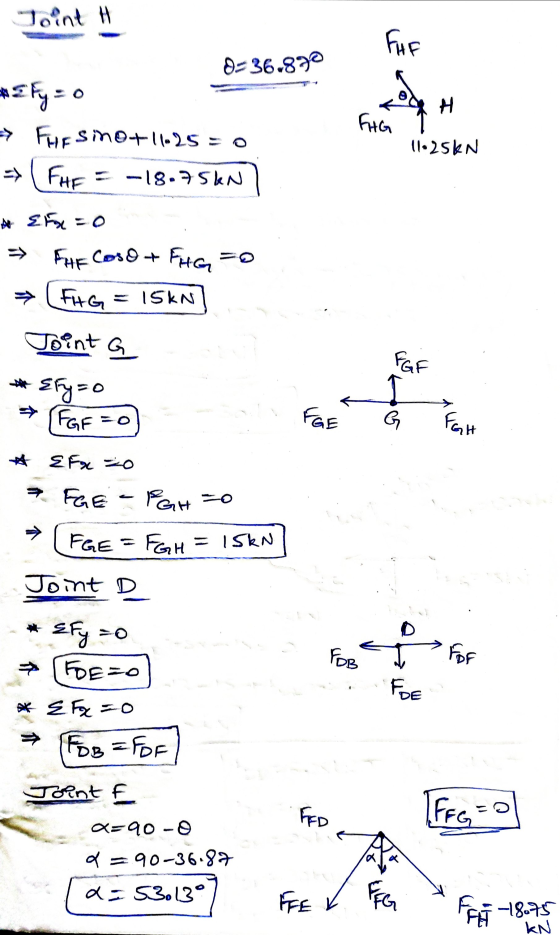

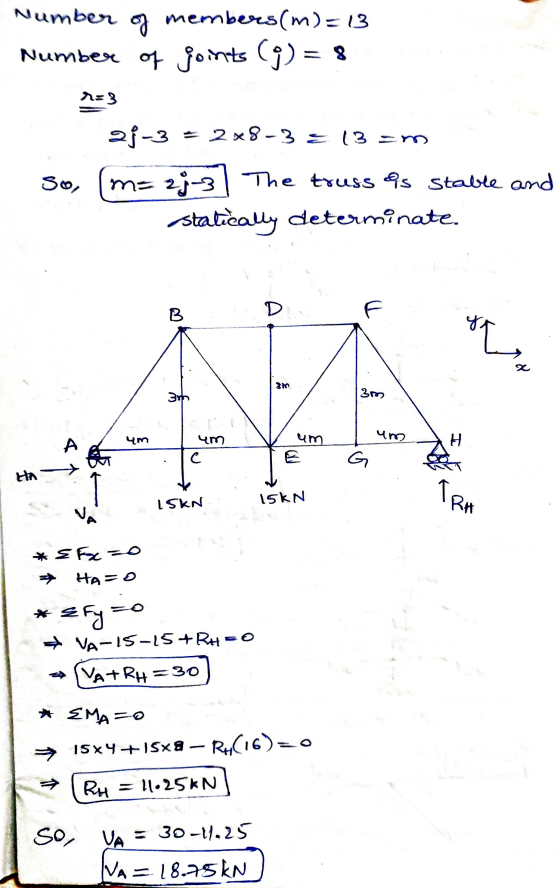

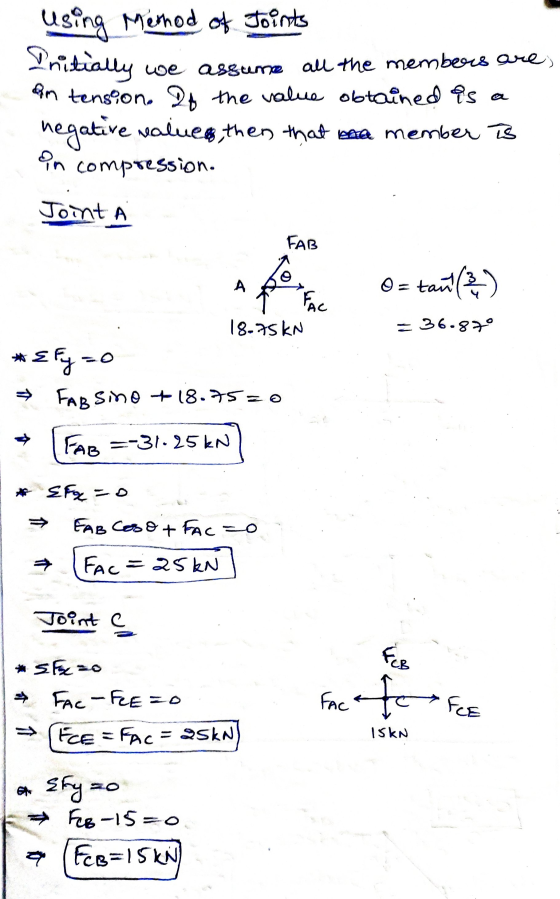

The detailed solution is given below.

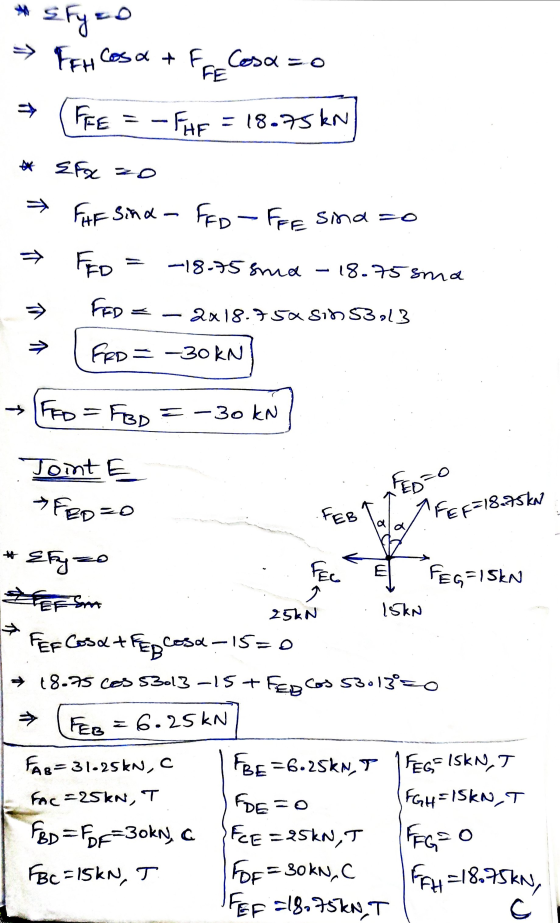

![Efyzo FFHCosa + FFE Cosa so * (FFE = - FHF = 18.75 kN] * EFxzo > FAF Sind- FFDFFE Sind=0 > FED = -18.75 sud - 18.75sma → FED](http://img.homeworklib.com/questions/3f3ea2b0-8548-11eb-8972-4f5a168d3a51.png?x-oss-process=image/resize,w_560)
Please give THUMBS UP if you have liked it.
