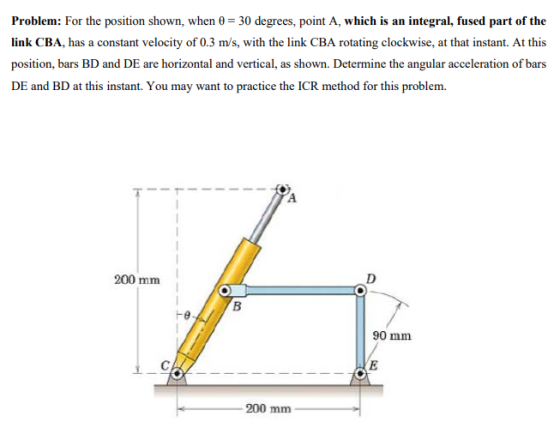

Problem: For the position shown, when 0- 30 degrees, point A, which is an integral, fused part of the link CBA, has a constant velocity of 0.3 m/s, with the link CBA rotating clockwise, at that instant. At this position, bars BD and DE are horizontal and vertical, as shown. Determine the angular acceleration of bars DE and BD at this instant. You may want to practice the ICR method for this problem. 200 mm 90 mm 200 mm

0 0
Add a comment Improve this question Transcribed image text
Answer #1

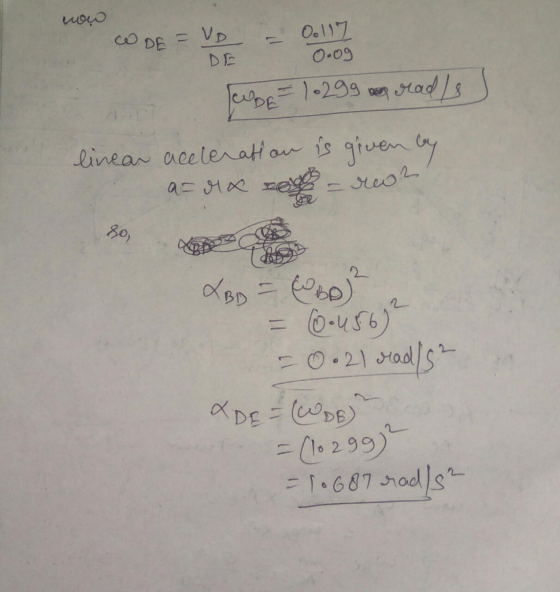

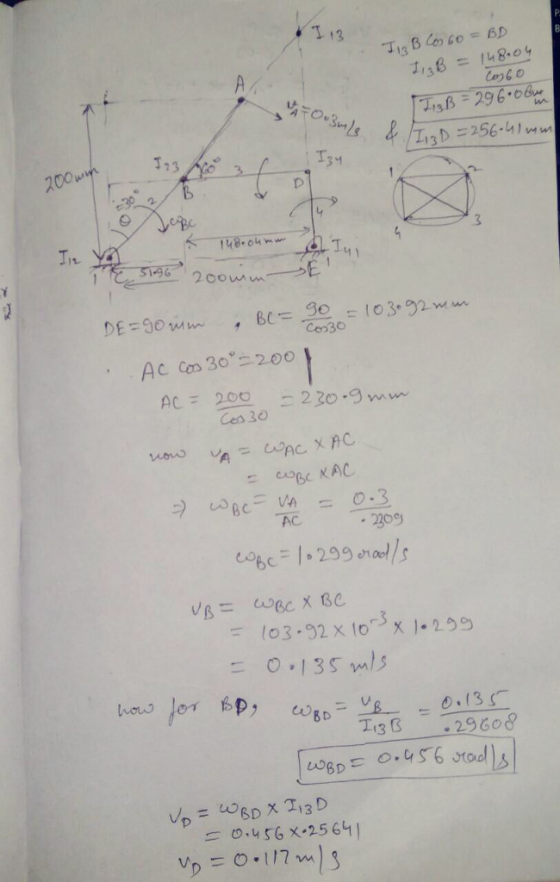

Y13 1,38 = 148,04 200w ル .ry.一51.96.. 20Own vn Cen30 Ac Cos 30 200 Ces 30 瓦 -2309 드 0.135m, 8 D 13 B 、29608O-09 80, 2 (10 292)
