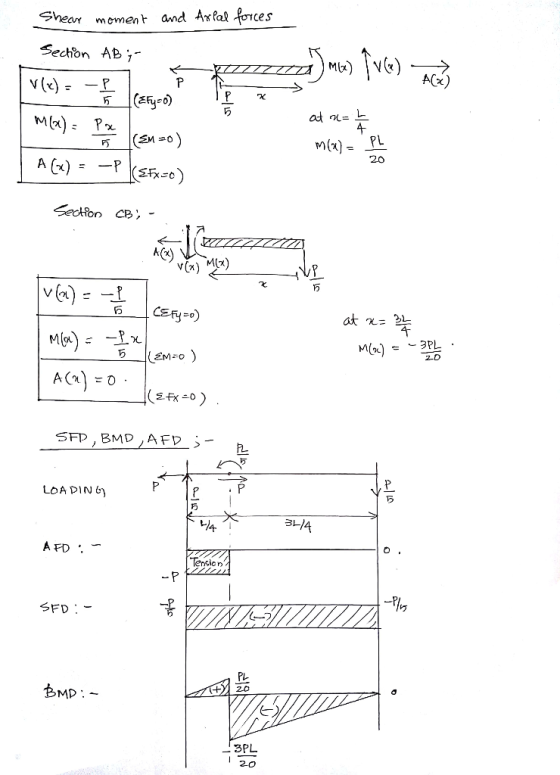

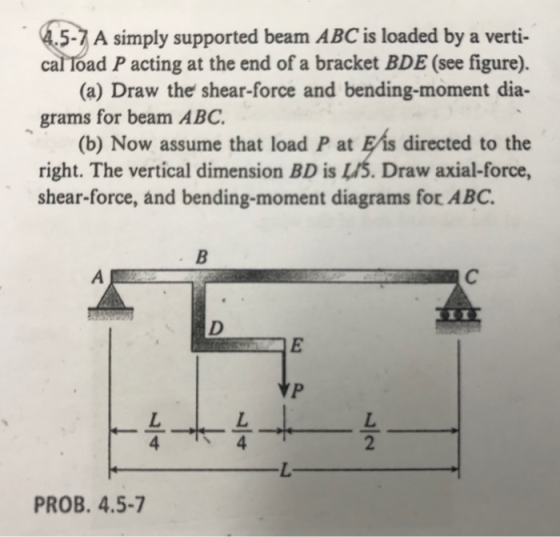

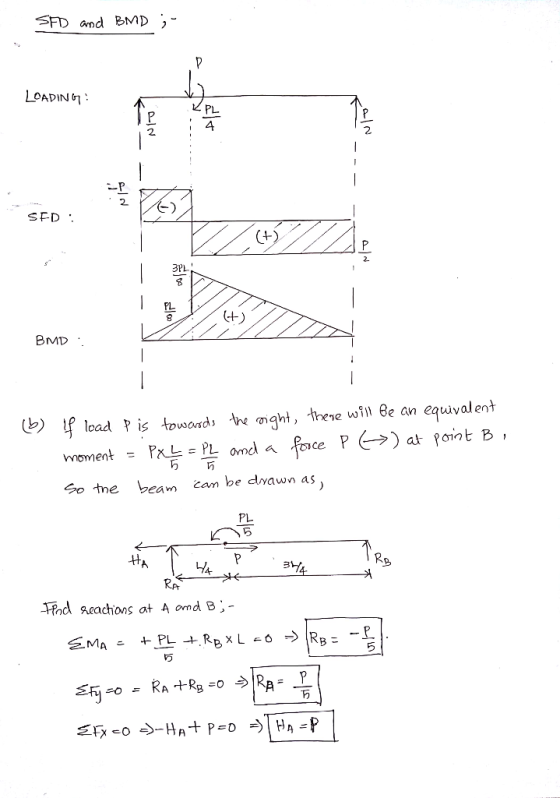

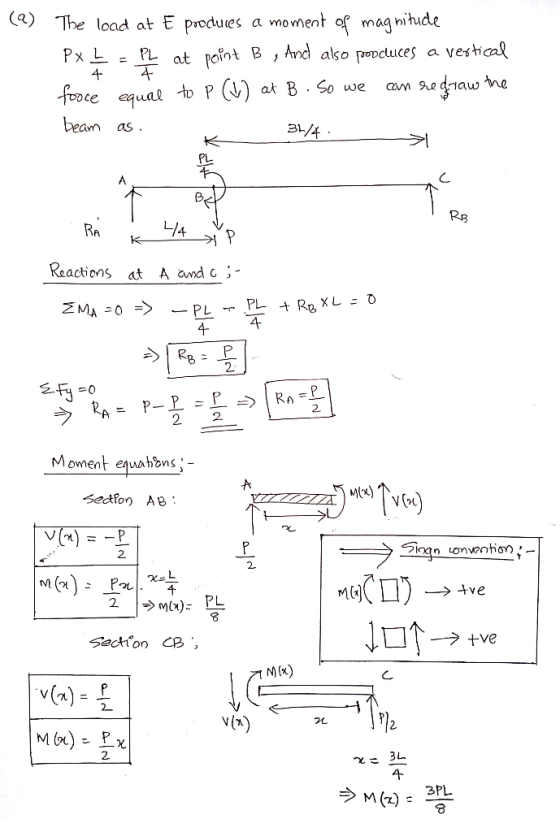

In (b), how to obtain bending moment at x = L/4. Plz explain specifically. 4.5-7 A...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
ME 350-001 STATIC MACHINE COMPONENTS Spring 2019 Dr. Todd January 18, 2019 Shear and Bending Moment Diagrams The figure shows a 1-in. solid round shaft supported by self-aligning bearings at A and B. Attached to the shaft are two chair sprockets that are loaded as show. Treat this as a static loading problem, ignoring fatigue and stress concentrations. Also, ignore the shear load and stress. Draw shear force and bending moment diagrams and determine the magnitude and location of the...
How to find the s.f and bending moment at the MIDPOINT ? Do we
need to draw the diagram too?
This is my answer for b ii ,, Is there any problem?
MEB1043 A cantilever beam is subjected to a vertical load of 12 kN at point B as shown in FIGURE Q3b. 12 kN FIGURE Q3b Determine the shear force and bending moment at the mid-point of the beam [8 marks] Draw the shear-force and bending-moment diagrams for the...
[4.5-31] Draw the shear-force and bending-moment diagrams for beam AB, with a sliding support at A and an elastic support with spring constant k at B acted uporn by a distributed load with linear variation and maximum intensity qo. 3. 10 Figure 3
A simply supported prismatic beam is loaded with a load applied at an angle at point F as shown below The beams connecting points CE and EF can be considered rigid (l-very large). The magnitude of the applied load P is 75kN. NOTE: You must use your student number to calculate the magnitude of the angle, α, and the length EF using the expressions below. The angle, α, is given in degrees and the unit for length EF is m...
Problem l The beam shown below is laterally braced at D,F and F. The uniform load shown does not include the weight of the beam. Determine whether a W24x 104 ASTM A992 is adequate for bending and shear. P,-12k PL -36k 3k/ft 10 20 30 FIGURE P5.5-15 a) Determine the controlling load combination and calculate Pu (for the concentrated force) and wu (for wo plus beam's selfweight, which is a uniformly distributed load) b) Analyze the beam loaded with the...
