Find a regular grammar for each of the following : a. 1 + 01 b. 1*01*...
Find a regular grammar for each of the following :

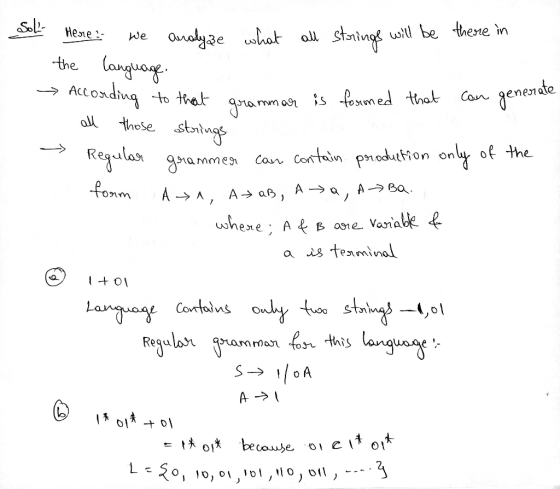

a. 1 + 01
b. 1*01* + 01

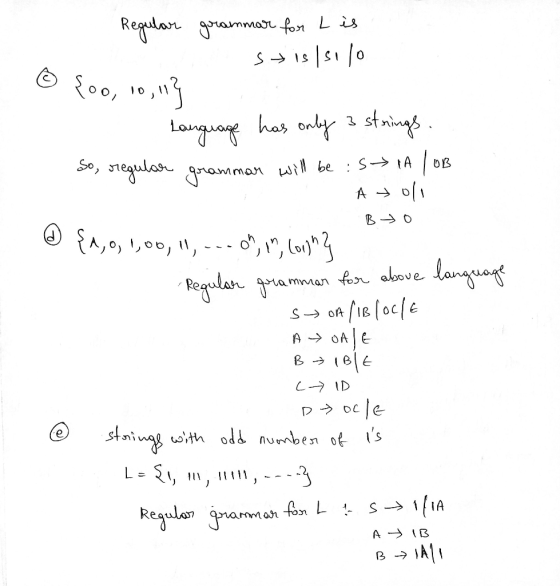

c. {00, 10, 01}
d. {Λ, 0, 1, 00, 11, … 0n, 1n, (01)n, …}
e. All strings which have an odd number of 1’s
Homework Answers
If this answer helpful to you. Please Hit thumps up.
