Identify the type of Grashof linkage (class 1 or class 2) for the following figure:
Note: theta=60 degrees

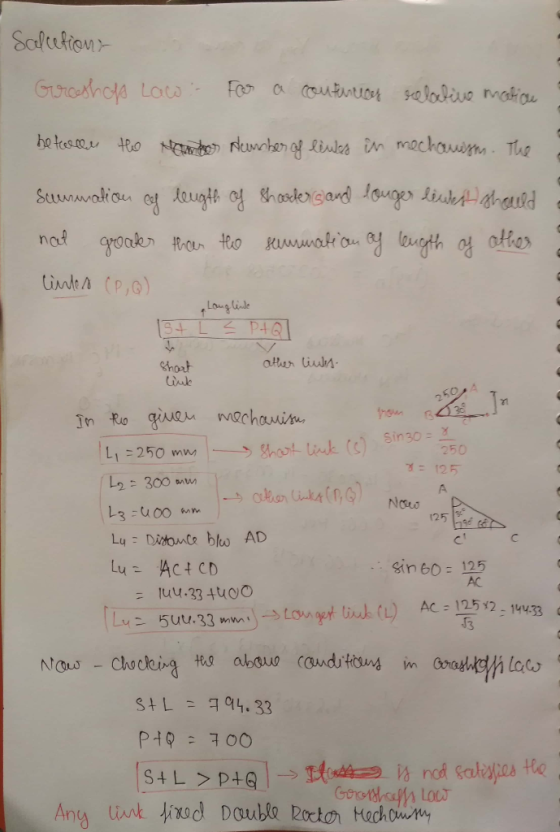

Homework Answers
Add Answer to:
Identify the type of Grashof linkage (class 1 or class 2) for
the following figure:
Note:...
For the linkage demonstrated in class (illustrated in the following figure, not to scale), NO APS...
For the linkage demonstrated in class (illustrated in the following figure, not to scale), NO APS HO ---- 02 1) Measure length of the four links. 2) Using Grashof condition to classify this linkage and predict its motion. 3) Measure the length of AP and the angle between PA and BA. 4) calculate and plot the angular displacement of links 3 and 4 and the path coordinates of point P with respect to the angle of the input crank 0,4...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and the angular acceleration of the crank are 10 rad/s and 40 rad/s2 respectively. Link AB is 50 mm and link BC is 95 mm. A point D on link BC is 0.2 times BC from point B Determine the following; 1.1 velocity of the piston, 1.2 angular velocity of links BC 1.3 acceleration of the piston 1.4 angular acceleration of link BC 1.5 acceleration...
Problem 2 A variation of the Scotch-yoke linkage in the posture shown is driven by crank...
Problem 2 A variation of the Scotch-yoke linkage in the posture shown is driven by crank 2 at w- 36 rad/s CCW. Use the relative-velocity approach to determine the velocity of the crosshead of link 4. Locate all instant centers using the circle-diagram method. 02 105 45 lo2 Figure P3.26 RAo2 250 mm.
I need a solution for P 7-17 The linkage in Figure P7-6a has O2A = 5.6,...
I need a solution for P 7-17
The linkage in Figure P7-6a has O2A = 5.6, AB = 95. 04C= 95, Li = 38.8 mm θ2 is 135° in the xy coordinate system. Write the vector loop equations; differentiate them, and do a complete position, velocity, and acceleration analysis of the linkage. Assume W2 = 10 rad/s and α-= 20 rad/s2 17.16 Repeat Problem 7-16 for the linkage shown in Figure P7-6b which has the dimensions: し! = 6 l...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a washing system on a vegetable harvesting line. The mechanism consists of a crank OA which moves in a limited arc and an L-shaped connecting rod AB which tilts a large bucket of water DB onto the vegetables. The crank rotates with a constant angular velocity wOA = 4x rad/s. For the instant shown with the crank vertical and the angle 8 = 30° determine...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values) we draw and fix) 3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism Please indicate the type together. Ao 3 Veriler: A A-20 mm AC = 65 mm A.B. = 80 mm BB-70 mm BC-40 mm CD-60 mm 9-50 S4=35 Ss=65 istis Во 3
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below; 1) Find the Degree of
Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale
and according to the given values) we draw and fix) 3) Is the
Mechanism Grashof Mechanism? If it's the Grashof mechanism Please
indicate the type together.
Aşağıda verilen mekanizmanın ; 1) Serbestlik Derecesini bulunuz (10P) 2) Ani Dönme Merkezlerini Belirtiniz (Şekil ölçeksiz olup verilen değerlere göre çizip tespit edilecektir) (80P) 3) Mekanizma Grashof Mekanizması mıdır? Eğer Grashof mekanizması ise nedeniyle...
(30%) The Figure shows a sixbar linkage with 02B-|, BD 1.3 in. Find the o3, a3, Ab, a6 if o2 is a...
(30%) The Figure shows a sixbar linkage with 02B-|, BD 1.3 in. Find the o3, a3, Ab, a6 if o2 is a constant 1 rad/sec CCW. Use graphical method. o-0.6 in/sec, Vslip-0.75 in/sec 3. 2, DC-4, D06-3, and h- 6 06 02 450 5 02
(30%) The Figure shows a sixbar linkage with 02B-|, BD 1.3 in. Find the o3, a3, Ab, a6 if o2 is a constant 1 rad/sec CCW. Use graphical method. o-0.6 in/sec, Vslip-0.75 in/sec 3. 2,...
For the linkage demonstrated in class (illustrated in the following figure, not to scale), NO APS HO ---- 02 1) Measure length of the four links. 2) Using Grashof condition to classify this linkage and predict its motion. 3) Measure the length of AP and the angle between PA and BA. 4) calculate and plot the angular displacement of links 3 and 4 and the path coordinates of point P with respect to the angle of the input crank 0,4...
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and the angular acceleration of the crank are 10 rad/s and 40 rad/s2 respectively. Link AB is 50 mm and link BC is 95 mm. A point D on link BC is 0.2 times BC from point B Determine the following; 1.1 velocity of the piston, 1.2 angular velocity of links BC 1.3 acceleration of the piston 1.4 angular acceleration of link BC 1.5 acceleration...
Problem 2 A variation of the Scotch-yoke linkage in the posture shown is driven by crank 2 at w- 36 rad/s CCW. Use the relative-velocity approach to determine the velocity of the crosshead of link 4. Locate all instant centers using the circle-diagram method. 02 105 45 lo2 Figure P3.26 RAo2 250 mm.
I need a solution for P 7-17
The linkage in Figure P7-6a has O2A = 5.6, AB = 95. 04C= 95, Li = 38.8 mm θ2 is 135° in the xy coordinate system. Write the vector loop equations; differentiate them, and do a complete position, velocity, and acceleration analysis of the linkage. Assume W2 = 10 rad/s and α-= 20 rad/s2 17.16 Repeat Problem 7-16 for the linkage shown in Figure P7-6b which has the dimensions: し! = 6 l...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a washing system on a vegetable harvesting line. The mechanism consists of a crank OA which moves in a limited arc and an L-shaped connecting rod AB which tilts a large bucket of water DB onto the vegetables. The crank rotates with a constant angular velocity wOA = 4x rad/s. For the instant shown with the crank vertical and the angle 8 = 30° determine...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values) we draw and fix) 3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism Please indicate the type together. Ao 3 Veriler: A A-20 mm AC = 65 mm A.B. = 80 mm BB-70 mm BC-40 mm CD-60 mm 9-50 S4=35 Ss=65 istis Во 3
The mechanism given below; 1) Find the Degree of
Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale
and according to the given values) we draw and fix) 3) Is the
Mechanism Grashof Mechanism? If it's the Grashof mechanism Please
indicate the type together.
Aşağıda verilen mekanizmanın ; 1) Serbestlik Derecesini bulunuz (10P) 2) Ani Dönme Merkezlerini Belirtiniz (Şekil ölçeksiz olup verilen değerlere göre çizip tespit edilecektir) (80P) 3) Mekanizma Grashof Mekanizması mıdır? Eğer Grashof mekanizması ise nedeniyle...
(30%) The Figure shows a sixbar linkage with 02B-|, BD 1.3 in. Find the o3, a3, Ab, a6 if o2 is a constant 1 rad/sec CCW. Use graphical method. o-0.6 in/sec, Vslip-0.75 in/sec 3. 2, DC-4, D06-3, and h- 6 06 02 450 5 02
(30%) The Figure shows a sixbar linkage with 02B-|, BD 1.3 in. Find the o3, a3, Ab, a6 if o2 is a constant 1 rad/sec CCW. Use graphical method. o-0.6 in/sec, Vslip-0.75 in/sec 3. 2,...
