Homework Answers
ii pl
Add Answer to:

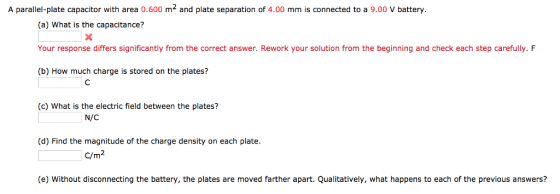

A parallel-plate capacitor with area 0.600 m2 and plate separation of 4.00 mm is connected to...
A parallel-plate capacitor with area 0.100 m2 and plate separation of 2.00 mm is connected to...
A parallel-plate capacitor with area 0.100 m2 and plate separation of 2.00 mm is connected to a 9.00-V battery. (a) What is the capacitance? (b) How much charge is stored on the plates? (c) What is the electric field between the plates? (d) Find the magnitude of the charge density on each plate. (e) Without disconnecting the battery, the plates are moved farther apart. Qualitatively, what happens to each of the previous answers?
A parallel-plate capacitor with area 0.320 m2 and plate separation of 2.00 mm is connected to...
A parallel-plate capacitor with area 0.320 m2 and plate separation of 2.00 mm is connected to a 5.80-V battery. a.) What is the capacitance? b.) How much charge is stored on the plates? c.) What is the electric field between the plates? d.) Find the magnitude of the charge density on each plate. e.) Without disconnecting the battery, the plates are moved farther apart. Qualitatively, what happens to each of the previous answers?
A parallel-plate capacitor with area 0.400 m2 and plate separation of 2.00 mm is connected to...
A parallel-plate capacitor with area 0.400 m2 and plate separation of 2.00 mm is connected to a 3.00-V battery. (a) What is the capacitance? _____ F (b) How much charge is stored on the plates? _____C (c) What is the electric field between the plates? _____N/C (d) Find the magnitude of the charge density on each plate. _____C/m2 (e) Without disconnecting the battery, the plates are moved farther apart. Qualitatively, what happens to each of the previous answers? This answer...
A parallel-plate capacitor with area 0.300 m2 and plate separation of 5.00 mm is to a...
A parallel-plate capacitor with area 0.300 m2 and plate separation of 5.00 mm is to a 18.00 V battery (a) What is the capacitance? 5.31E-10 (b) How much charge is stored on the plates? Your response is off by a multiple of ten. C (c) What is the electric field between the plates? 36 Your response is off by a multiple of ten. N/C (d) Find the magnitude of the charge density on each plate. Your response differ! from the...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is = micro C. A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is= micro C. A parallel-plate capacitor...
A parallel-plate capacitor in air has a plate separation of 1.43 cm and a plate area...
A parallel-plate capacitor in air has a plate separation of 1.43 cm and a plate area of 25.0 cm2. The plates are charged to a potential difference of 235 V and disconnected from the source. The capacitor is then immersed in distilled water. Assume the liquid is an insulator. (a) Determine the charge on the plates before and after immersion before 363 545PC after 28.5666 Your response differs significantly from the correct answer. Rework your solution from the beginning and...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. How much charge is stored on it when it is charged to a potential difference of 12 V? A parallel-plate capacitor is filled with air, and the plates are separated by 0.050 mm. If the capacitance is 17.3 pF, what is the plate area? A parallel plate capacitor is constructed with plate area of 0.0010 m2 and a plate separation of...
A parallel-plate capacitor has plates of area 400 cm2 and is connected across the terminals of...
A parallel-plate capacitor has plates of area 400 cm2 and is connected across the terminals of a battery. After some time has passed, the capacitor is disconnected from the battery. When the plates are then moved 0.40 cm farther apart, the charge on each plate remains constant but the potential difference between the plates increases by 100 V. (a) What is the magnitude of the charge on each plate? (5) Determine the change in stored energy in the capacitor due...
6. A parallel-plate capacitor has plates of area 500 cm2 and is connected across the terminals...
6. A parallel-plate capacitor has plates of area 500 cm2 and is connected across the terminals of a battery. After some time has passed, the capacitor is disconnected from the battery. When the plates are then moved 0.50 cm farther apart, the charge on each plate remains constant but the potential difference between the plates increases by 100 V. (a) What is the magnitude of the charge on each plate? (b) Determine the change in stored energy in the capacitor...
A parallel plate, air filled capacitor, has plates of area 0.81 m2 and a separation of...
A parallel plate, air filled capacitor, has plates of area 0.81 m2 and a separation of 0.050 mm. (a) Find the capacitance in nF (b) If a voltage of 25 volts is applied to the capacitor, what is the magnitude of the charge on each plate in µC? (c) What is the energy stored in the capacitor in µJ? Now the plates are filled with water having a dielectric constant of 78.5. (d) What is the energy stored in the...
A parallel-plate capacitor with area 0.300 m2 and plate separation of 5.00 mm is to a 18.00 V battery (a) What is the capacitance? 5.31E-10 (b) How much charge is stored on the plates? Your response is off by a multiple of ten. C (c) What is the electric field between the plates? 36 Your response is off by a multiple of ten. N/C (d) Find the magnitude of the charge density on each plate. Your response differ! from the...
A parallel-plate capacitor in air has a plate separation of 1.43 cm and a plate area of 25.0 cm2. The plates are charged to a potential difference of 235 V and disconnected from the source. The capacitor is then immersed in distilled water. Assume the liquid is an insulator. (a) Determine the charge on the plates before and after immersion before 363 545PC after 28.5666 Your response differs significantly from the correct answer. Rework your solution from the beginning and...
A parallel-plate capacitor has plates of area 400 cm2 and is connected across the terminals of a battery. After some time has passed, the capacitor is disconnected from the battery. When the plates are then moved 0.40 cm farther apart, the charge on each plate remains constant but the potential difference between the plates increases by 100 V. (a) What is the magnitude of the charge on each plate? (5) Determine the change in stored energy in the capacitor due...
6. A parallel-plate capacitor has plates of area 500 cm2 and is connected across the terminals of a battery. After some time has passed, the capacitor is disconnected from the battery. When the plates are then moved 0.50 cm farther apart, the charge on each plate remains constant but the potential difference between the plates increases by 100 V. (a) What is the magnitude of the charge on each plate? (b) Determine the change in stored energy in the capacitor...
