Question

A parallel-plate capacitor with area 0.400 m2 and plate separation of 2.00 mm is connected to...

A parallel-plate capacitor with area 0.400 m2 and plate separation of 2.00 mm is connected to a 3.00-V battery.

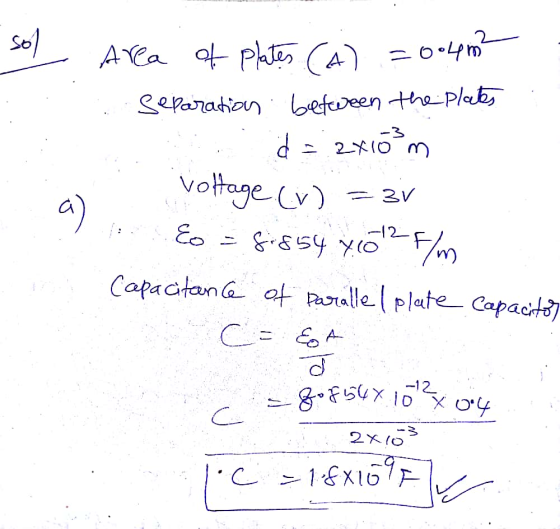

(a) What is the capacitance?
_____ F

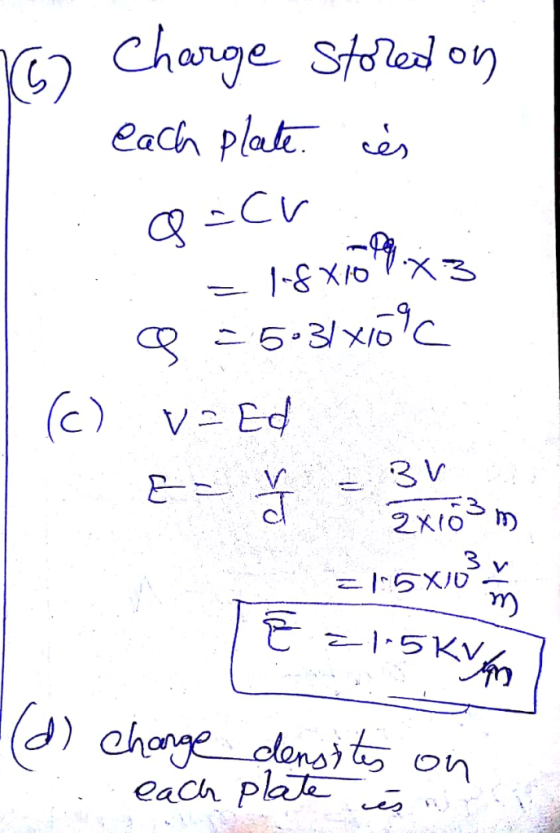

(b) How much charge is stored on the plates?
_____C

(c) What is the electric field between the plates?
_____N/C

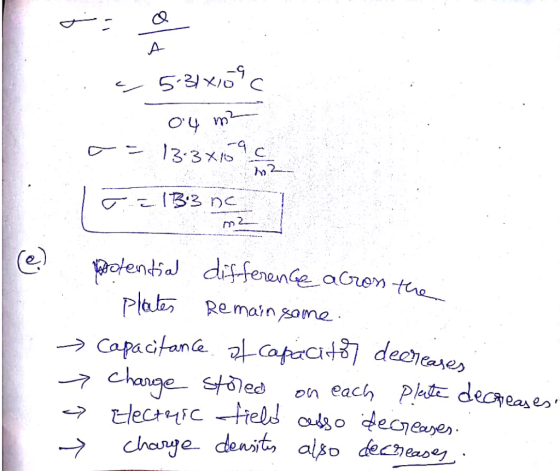

(d) Find the magnitude of the charge density on each plate.
_____C/m2

(e) Without disconnecting the battery, the plates are moved farther apart. Qualitatively, what happens to each of the previous answers?

This answer has not been graded yet.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
