The 1000 # force is replaced by a force F and a moment M without changing...

Question

Question

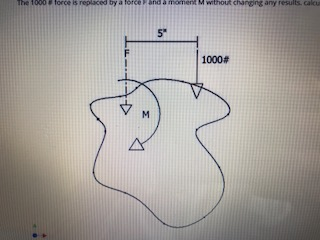

The 1000 # force is replaced by a force F and a moment M without changing any results, calculate F & M

by a force and a without changng any results, calcu 5* 1000#

F=1000# M=1000#

F=2000# M=2000#

F=1000#M=5000#

F=5000#M=1000#

engineering Mechanical-Engineering

Answer 1

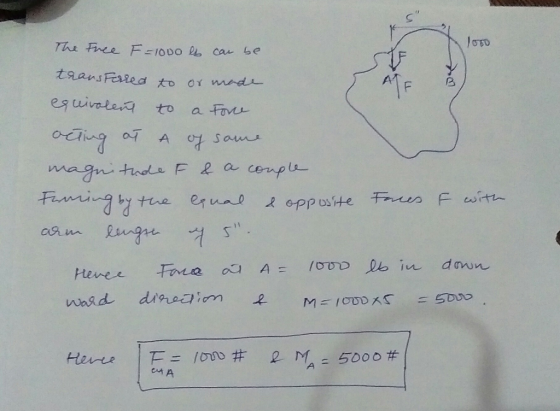

Answer #1

Answer 2

Similar Homework Help Questions

Using the position vector from A to C, calculate the moment about segment A B due to force F.

The general process (not referenced to Figure 1) to calculate the moment of a force about a specified axis is as follows:The magnitude of a moment about a line segment connecting points P and Q due to a force F applied at point R (with R not on the line through P and Q ) can be calculated using the scalar triple product,MPQ=uPQ · r × Fwhere r is a position vector from any point on the line through P...
Pick the correct formula that describes the relationship between force and resultant moment. Here F, M...

Pick the correct formula that describes the relationship between force and resultant moment. Here F, M and r represent the force, moment, and the location where force is applied. A.) ?=?×? B.) ?=?×? C.) ?=?∙? D.) ?=?∙?
Chapter 5, Practice Problem 5/11 xIncorrect Calculate the supporting force RA and moment M acting on...

Chapter 5, Practice Problem 5/11 xIncorrect Calculate the supporting force RA and moment M acting on the loaded cantilever beam at A. The force reaction is positive if upward, negative if downward. The moment reaction is positive if counterclockwise, negative if 270 lb/f 6.8' 6.8 Answers: 135 lb MA- Ib-ft

The moment arm for a muscle force (motive in this case) is 0.025 m, and the...

The moment arm for a muscle force (motive in this case) is 0.025 m, and the moment arm for the resistive force is 0.50 m. Calculate the mechanical advantage.
Question 1 options: Determine the moment of force F about an axis extending between A and...

Question 1 options: Determine the moment of force F about an axis extending between A and C. Express the result as a Cartesian vector. Use F = {5i + 10j - 4k} kN, L1 = 5 m, L2 = 4 m, and L3 = 3 m for your calculations. Your answer: x-component of the resultant moment in kNm (round the result to 1 decimal place): y-component of the resultant moment in kNm (round the result to 1 decimal place): z-component...
Consider a cantilever beam under a concentrated force and moment as shown below. The deflections ofthe...

Consider a cantilever beam under a concentrated force and moment as shown below. The deflections ofthe beam under the force F (y) and moment M (y) are given by: 2. y' Mo L-x) , and y2 Me , where EI is the beam's flexural rigidity. The slope of the beam, 0, is the derivative of the deflection. Write a program that asks the user to input beam's length L, flexural rigidity EI (you may consider this as a single parameter,...

The 2.9-kN force F is applied at point A. (a) Compute the moment of F about...

The 2.9-kN force F is applied at point A. (a) Compute the moment of F about point O, expressing it both as a scalar (positive if CCW, negative if CW) and as a vector quantity. (b) Determine the coordinates of the points on the x- and y-axes about which the moment of F is zero. 1.7 m, a 3,b 7. AssumexA 1.4 m, yA y, m A (x y a F b ----x, m
For the following diagram, draw the shear and bending moment diagrams for the beam without formulating...

For the following diagram, draw the shear and bending moment diagrams for the beam without formulating the shear-force and bending-moment equations. Label all important points on the diagrams. 2000 lb 500 lb/ft B 9 ft 9 ft
A steel rotating shaft is subjected to a nending moment of 150Nm and a force F...

A steel rotating shaft is subjected to a nending moment of 150Nm and a force F (tensile). What is the max force that can be applied without causing fatigue failure using soderbergs equation. Sy = 300 Mpa Sd = 200 Mpa Soderbergs equation: Sa = Sd ( 1 - (Sm/Sy))

Determine the moment of this force about point B using the scalar formulation. (Without using cross...

Determine the moment of this force about point B using the scalar formulation. (Without using cross products) Express the result as a Cartesian vector. 300 min 200 mm 250 mm 401 30° F 80 N
