DO ALL SUB-QUESTIONS PLEASE OR DO NOT ANSWER!
Homework Answers
Add Answer to:

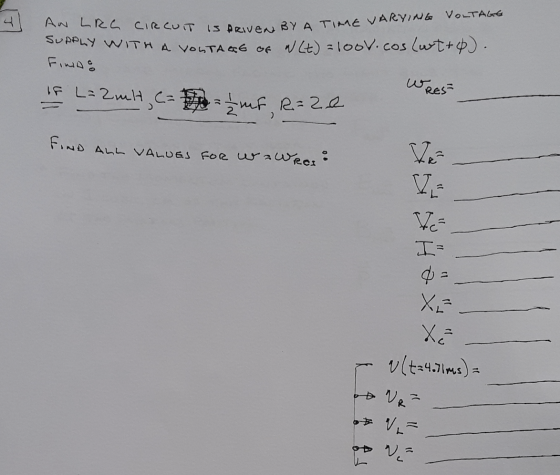

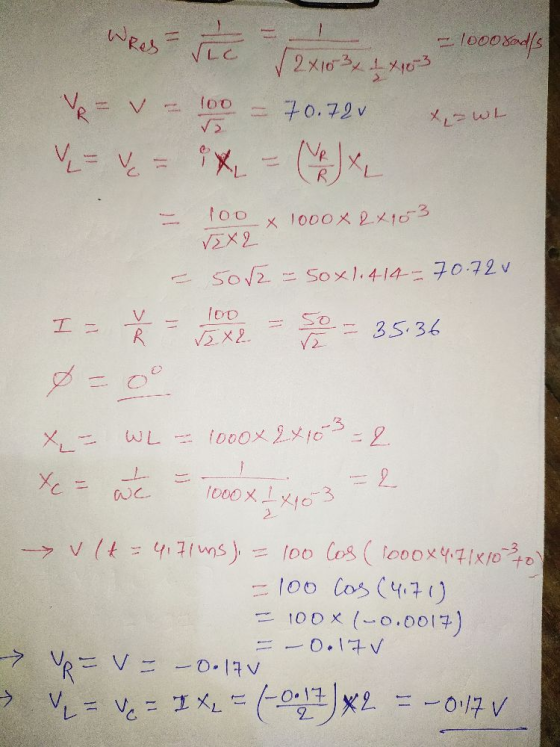

DO ALL SUB-QUESTIONS PLEASE OR DO NOT ANSWER!
IS ARIVEN BY A TIME VARYING VOLTAGE تدعم...
A series RLC circuit is driven by a voltage source which provides a time varying emf...
A series RLC circuit is driven by a voltage source which provides a time varying emf of epsilon space equals space 100 cos left parenthesis 8000 t right parenthesis space straight V and consists of an resistor, capacitor and inductor with values of R space equals space 100 space capital omega L space equals space 1.00 space mH C space equals space 1.00 space μF. When the potential across the resistor is 0 V, what is the potential across the...
Do not mind the Greek Alph signs. Please explian steps and write clearly . Many Thanks!...
Do not mind the Greek Alph signs. Please explian steps and
write clearly . Many Thanks!
1. Design a circuit whose input-output characteristic is as shown in Figure 1. Slopem Slopek Ve Slope=m Figure 1 (0) Draw schematic and show the analysis that proves your design will operate as desired. You can assume that all diodes you use are ideal with a threshold of 0.7V. Take Ve = (5000+a) mV, m = (100+ By 1000 and k = 1. (4...
*****Use R = 8 ohms********** Please answer both questions a and b. R Q 0.1 H...
*****Use R = 8 ohms**********
Please answer both questions a and b.
R Q 0.1 H 100 V 1 mF HE + 30%) Find the value wo .The circuit above shows a RLC series circuit that are connected LC across the voltage source 100 V rms AC. a) By hand solve: For the value of wo find voltages and currents in L,C,R, power and power factor at the source. Scan your work and upload to D2L b) For different values...
would you like please answer all questions in part 3 THEVENIN'S THEOREM AND MAXIMUM POWER TRANSFER...
would you like please answer all questions in part 3
THEVENIN'S THEOREM AND MAXIMUM POWER TRANSFER 131 Part 3 Maximum Power Transfer (Experimental Approach) (a) Construct the network of Fig. 11.8. Insert the measured value of each resistor R EIOV 95.732 218S2 325 2 . 424e R FIG. 11.8 Eths Vabs 6.8v Rths Resissn (b) The Thevenin equivalent circuit will now be determined for the network to the lel of the terminals a-b without disturbing the structure of the network....
please do all part a,b,c,and d In the image: there is a current of 0.5 (A)...
please do all part a,b,c,and
d
In the image: there is a current of 0.5 (A) flowing in the circuit. A) Calculate the voltage of power supply V in the circuit. B) Show the direction of electric current in the circuit and looped wire (show in the image) C) Calculate the magnitude of the magnetic field in the center of the loop which has a radius of 20 (cm). D) Show the direction of the magnetic field in the center...
please use multisim to answer all the parts. EXPERIMENT 3 TESTING SERIES & PARALLEL RESONANCES Objectives:...
please use multisim to answer all the parts.
EXPERIMENT 3 TESTING SERIES & PARALLEL RESONANCES Objectives: To examine the conditions of resonances To observe the resonant circuit properties Equipment & components: A personal computer with Multisim software Preview questions: 1. How does the resonant frequency relate to the inductance and capacitance in a series LC circuit? 2. When the circuit in Figure 1 is tuned to resonant frequency, how does the voltage cross the resistor relate to the applied voltage?...
can you do 4.83 Ar- Q Sea 100 V, what does the gain become? age at...
can
you do 4.83
Ar- Q Sea 100 V, what does the gain become? age at the collector. (b) Replacing the transistor by its T model, da the small-signal equivalent circuit of the a plifier. Analyze the resulting circuit to dete mine the voltage gain t/ 04.81 Consider the CE amplifier circuit of Fig. 4.43(a). It is required to design the circuit (i.e., find values for I and Rc) to meet the following specifications: (a) R,5kn (b) the voltage gain...
please only answer Part C, all other parts is for any information you may need. -...
please only answer Part C, all other parts is for any
information you may need.
- Part = Xc, solve for the frequency. That is the resonant frequency f? Using the expressions for XL and Xc given in the introduction and setting X Express your answer in terms of L, C and any relevant constant. O AXD O2 ? Submit Request Answer The amplitude of the AC current (10) in a series LRC circuit is dependent on the amplitude of...
please answer asap Consider the circuit shown below. (Due to the nature of this problem, do...
please
answer asap
Consider the circuit shown below. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) R = 222 R = 72 V, = 4 V V = 11 V 14 R2 = 32 R = 20 12 13 (a) Find I, 12, 13, 14, and 15 (all in A). (Indicate the direction with the signs of your answers.) 11 = 0.90 ХА 12 = Iz = A...
please answer all questions neatly and use Matlab for part C Vout - - Current Source...
please answer all questions neatly and use Matlab for part C
Vout - - Current Source Current-to-Voltage Converter SkW variable voltage 0-5V Figure 4. Current- to- voltage converter 3.- Current-to-Voltage Converter An op amp can be used to produce a voltage proportional to a given current as shown in fig. 4 a) (5 points) Derive the formula for the output voltage Vout. For full credit show all the steps of the formula derivation in a clear way, and indicate which...
Do not mind the Greek Alph signs. Please explian steps and
write clearly . Many Thanks!
1. Design a circuit whose input-output characteristic is as shown in Figure 1. Slopem Slopek Ve Slope=m Figure 1 (0) Draw schematic and show the analysis that proves your design will operate as desired. You can assume that all diodes you use are ideal with a threshold of 0.7V. Take Ve = (5000+a) mV, m = (100+ By 1000 and k = 1. (4...
*****Use R = 8 ohms**********
Please answer both questions a and b.
R Q 0.1 H 100 V 1 mF HE + 30%) Find the value wo .The circuit above shows a RLC series circuit that are connected LC across the voltage source 100 V rms AC. a) By hand solve: For the value of wo find voltages and currents in L,C,R, power and power factor at the source. Scan your work and upload to D2L b) For different values...
would you like please answer all questions in part 3
THEVENIN'S THEOREM AND MAXIMUM POWER TRANSFER 131 Part 3 Maximum Power Transfer (Experimental Approach) (a) Construct the network of Fig. 11.8. Insert the measured value of each resistor R EIOV 95.732 218S2 325 2 . 424e R FIG. 11.8 Eths Vabs 6.8v Rths Resissn (b) The Thevenin equivalent circuit will now be determined for the network to the lel of the terminals a-b without disturbing the structure of the network....
please do all part a,b,c,and
d
In the image: there is a current of 0.5 (A) flowing in the circuit. A) Calculate the voltage of power supply V in the circuit. B) Show the direction of electric current in the circuit and looped wire (show in the image) C) Calculate the magnitude of the magnetic field in the center of the loop which has a radius of 20 (cm). D) Show the direction of the magnetic field in the center...
please use multisim to answer all the parts.
EXPERIMENT 3 TESTING SERIES & PARALLEL RESONANCES Objectives: To examine the conditions of resonances To observe the resonant circuit properties Equipment & components: A personal computer with Multisim software Preview questions: 1. How does the resonant frequency relate to the inductance and capacitance in a series LC circuit? 2. When the circuit in Figure 1 is tuned to resonant frequency, how does the voltage cross the resistor relate to the applied voltage?...
can
you do 4.83
Ar- Q Sea 100 V, what does the gain become? age at the collector. (b) Replacing the transistor by its T model, da the small-signal equivalent circuit of the a plifier. Analyze the resulting circuit to dete mine the voltage gain t/ 04.81 Consider the CE amplifier circuit of Fig. 4.43(a). It is required to design the circuit (i.e., find values for I and Rc) to meet the following specifications: (a) R,5kn (b) the voltage gain...
please only answer Part C, all other parts is for any
information you may need.
- Part = Xc, solve for the frequency. That is the resonant frequency f? Using the expressions for XL and Xc given in the introduction and setting X Express your answer in terms of L, C and any relevant constant. O AXD O2 ? Submit Request Answer The amplitude of the AC current (10) in a series LRC circuit is dependent on the amplitude of...
please
answer asap
Consider the circuit shown below. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) R = 222 R = 72 V, = 4 V V = 11 V 14 R2 = 32 R = 20 12 13 (a) Find I, 12, 13, 14, and 15 (all in A). (Indicate the direction with the signs of your answers.) 11 = 0.90 ХА 12 = Iz = A...
please answer all questions neatly and use Matlab for part C
Vout - - Current Source Current-to-Voltage Converter SkW variable voltage 0-5V Figure 4. Current- to- voltage converter 3.- Current-to-Voltage Converter An op amp can be used to produce a voltage proportional to a given current as shown in fig. 4 a) (5 points) Derive the formula for the output voltage Vout. For full credit show all the steps of the formula derivation in a clear way, and indicate which...
