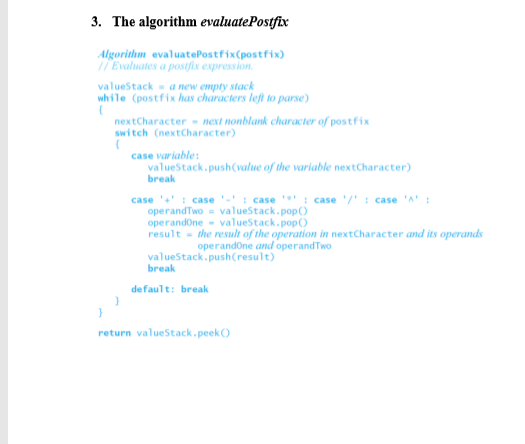

Using the algorithm evaluatePostfix, given in Segment 5.18 (or
see the algorithm evaluatePostfix in this pdf), evaluate the
following postfix expression. Assume that a = 2, b = 3, c = 4, d =
5, and e = 6.
? ? ∗ ? ? − / ? ? ∗ +
Homework Answers
a b * c a * - / d e * +
a = 2, b = 3, c = 4, d = 5, and e = 6
| value/symbol | Operation | Stack |
| a | push(2) | [2] |
| b | push(3) | [2 3] |
| * | pop();pop(); 2*3 = 6 | [6] |
| c | push(4) | [6 4] |
| a | push(2) | [6 4 2] |
| - | pop();pop(); 4-2 = 2 | [6 2] |
| / | pop();pop(); 6/2 = 3 | [3] |
| d | push(5) | [3 5] |
| e | push(6) | [3 5 6] |
| * | pop(); pop(); 5*6 = 30 | [3 30] |
| + | pop();pop(); 3 + 30 = 33 | [33] |
Answer = 33
