Homework Answers

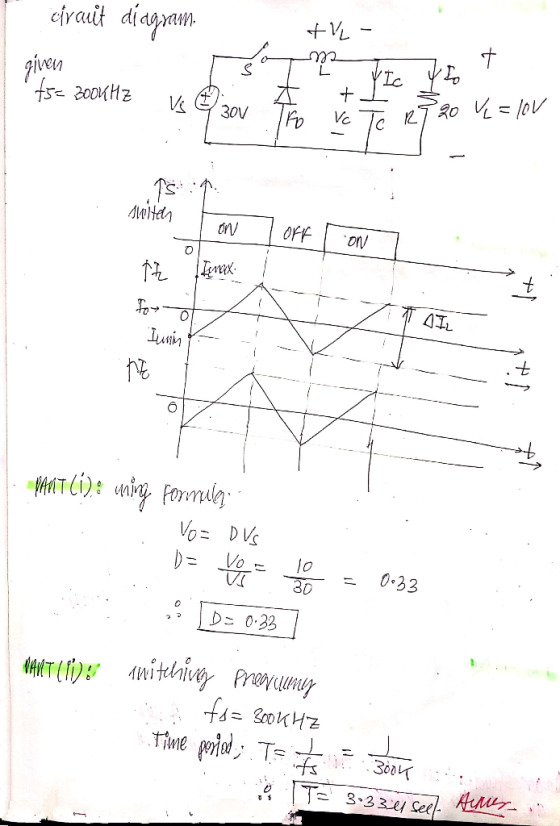

![ejrcuit diagram tv- som TIC YET 75 = 300KHz vs @30v tro vc Te RTS t + I on Vi = lov given BOOKHZ A smiten ton] Off I on 7 ft](http://img.homeworklib.com/questions/30f67e30-90c4-11eb-9fde-13c032d0c093.png?x-oss-process=image/resize,w_560)
Add Answer to:

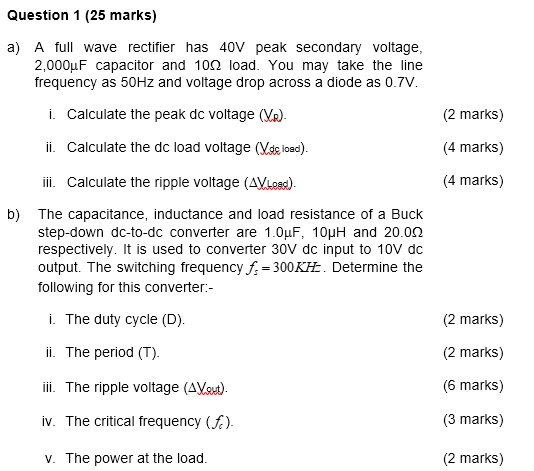

Question 1 (25 marks) a) A full wave rectifier has 40V peak secondary voltage, 2,000uF capacitor...
Capacitor is connected to secondary (1) A fullwave bridge rectifier power supply is powered from the secondary of a transformer which has a peak secondary voltage of 22V. The primary of the transforme...
Capacitor
is connected to secondary
(1) A fullwave bridge rectifier power supply is powered from the secondary of a transformer which has a peak secondary voltage of 22V. The primary of the transformer is connected to a 50Hz, 230Vus power supply. A 2700μF filter capacitor is used. A current of 1.5 Amp is drawn from the supply (i) Sketch a schematic diagram of the setup (ii) Calculate the mean dc output voltage (ii) Assume that each diode conducts for one-twelfth...
A buck converter is used to have low output voltage from the high input source to...
A buck converter is used to have low output voltage from the high input source to low output voltage. The estimated power output is at 25 kW with the switching frequency of 25 kHz. Design the buck converter as by finding and following specifications consider the ripple of the output is set at 1% (i) Calculate the duty ratio of the buck converter (1 mark) (ii) Determine the minimum requirement for the inductor and the capacitor (5 marks) (iii) Determine...
please explain Name(s): the ripple voltage for the cir i) Approximate formulas for the peak rectifier...
please explain
Name(s): the ripple voltage for the cir i) Approximate formulas for the peak rectifier (e.g., see the textbook). Assume the 0.7V diode; (ii) Transient simulation using Multisim with the IN5393GP diode. Show the output voltage plot. The circuit consists of a 5uF capacitor, IkOhm resistor, diode, and source. The source voltage is a periodic triangular waveform with the 10V amplitude, zero DC offset, the 1 ms period and the 0.5 ms rise/fall time
please help me answer 100% correct answer. very important hand writing must be clear and easy...
please help me answer 100% correct answer. very important hand
writing must be clear and easy to read
b) The capacitance, inductance and load resistance of a Boost step-up dc-to-dc converter are 1.0μF, 10μΗ and 20.0Ω respectively. It is used to converter 10V dc input to 30V dc output. The switching frequency f,-500 KHz. Determine the following for this converter:- i. The duty cycle (D) ii. The period (T). li. The ripple voltage (AVou). iv. The critical frequency (). v....
Q1. (a) Draw the voltage-current characteristic curve of the GTO, and explain its operating principle. What...
Q1.
(a) Draw the voltage-current characteristic curve of the GTO, and
explain its operating principle. What are the typical ranges of the
turn off gain and the switching frequency of the GTO?
(b) MAX724 buck converter is shown in Figure Q1. The input
voltage is chosen as 25V, and the switching frequency is 100
?HZ.
(i) Calculate the duty cycle, peak-to-peak inductor ripple current,
and peak-to-peak output ripple voltage.
(ii) Calculate the minimal load current such that the inductor
current...
Design a boost converter power stage to the following specification: Input voltage Output voltage: Output voltage...
Design a boost converter power stage to the following specification: Input voltage Output voltage: Output voltage ripple:max 20mV Load power: Switching frequency: 15kHz 110-125V 300V 1.5kW Calculate: (i) Maximum duty cycle (ii) Minimum duty cycle (iii) Average diode current (iv) Assuming the Rds(on) of the MOSFET is 0.01 Ω, and the diode forward voltage is 0.8V, calculate the approximate efficiency of the circuit. 2. A switching power supply shown in the circuit below has its switch driven by a signal...
Please help me answer 100 correctly i am sending this question for 3rd time but i...
Please help me answer 100 correctly i am sending this question
for 3rd time but i didnt get proper answer please help me answer
with formula and explanation . please make sure hand writting can
read easy. if can please type ur answer. please help me.
b) The capacitance, inductance and load resistance of a Boost step-up dc-to-dc converter are 1.0μF, 10μΗ and 20.0Ω respectively. It is used to converter 10V dc input to 30V dc output. The switching frequency...
Buck Converter Question Q3. A Buck converter is used to produce a regulated 10V, 5A DC...
Buck Converter Question
Q3. A Buck converter is used to produce a regulated 10V, 5A DC power supply from a variable DC source with an nominal input voltage of Vin = 20V±5V. The Buck converter switches at 250kHz, and operates entirely in the continuous conduction mode. The output filter capacitance is C1.0uF 3.a. Draw the circuit topology for the Buck converter. Ensure that your circuit includes the input DC source, the output load resistance, the switching devices (i.e. MOSFET and...
18 marks load with a power of 25.6 W.The cy f is 40kHz. sign a buck-boost converter to produce an output voltage of 16V a put voltage ripple must not exceed 1%. The dc input voltage is 24V. Th e swit...
18 marks load with a power of 25.6 W.The cy f is 40kHz. sign a buck-boost converter to produce an output voltage of 16V a put voltage ripple must not exceed 1%. The dc input voltage is 24V. Th e switching frequen 121 a) the duty ratio b) Find the size of the inductor so that the maximum inductor current c) the size of the capacitor d) Assume L=1 00μH and the switching frequency fis variable. 141 121 Lma 10A...
6. A buck-boost chopper supplies power to a load having 1.52resistance and 0.8mH inductance The source...
6. A buck-boost chopper supplies power to a load having 1.52resistance and 0.8mH inductance The source voltage is 50V DC and the load voltage is 75 V. If the on time is 1.5msec, find a. The chopper switching frequency b. Imax and Imin c. The average value of the input current d. The average value of the diode current e. The peak-peak ripple in the input current (8 Marks)
Capacitor
is connected to secondary
(1) A fullwave bridge rectifier power supply is powered from the secondary of a transformer which has a peak secondary voltage of 22V. The primary of the transformer is connected to a 50Hz, 230Vus power supply. A 2700μF filter capacitor is used. A current of 1.5 Amp is drawn from the supply (i) Sketch a schematic diagram of the setup (ii) Calculate the mean dc output voltage (ii) Assume that each diode conducts for one-twelfth...
A buck converter is used to have low output voltage from the high input source to low output voltage. The estimated power output is at 25 kW with the switching frequency of 25 kHz. Design the buck converter as by finding and following specifications consider the ripple of the output is set at 1% (i) Calculate the duty ratio of the buck converter (1 mark) (ii) Determine the minimum requirement for the inductor and the capacitor (5 marks) (iii) Determine...
please explain
Name(s): the ripple voltage for the cir i) Approximate formulas for the peak rectifier (e.g., see the textbook). Assume the 0.7V diode; (ii) Transient simulation using Multisim with the IN5393GP diode. Show the output voltage plot. The circuit consists of a 5uF capacitor, IkOhm resistor, diode, and source. The source voltage is a periodic triangular waveform with the 10V amplitude, zero DC offset, the 1 ms period and the 0.5 ms rise/fall time
please help me answer 100% correct answer. very important hand
writing must be clear and easy to read
b) The capacitance, inductance and load resistance of a Boost step-up dc-to-dc converter are 1.0μF, 10μΗ and 20.0Ω respectively. It is used to converter 10V dc input to 30V dc output. The switching frequency f,-500 KHz. Determine the following for this converter:- i. The duty cycle (D) ii. The period (T). li. The ripple voltage (AVou). iv. The critical frequency (). v....
Q1.
(a) Draw the voltage-current characteristic curve of the GTO, and
explain its operating principle. What are the typical ranges of the
turn off gain and the switching frequency of the GTO?
(b) MAX724 buck converter is shown in Figure Q1. The input
voltage is chosen as 25V, and the switching frequency is 100
?HZ.
(i) Calculate the duty cycle, peak-to-peak inductor ripple current,
and peak-to-peak output ripple voltage.
(ii) Calculate the minimal load current such that the inductor
current...
Design a boost converter power stage to the following specification: Input voltage Output voltage: Output voltage ripple:max 20mV Load power: Switching frequency: 15kHz 110-125V 300V 1.5kW Calculate: (i) Maximum duty cycle (ii) Minimum duty cycle (iii) Average diode current (iv) Assuming the Rds(on) of the MOSFET is 0.01 Ω, and the diode forward voltage is 0.8V, calculate the approximate efficiency of the circuit. 2. A switching power supply shown in the circuit below has its switch driven by a signal...
Please help me answer 100 correctly i am sending this question
for 3rd time but i didnt get proper answer please help me answer
with formula and explanation . please make sure hand writting can
read easy. if can please type ur answer. please help me.
b) The capacitance, inductance and load resistance of a Boost step-up dc-to-dc converter are 1.0μF, 10μΗ and 20.0Ω respectively. It is used to converter 10V dc input to 30V dc output. The switching frequency...
Buck Converter Question
Q3. A Buck converter is used to produce a regulated 10V, 5A DC power supply from a variable DC source with an nominal input voltage of Vin = 20V±5V. The Buck converter switches at 250kHz, and operates entirely in the continuous conduction mode. The output filter capacitance is C1.0uF 3.a. Draw the circuit topology for the Buck converter. Ensure that your circuit includes the input DC source, the output load resistance, the switching devices (i.e. MOSFET and...
18 marks load with a power of 25.6 W.The cy f is 40kHz. sign a buck-boost converter to produce an output voltage of 16V a put voltage ripple must not exceed 1%. The dc input voltage is 24V. Th e switching frequen 121 a) the duty ratio b) Find the size of the inductor so that the maximum inductor current c) the size of the capacitor d) Assume L=1 00μH and the switching frequency fis variable. 141 121 Lma 10A...
6. A buck-boost chopper supplies power to a load having 1.52resistance and 0.8mH inductance The source voltage is 50V DC and the load voltage is 75 V. If the on time is 1.5msec, find a. The chopper switching frequency b. Imax and Imin c. The average value of the input current d. The average value of the diode current e. The peak-peak ripple in the input current (8 Marks)
